ABB | SACE Emax 2
Electrical accessories | 1 - Electrical control accessories251 | © 2017 ABB | 1SDH001330R0002 - ECN000058721 Rev. A
Continued from the previous page
The tables listing the available voltages and the electrical characteristics are provided below:
Available voltages (Un)
24 V AC/DC
30 V AC/DC
48 V AC/DC
60 V AC/DC
110…120 V AC/DC
220…240 V AC/DC
240...250 V AC/DC
277 V AC/DC
380…400 V AC
415…440 V AC
480…500 V AC
General characteristics YU
Inrush power (Ps) 300 VA/W
Continuous power (Pc) 3.5 VA/W
Opening time 50 ms
YU: Connections
Further information is available on page 174, or on the website http://www.abb.com/abblibrary/
DownloadCenter/, where the wiring diagram is available 1SDm000091r0001.
Information on the assembly is available on the website http://www.abb.com/abblibrary/DownloadCenter/,
in particular for E1.2 in the kit sheet 1SDH000999r0504 and for E2.2-E4.2-E6.2 in the kit sheet
1SDH001000r0504.

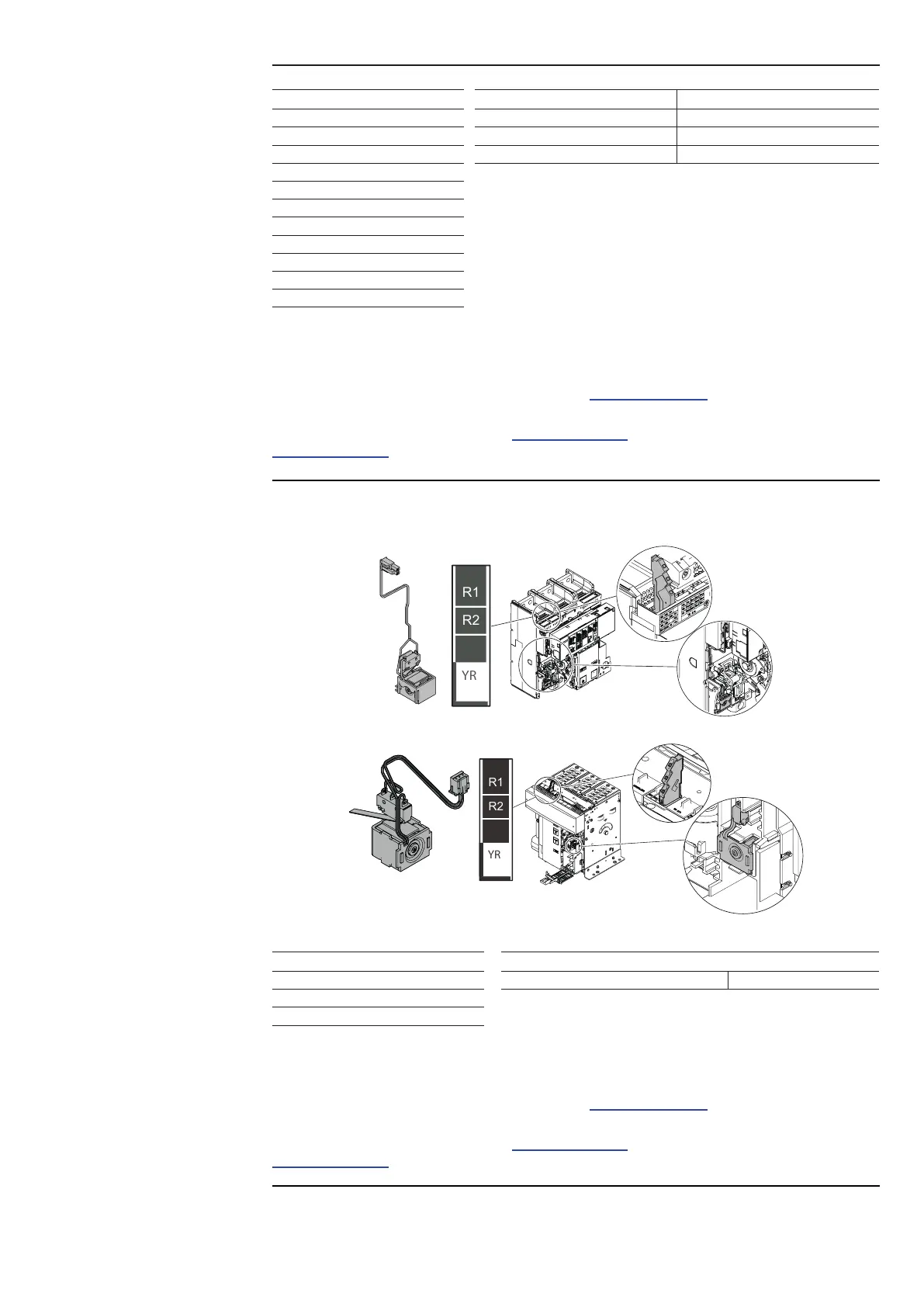

YR: Remote resetting coil
The remote resetting coil deactivates the lock at the closing of the circuit-breaker, generated by the opening
of the circuit-breaker caused by tripping of the Ekip protection trip unit.
R2
R1
YR
YR for E1.2
R2
R1
YR
YR for E2.2 - E4.2 - E6.2
The tables listing the available voltages and the electrical characteristics are provided below:
Available voltages (Un)
24 V AC/DC
110 V AC/DC
220 V AC/DC
General characteristics
Operating limits 90...110 %Un
YR: Connections
Further information is available on page 174, or on the website http://www.abb.com/abblibrary/
DownloadCenter/, where the wiring diagram is available 1SDm000091r0001.
Information on the assembly is available on the website http://www.abb.com/abblibrary/DownloadCenter/,
in particular for E1.2 in the kit sheet 1SDH000999r0606 and for E2.2-E4.2-E6.2 in the kit sheet
1SDH001000r0606.
