ABB | SACE Emax 2

Programmable States

There are sixteen independent programmable states identiﬁed by the letters A, B, C, D, E, F, G, H, I, L, M, N,

O, P, Q, R, offering different solutions for event control.

The value of each programmable state can be either "True" or "False". Different conﬁguration parameters are

available:

• Trigger: event or combination of more events of state activation (up to 24, in AND or OR logic conﬁguration).

• On Delay: state activation delay calculated from trigger presence onwards.

• Off Delay: state de-activation delay calculated from trigger absence onwards.

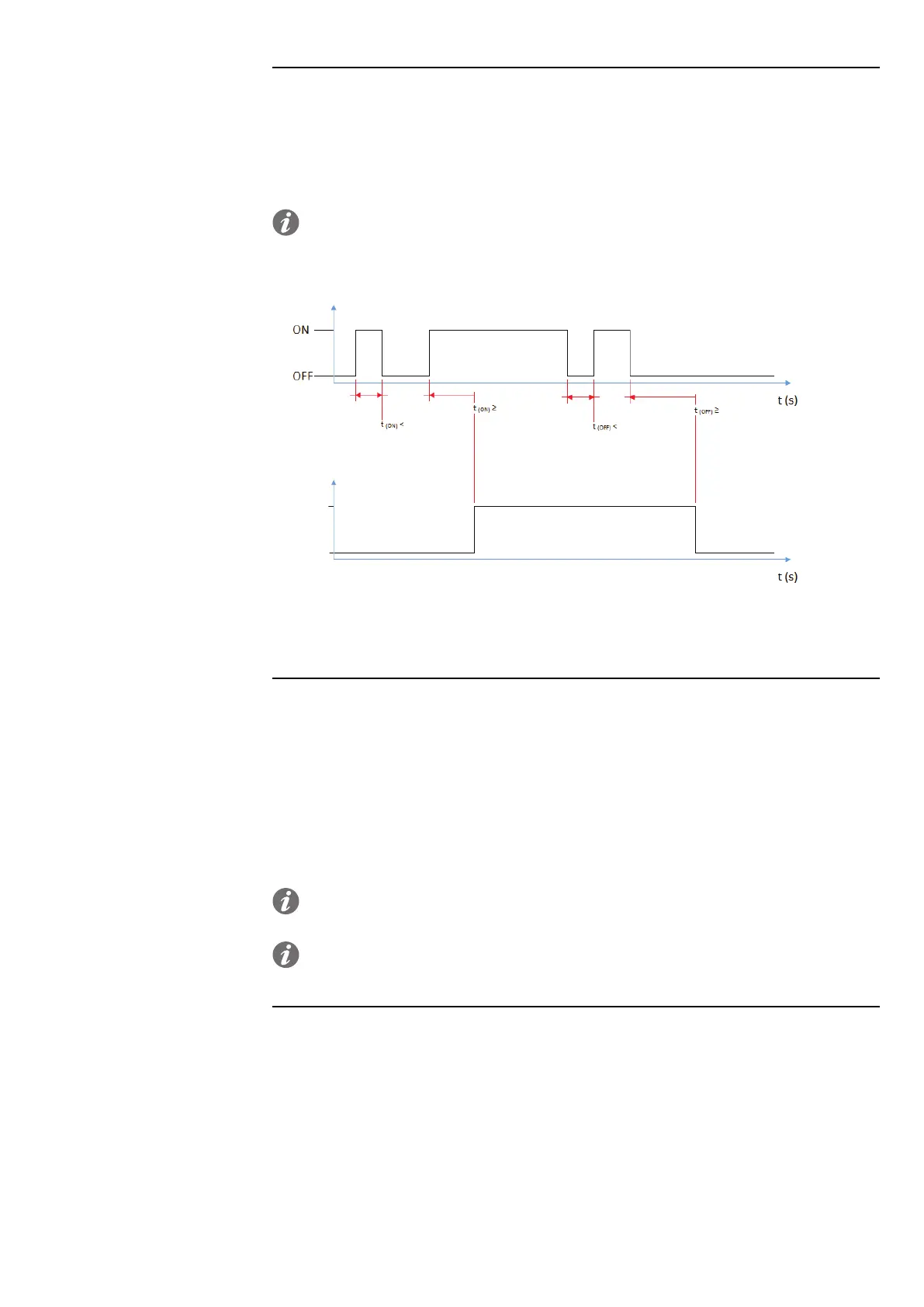

NOTE: the state become activate if the trigger is present for longer than the On delay setting

and become inactive if the trigger is absent for longer than the Off delay setting.

TRUE

FALSE

Trigger State

Programmable State

Delay ON

Delay OFF

The states can be used with the external Ekip Signalling 10K module, on Link Bus or with the programmable

functions, to transfer the desired signalling combination on contacts.

Programmable Functions

Ekip Dip allows you to program ﬁve commands so that they are automatically activated according to the

signalling state or the events selected by the user. The commands are:

• Trip

• Reset of the trip signal.

• Reset signalling contacts of the Ekip Signalling 10K module.

• Opening coil command (YO).

• Closing coil command (YC).

Each command provides two programming parameters:

• Activation function: event or events (up to eight, in logical AND or OR conﬁguration) that activate the

command.

• Delay: command sending delay, calculated starting from the occurrence of the activation event.

NOTE: the command is sent if the event is present for a time greater than the delay that has

been set.

NOTE: the YO and YC commands are possible only if the coils and Ekip Actuator are present,

and if all the operating conditions exist (see page 118).
