ABB | SACE Emax 2
46 | © 2017 ABB | 1SDH001330R0002 - ECN000058721 Rev. A Ekip Touch protection trip unit | 6 - Menu
6 - Menu
Introduction
This paragraph illustrates:
• Menu page.
• The structure of the menus.
• How to navigate among the menus
The Menu page is the menu access page.
The menus are the level 3 pages that can be displayed on display (see the chapter “1 - Layout of the
interface" and the paragraph "Structure of the pages" on page 38), and they include lists of:
• Submenus.
• Parameters that can be set.
• Commands that can be performed.
Selecting a menu item can:
• Open a submenu.
• Open the page Modify Parameter to set a parameter.
• Display scrollable lists of information (example: on circuit-breaker, trip unit, connected electronic accessories),
real-time measurements, recorded events.
• Open a graphical page (secondary).
• Perform a command (example: reset or test).

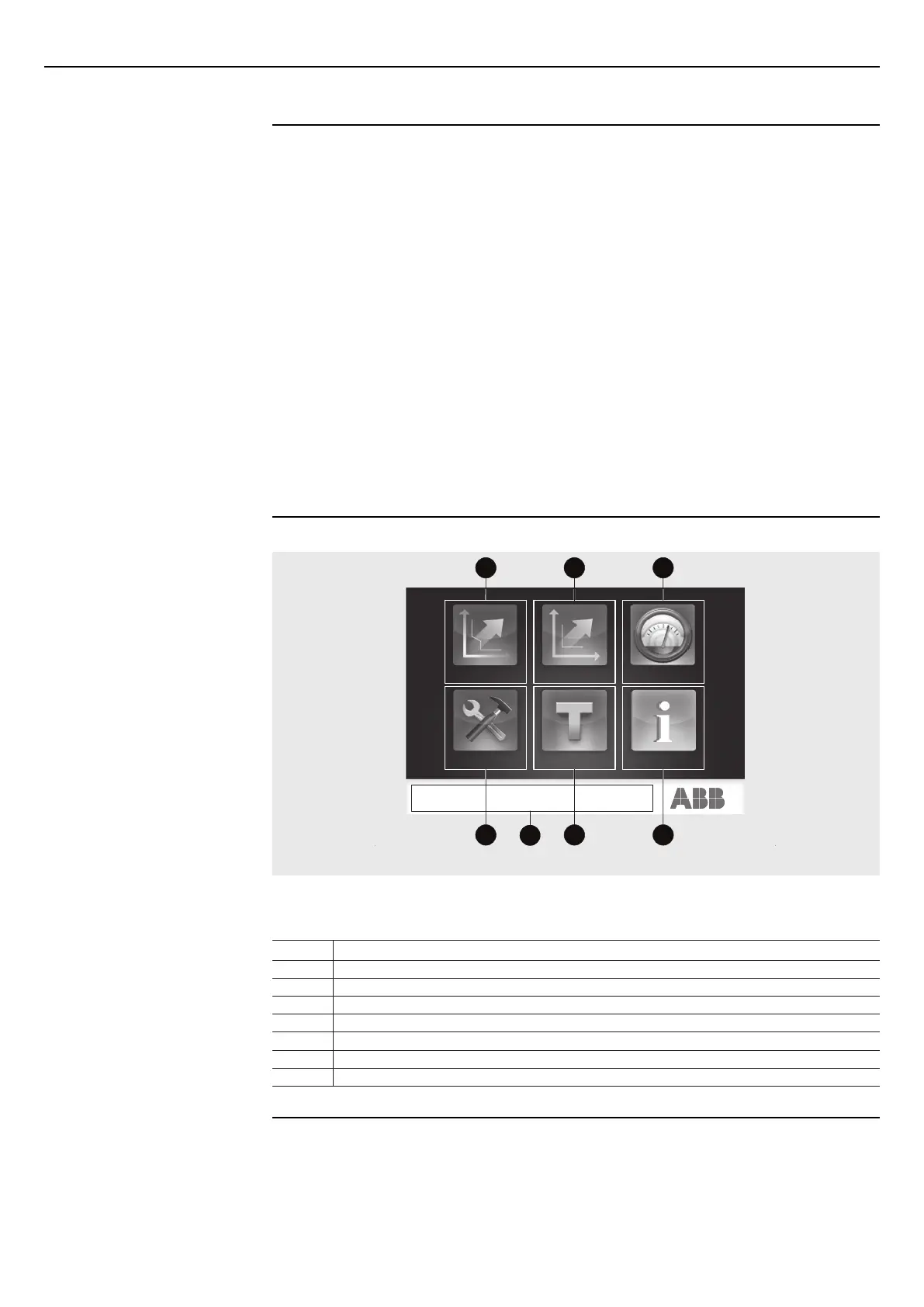

Components of the page
The page appears as follow:
A B
C
D E
F
G
Protections Advanced Measurements
Settings Test About
Figure 11
The following table provides a description of the various areas of the page:
Pos. Function
A It opens the Protections menu.
B It opens the Advanced menu.
C It opens the Measurements menu.
D It opens the Settings menu.
E It opens the Test menu.
F It opens the About menu.
G In the presence of messages, it opens the Alarm List page.
