20.Toothed thrust washer.
21.Circlip.
22.Fourth gear.
23.Floating bushing for fourth gear.
24.Floating bushing for third gear.
25.Third gear.
26.Toothed thrust washer.
27.Circlip.
28.Sixth gear.
29.Circlip.
30.Floating bushing for second gear.
31.Toothed thrust washer.
32.Second gear.
33.Transmission shaft.
Gearbox shafts

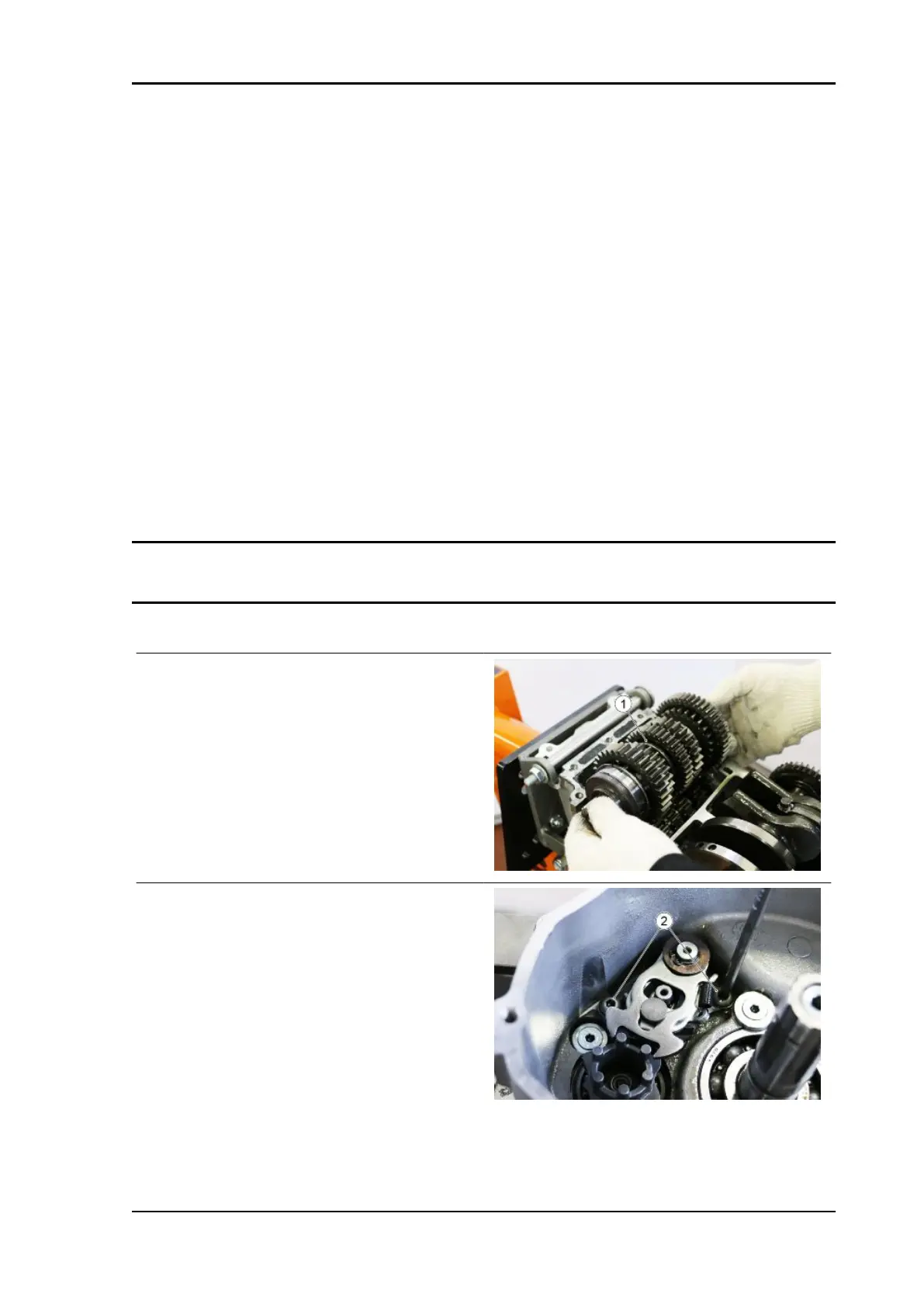

Disassembling the gearbox
To proceed with the disassembly of the gearbox it
is necessary to remove the upper crankcase and
then proceed as follows:
•
Remove the transmission shaft (1)
along with the oil seal.
•
Remove the two screws (2) that fasten
the retention plate of the selector shaft.
RS 660 - Tuono 660 Engine
ENG - 127
