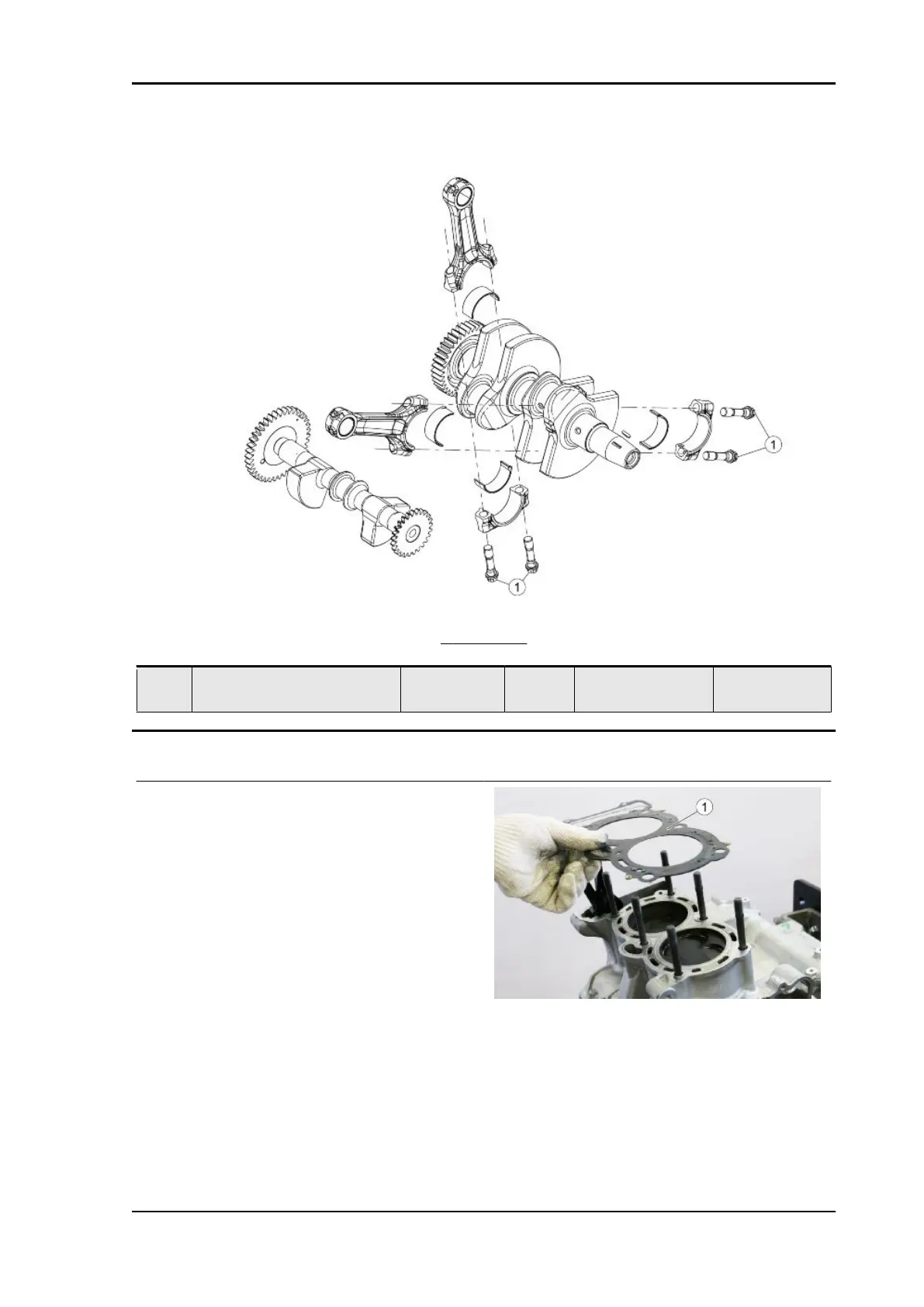

Cylinder-piston assembly
C
RANKSHAFT
Pos.
Description
Type
Quantity
Torque
Notes
1
Connecting rod screws
M
4
1) 15 Nm (11,06 lbf ft) -
2) 20 Nm+110° (14,75
lbf ft+110°)
Lubricate with Pankl
oil
Installing the cylinder head
To proceed with the installation of the head, pro-
ceed as described:
•
Insert the gasket (1).
RS 660 - Tuono 660
Engine
ENG - 219
218
220
