Electrical system installation
Scope and applicability
This document defines the position of the vehicle wiring harness, how it is routed and fixed to the
chassis, instrument holder arch brace and saddle post, any problems and special checks to be made
on the cable connections and routing in order to achieve vehicle reliability.
Materials used and corresponding quantities
The electrical system consists of the following wiring harnesses and parts:
Vehicle side:
•
1 x Main vehicle wiring harness
•
1 x License Plate Holder wiring harness
•
1 x Engine-Battery Earth Cable
•
8 x Edge clip Sheet Ø10mm
•
1 x Edge clip Sheet Ø20mm
•
2 Connector supports. AMP
•
1 x ABS sensor support
•
1 x Horn cables grommet
•
1 x Instrument Cluster cable grommets clamp
Engine side:
•
1 x Engine cable harness.
•
4 x Edge clip Sheet Ø10mm.
•
2 x Edge clip Sheet Ø20mm.
•
1 x Tyco connector support.
Small parts and mountings
Vehicle side:
•
3 x Small black 160x2.5 clamps
Engine side:
•
1 x Large black 290x4 clamps.

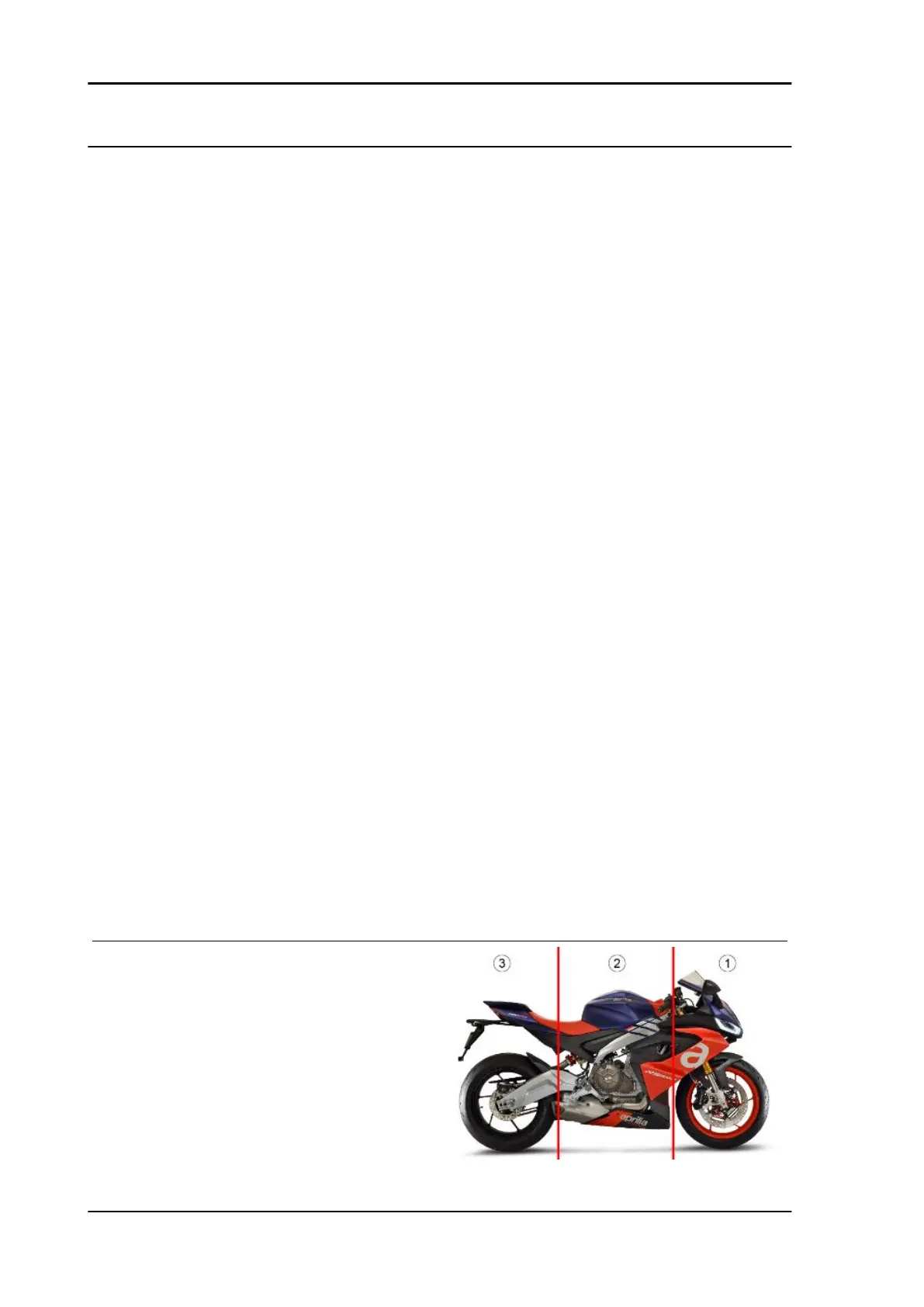

Motorcycle division
The wiring harnesses on the vehicle are subdivi-
ded into three main sections, as indicated in the
figure.
1. Front of vehicle
2. Centre of vehicle
3. Rear section
Special checks for the correct connection and routing of cables
Electrical system RS 660 - Tuono 660
ELE SYS - 90
