Gear selector

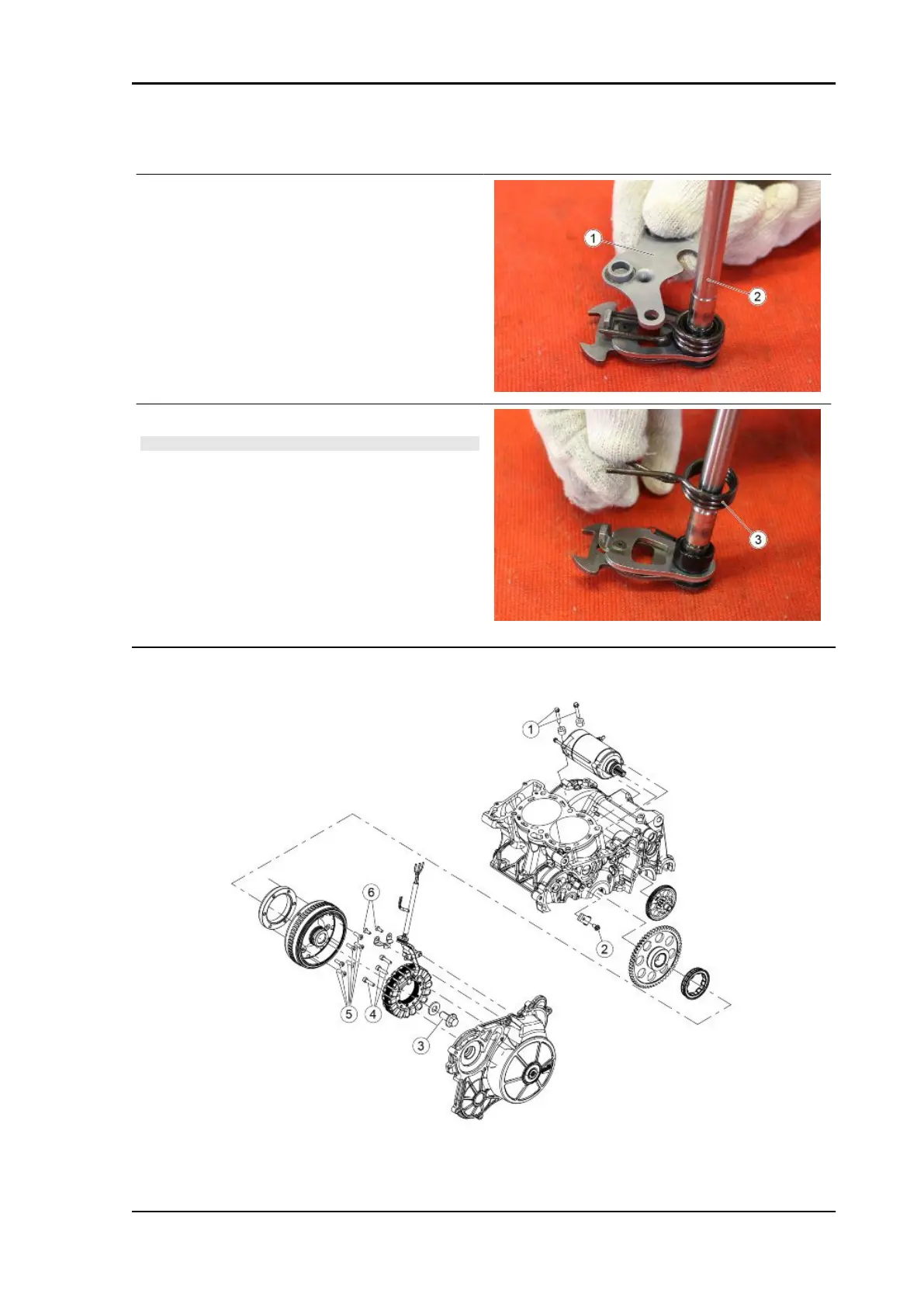

After removing the gear selector shaft from its
seat, it can now be broken down as described:
•
Remove the retaining plate (1) by slid-
ing it off the selector shaft (2) after
turning it.
•
Remove the spring (3).
CAUTION
PAY PARTICULAR ATTENTION TO THE CORRECT POSI-
TIONING DURING THE REASSEMBLY PHASE.
Starter motor
RS 660 - Tuono 660
Engine
ENG - 145
144
146
Table of Contents
