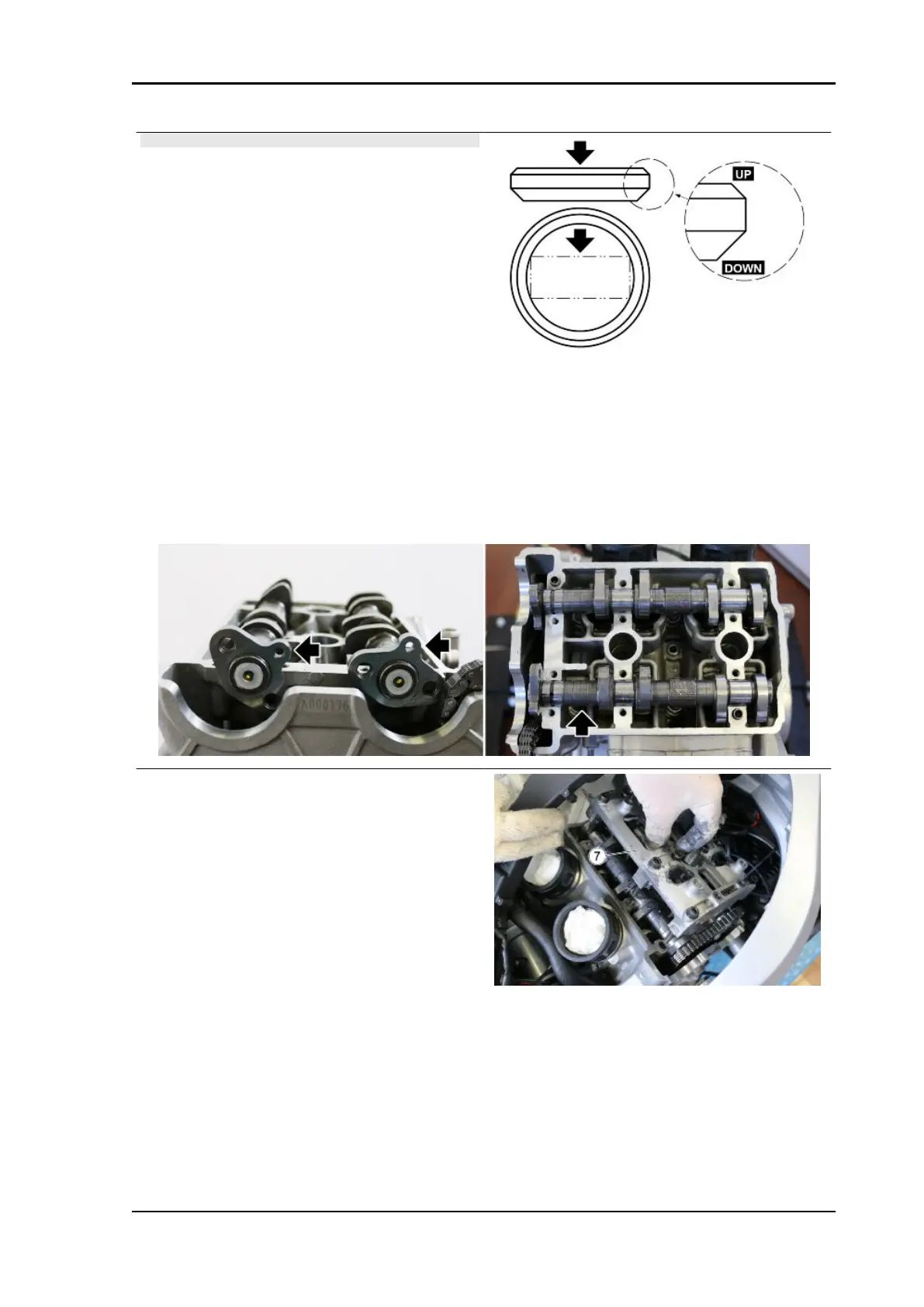

CAUTION
THE CALIBRATED PAD MUST BE ASSEMBLED KEEPING
THE PRINTING OF THE THICKNESS UPWARDS.
COMPONENTS INSTALLATION
•
After lubricating the bucket tappets, the rotation seats of the camshafts and the shafts them-
selves, position them on the head. The exhaust camshaft has two grooves in the indicated
point. (lubricate with MOLYKOTE G-RAPID PLUS).
•
The correct positioning is determined by the holes, for the insertion of the pins, facing up-
wards.
•
Position the cam tower (7) complete
with fixing screws, with the exception
of the two that will subsequently fix the
upper slider.
RS 660 - Tuono 660 Maintenance
MAIN - 73
