Check coils 1 and 2 connection.
•
Check Purge Valve connection.
•
Check Map Sensor connection.
CAUTION
THESE CONNECTORS HAVE BEEN LISTED AS THEY ARE MORE CRITICAL THAN OTHERS,
AND THEIR DISCONNECTION MAY CAUSE VEHICLE BREAKDOWN OR MALFUNCTION. NAT-
URALLY, IT IS ALSO NECESSARY THAT ALL OTHER CONNECTORS CONNECTED CORRECTLY
TO ENSURE THAT THE VEHICLE FUNCTIONS CORRECTLY. THE INSTRUCTIONS FOR ROUT-
ING AND FASTENING THE WIRING HARNESS THROUGHOUT THE VEHICLE MUST BE FOL-
LOWED PRECISELY TO ENSURE THAT THE VEHICLE FUNCTIONS CORRECTLY AND
RELIABLY.
Front side

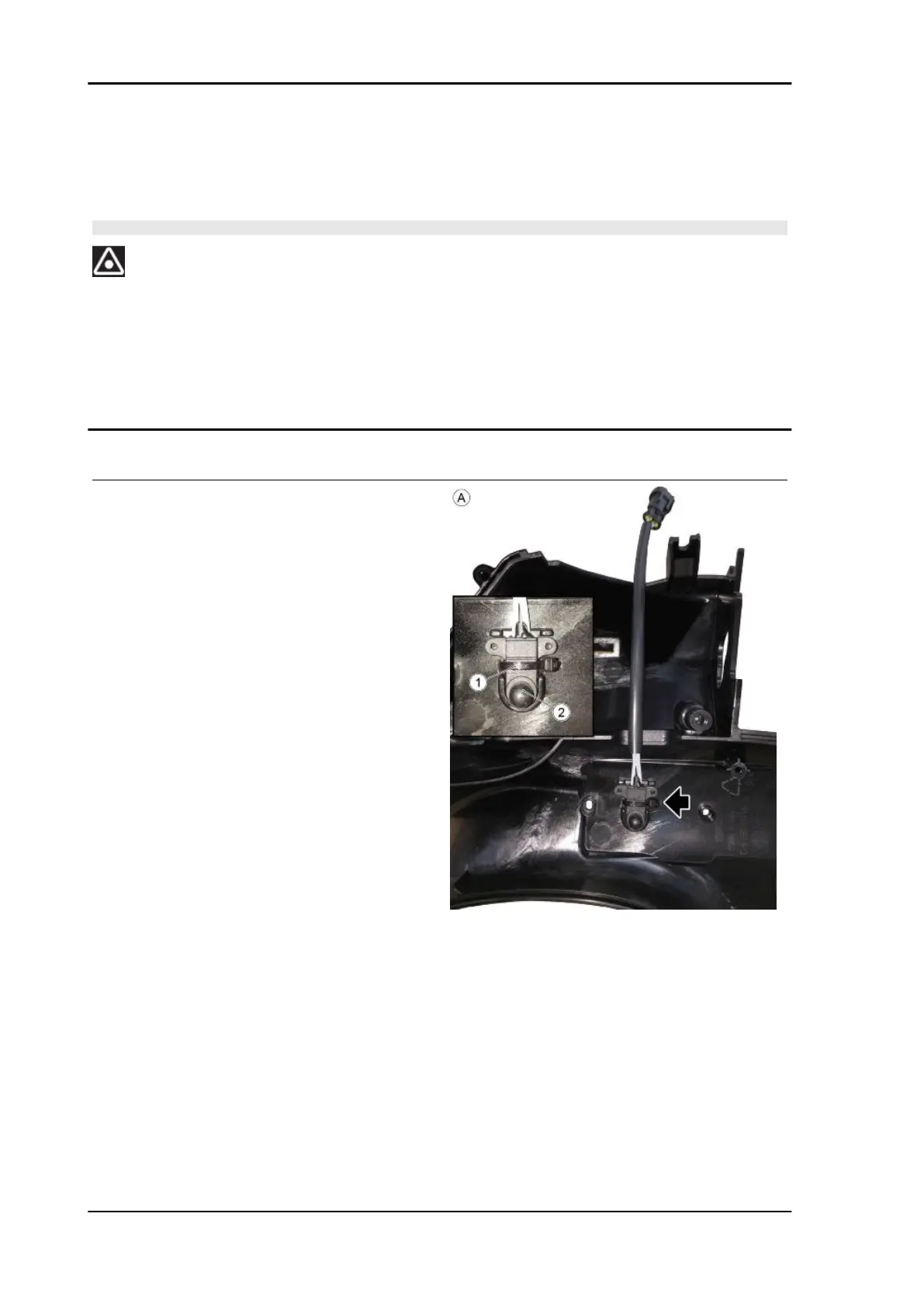

TABLE A - PRE-ASSEMBLY OF THE EXTER-
NAL AIR TEMPERATURE SENSOR
•
Using a small clamp (1) fasten the ex-
ternal air temperature sensor (2) to the
right instrument support, at the point
indicated.
Electrical system RS 660 - Tuono 660
ELE SYS - 92
