CHECK THAT NO COMPONENT IS NOTICEABLY DISTORTED, DAMAGED, CRACKED AND/OR
DENTED.
REPLACE ALL DAMAGED COMPONENTS.
ROLLER CASINGS
Turn the roller casings manually; they must rotate smoothly, continuously and silently.
There must be no axial clearance.
Replace the roller casings that present these problems.
Apply grease on the rollers.
GASKETS
Check that the gaskets are in good conditions; replace them if they show signs of damage or excessive
wear.

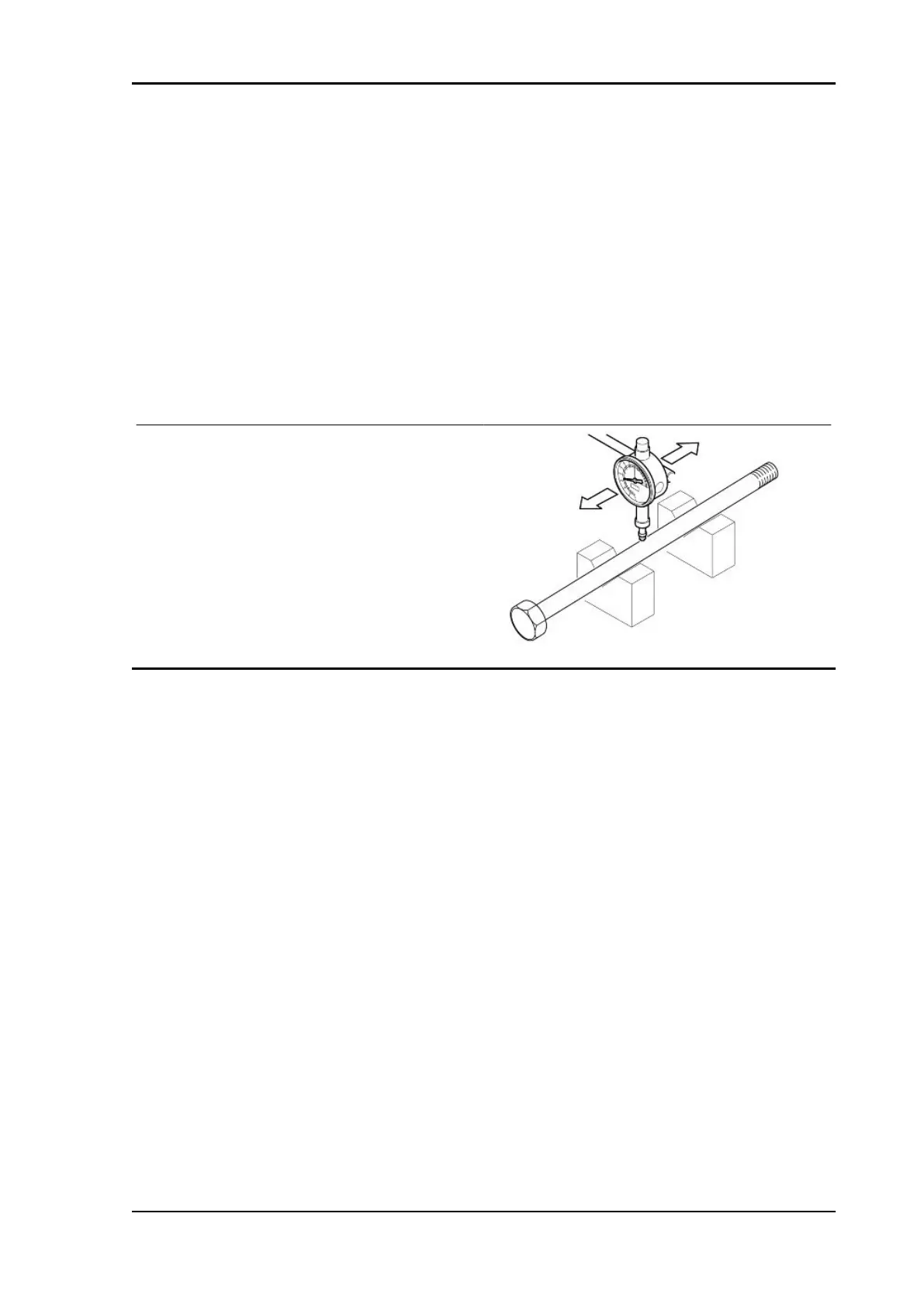

PERNO FORCELLONE
Con un comparatore controllare che l'eccentricita'
del perno non superi il valore limite. In caso con-
trario sostituire il perno.
Eccentricita' massima del perno: 0,2 mm
(0.0078 in).
Installing
To proceed with the installation of the swingarm, proceed as described:
•
If the roller bearings have been removed during the disassembly phase for a check or re-
placement, proceed with the insertion by means of a special punch, respecting the following
measurements, after having greased the contact parts:
LEFT SIDE:
•
The roller bearing (1) must be positioned at a depth of 6 mm (0.023 in) from the outer surface.
•
The roller bearing (2) must be positioned at a depth of 6 mm (0.023 in) from the inner surface.
RIGHT SIDE:
•
The roller bearing (3) must be positioned at a depth of 15 mm (0.59 in) from the outer surface.
RS 660 - Tuono 660 Chassis
CHAS - 301
