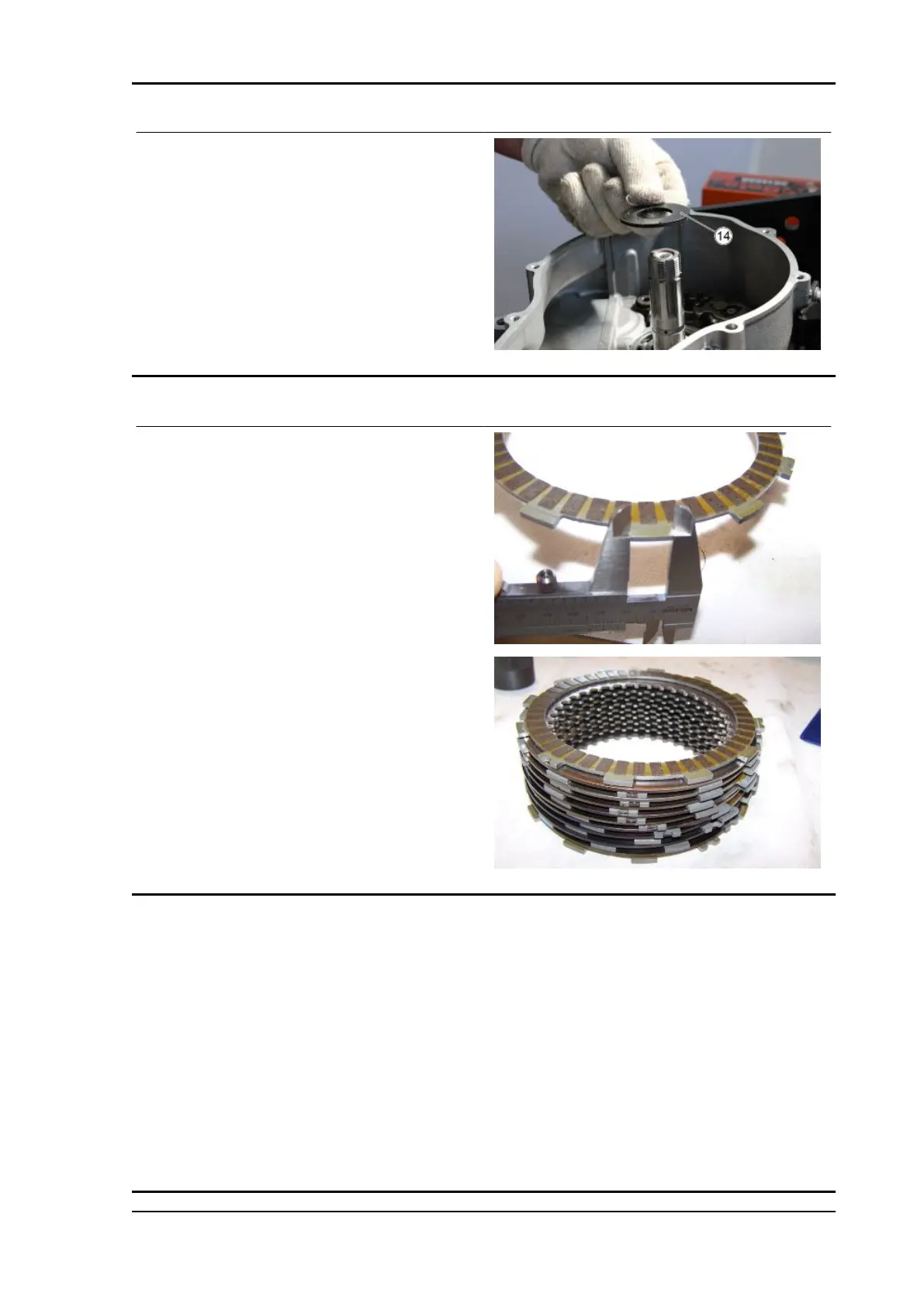

Remove the washer (14).
Checking the clutch plates
Characteristic
Maximum warping of clutch plates (deforma-
tion relative to flat surface)
0.15 mm (0.0059 in)
Minimum wear limit of the clutch plate sliding
teeth
13.5 mm (0.53 in)
Minimum wear limit of the complete clutch
pack thickness (friction discs + steel discs)
47.6 mm (1.87 in)
Checking the clutch housing
Check the clutch bell for damage and wear that may result in clutch irregular operation. If necessary,
replace the bell.
Check the riveted joint between the clutch housing and the primary drive sprocket for correct sealing
and evenness.
Check the primary driven gear for damage and wear and, if necessary, replace the primary driven gear
and the clutch bell all together.
Make sure there is not excessive noise during operation; if necessary, replace the primary drive gear
and the clutch bell all together.
RS 660 - Tuono 660 Engine
ENG - 175
