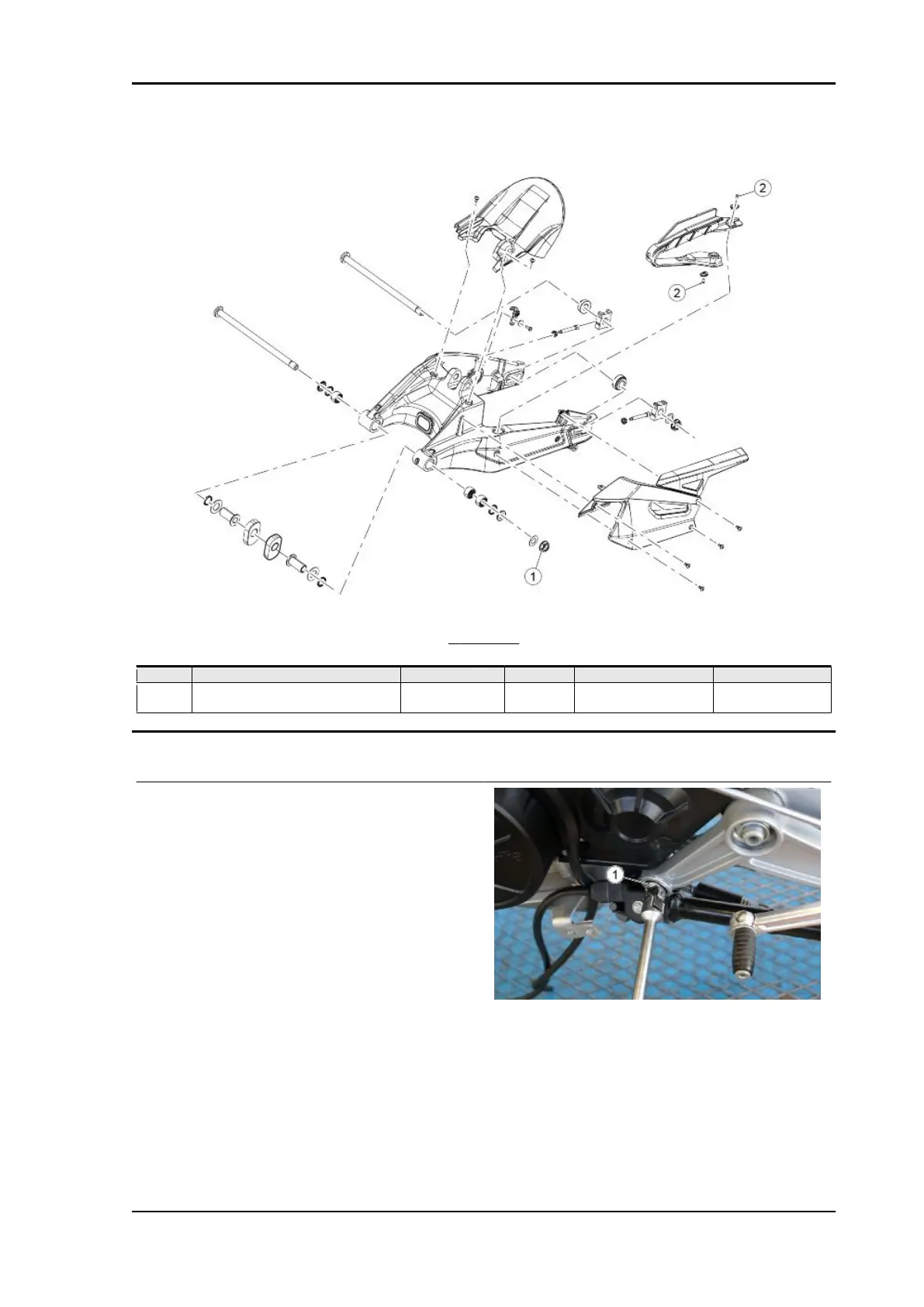

Swinging arm
SWINGARM
Pos. Description Type Quantity Torque Notes
1 Swingarm pivot bolt self-locking nut M16 1 110 Nm (4.33 lbf ft) -
2 Chain feeder shoe SHC flanged fas-
tening screws
M5x16 2 2 Nm (1.47 lb ft) -
Removing
Place the motorcycle on the central stand and se-
cure it using a lifting jack, in order to be able to
keep the rear part raised when removing the
swingarm.
To proceed with the removal of the swingarm, it is
necessary to first remove the rear wheel, rear
mudguard and crankcase cover.
•
Then remove the screw (1), with its
spring washer, which fixes the left rider
footrest support to the engine.
RS 660 - Tuono 660 Chassis
CHAS - 297
