Place the connector on the opposite
side of the control unit and lower the
driving lever until the "click" that signals
the end of the stroke is heard.
•
When the connector is fully inserted,
the distance between the connector
and the ABS control unit must be 7.5
mm.
•

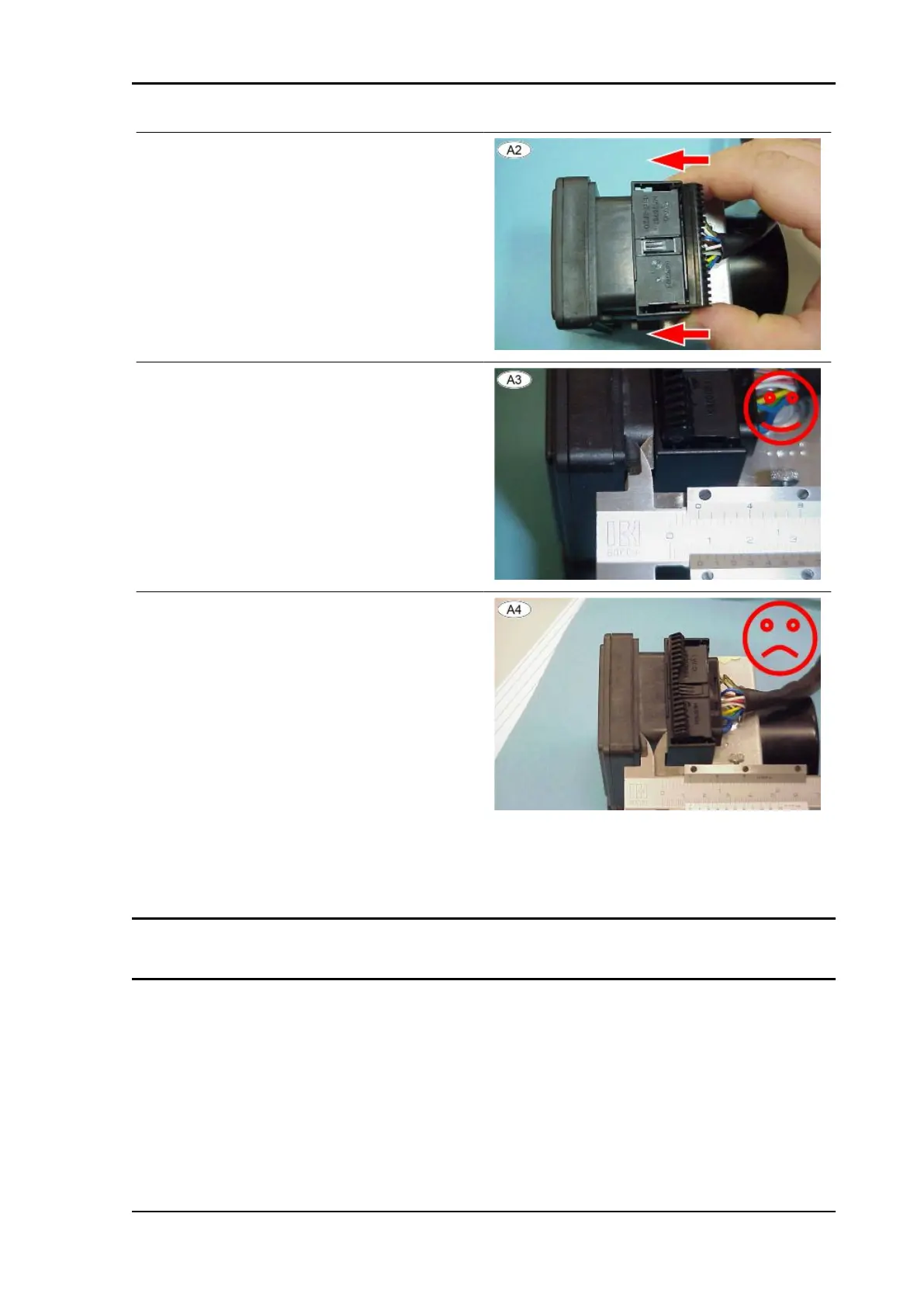

If the initial position of the connector
and of the driving lever is not as shown
in the "A1" image, the connector will
not engage properly and the measured
distance will be greater (approximately
12 mm).
•
In this case, repeat the operation as
described in the A2/A3 images.
•
We recommend creating a template in
order to ensure that the connector is
inserted correctly.
Rear brake calliper
RS 660 - Tuono 660 Braking system
BRAK SYS - 343
