FLYWHEEL - IGNITION
Pos. Description Type Quantity Torque Notes
1 Starter motor fastening screws M6x35 2 12 Nm (8.85 lbf ft) -
2 Starter ring gear containment plate
fastening screw
M6x35 1 12 Nm (8.85 lbf ft) -
3 Rotor fastening screw M14x30 1 195 Nm (143,82 lbf ft) -
4 Stator SHC fixing screws M6x30 3 10 Nm (7.38 lbf ft) Pre-impregnated
5 Free wheel on rotor SHC fixing
screws
M6x18 3 14 Nm (10.33 lbf ft) Pre-impregnated
6 Stator wiring harness support plate
fixing screws
M5x14 2 3 Nm (2.21 lbf ft) Pre-impregnated

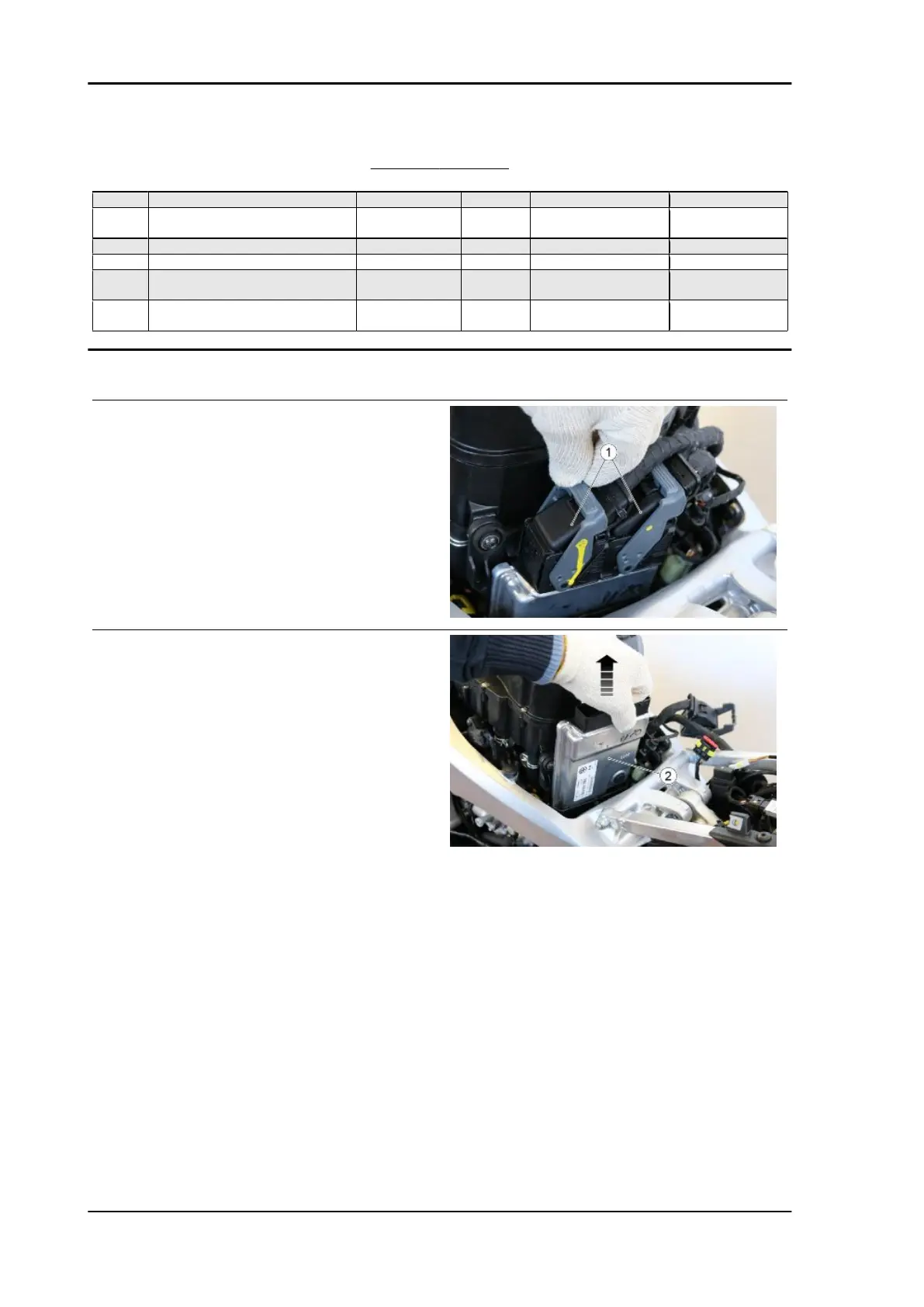

Removing the starter motor
To remove the starter motor it is necessary to first
remove the control unit complete with support,
proceeding as described:
•
Disconnect the connectors (1) from the
control unit.
•
Remove the control unit (2) from the
support.
Engine RS 660 - Tuono 660
ENG - 146
