Water pump

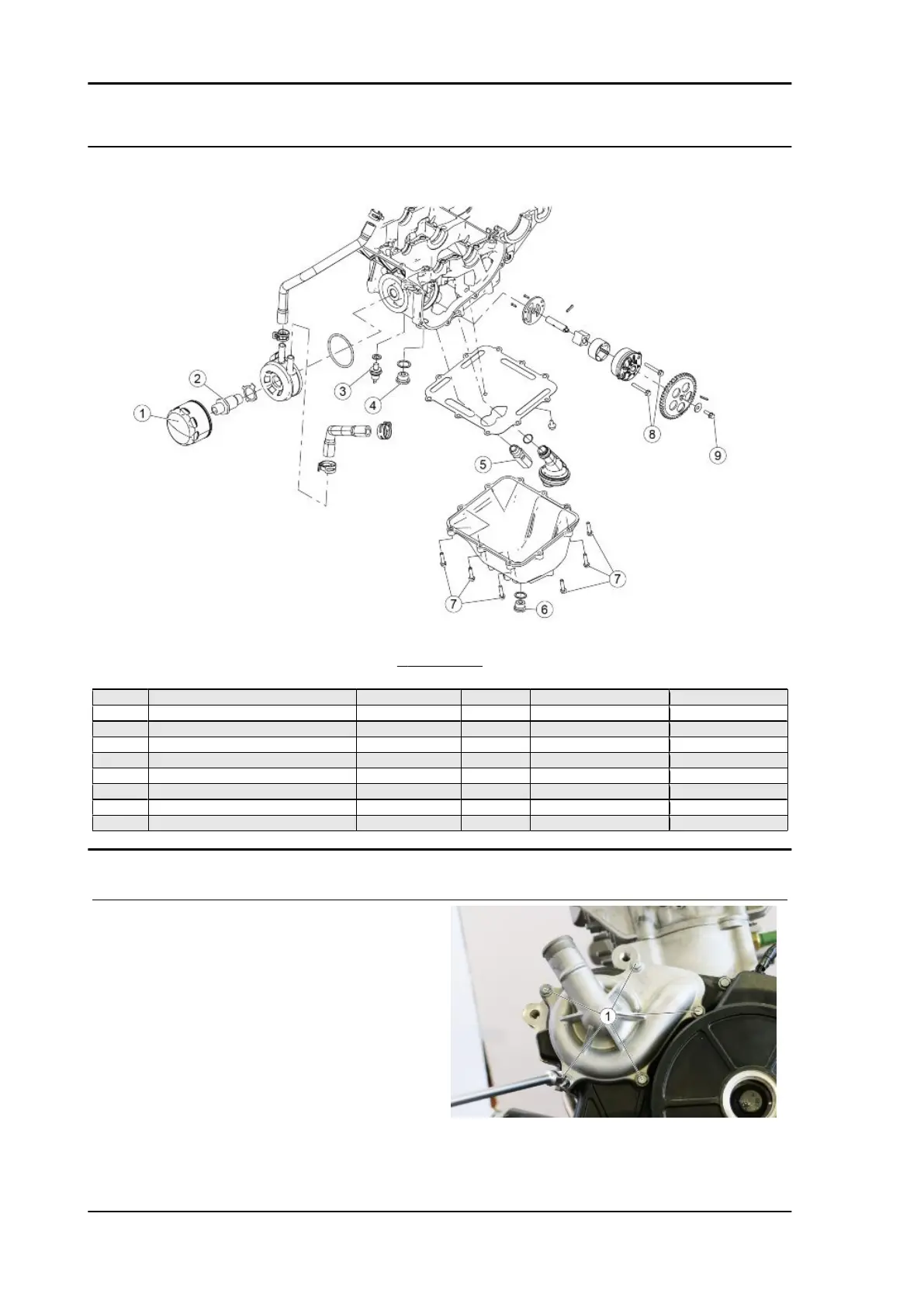

LUBRICATION
Pos. Description Type Quantity Torque Notes
1 Oil filter - 1 15 Nm (11.06 lbf ft) -
2 Oil filter joint - 1 28.5 Nm (21.02 lbf ft) -
3 Oil pressure sensor - 1 13 Nm (9.59 lbf ft) -
4 Crankcase cap - 1 20 Nm (14.75 lbf ft) -
5 Oil pressure regulation valve - 1 42 Nm (30.98 lbf ft) -
6 Drainage plug - 1 20 Nm (14.75 lbf ft) -
7 Sump fixing flanged hex screw M6 10 12 Nm (8.85 lbf ft) -
8 Oil pump fastening screws M5 2 6 Nm (4.43 lbf ft) -
9 Oil pump gear fastener screw - 1 12 Nm (8.85 lbf ft) -
Removal
To proceed with the removal of the water pump,
proceed as described:
•
Remove the five fixing screws (1) of the
water pump cover.
