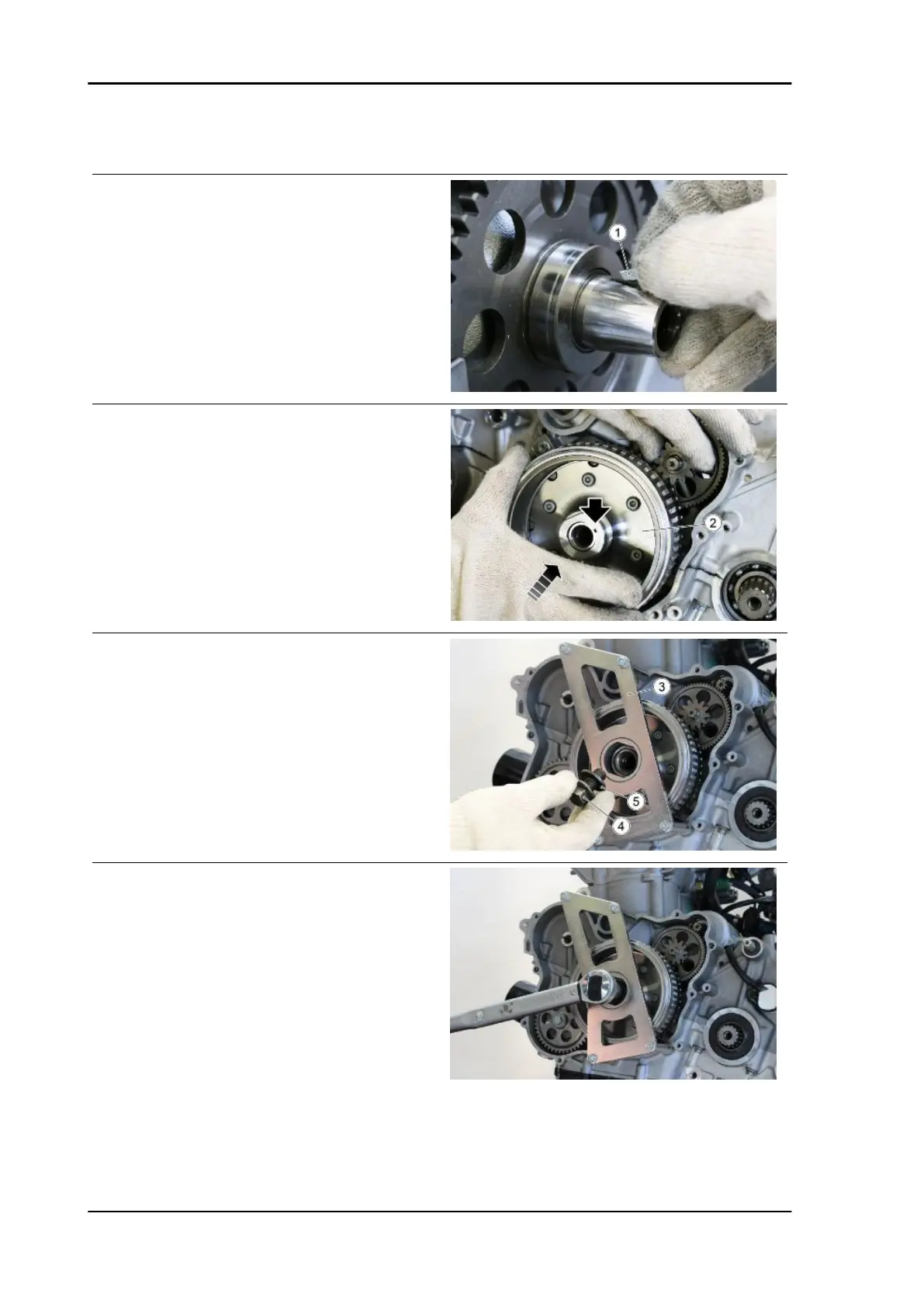

Installing the flywheel
To proceed with the installation of the rotor, pro-
ceed as described:
•
Position the spline (1) on the crank-
shaft.
•
Insert the rotor (2) on the crankshaft
paying attention to align the milling on
the rotor, with the spline previously in-
serted on the crankshaft.
•
Position the specific tool (3) and block
the rotation of the rotor.
•
Insert the screw (4) with washer (5).
Specific tooling
021036Y Flywheel side crankshaft locking tool
•
Tighten the rotor fixing screw to the
prescribed torque.
•
Remove the specific tool.
Specific tooling
021036Y Flywheel side crankshaft locking tool
Engine RS 660 - Tuono 660
ENG - 164
