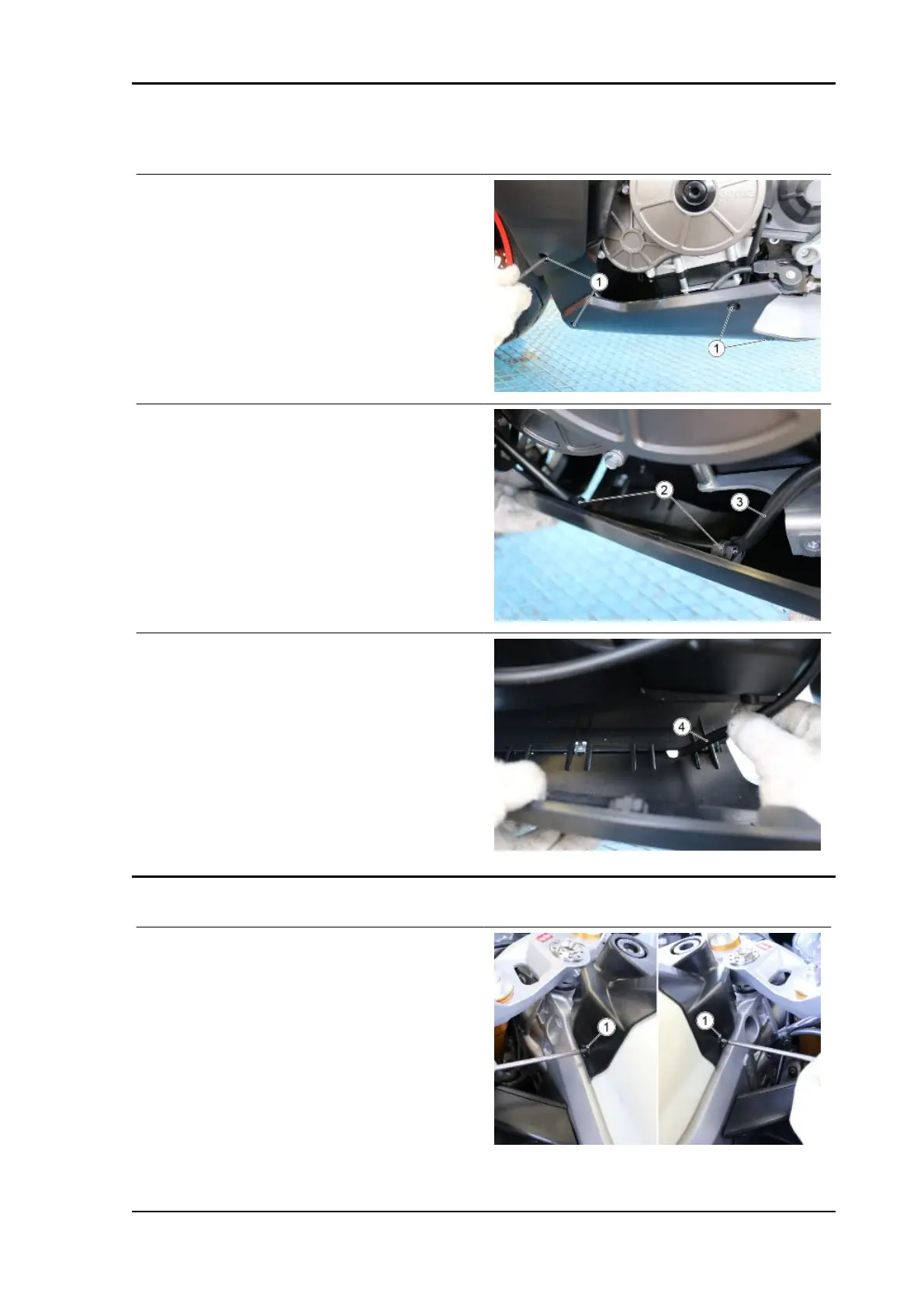

Lower cowl
To remove the fairing lug, proceed as described:
•
Working from both sides of the vehicle,
remove the eight fixing screws (1) of
the fairing lug.
•
Before completely removing the fairing
lug, disconnect the wiring harness (3)
of the side stand sensor from the cable
grommets (2).
•
Remove the vent pipe (4) from the ex-
pansion tank and remove the fairing
lug.
Fuel tank
To disassemble the fuel tank, remove the rider
seat and then proceed as described:
•
Unscrew the two screws (1) fastening
the front cover (2) of the tank.
RS 660 - Tuono 660 Bodywork
BODYW - 403
