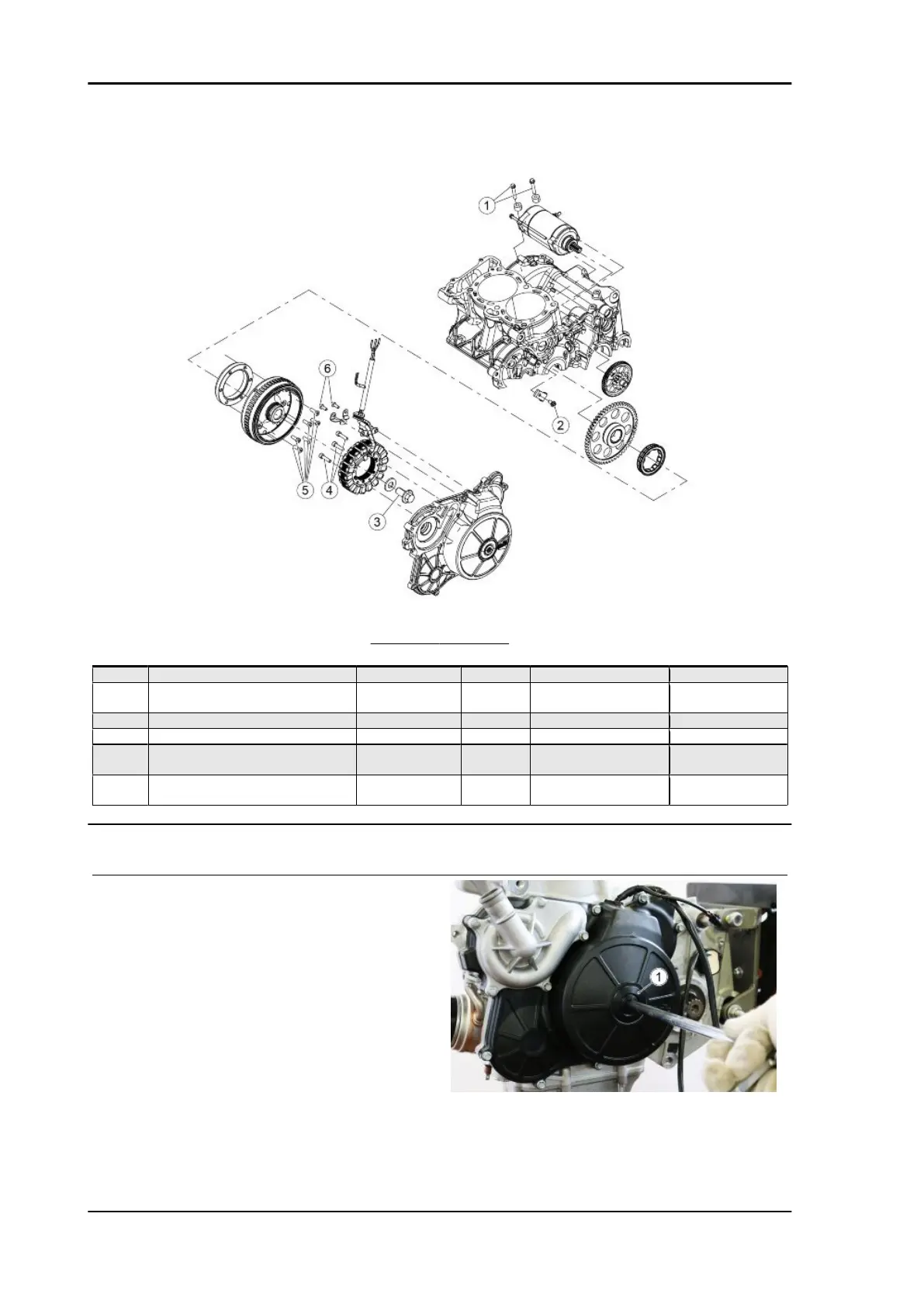

Generator side
FLYWHEEL - IGNITION
Pos. Description Type Quantity Torque Notes
1 Starter motor fastening screws M6x35 2 12 Nm (8.85 lbf ft) -
2 Starter ring gear containment plate
fastening screw
M6x35 1 12 Nm (8.85 lbf ft) -
3 Rotor fastening screw M14x30 1 195 Nm (143,82 lbf ft) -
4 Stator SHC fixing screws M6x30 3 10 Nm (7.38 lbf ft) Pre-impregnated
5 Free wheel on rotor SHC fixing
screws
M6x18 3 14 Nm (10.33 lbf ft) Pre-impregnated
6 Stator wiring harness support plate
fixing screws
M5x14 2 3 Nm (2.21 lbf ft) Pre-impregnated
Removing the flywheel cover
To proceed with the removal of the flywheel cover,
proceed as described:
•
Remove the inspection cap (1).
Engine RS 660 - Tuono 660
ENG - 158
