6 Function description
This chapter describes the most frequent situations in the gen-set control. Non-standard situations and
combinations with a low probability of occurrence are not described.

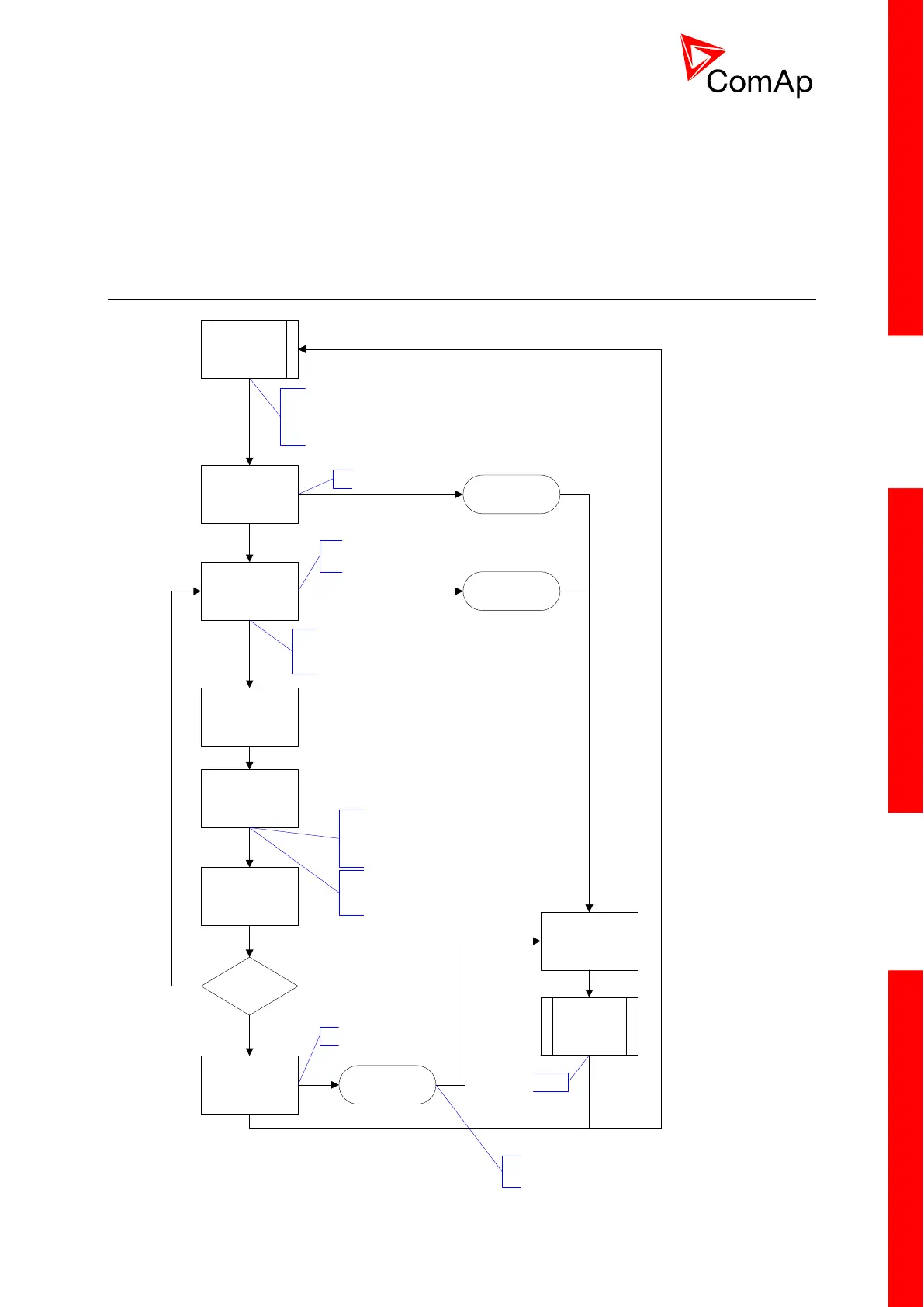

6.1 Island operation flowchart
Gen-set ready
Start sequence
Start command: either pressing
START button in MAN mode or
automatic start in AUT or TEST
mode
StartFail alarm
Start not successful
Stabilization
sequence
Gen. U/f alarm
Voltage and frequency
stabilization not successful
Continues automatically in AUT
mode or by pressing GCB
button in MAN mode
Connecting to the
load
(closing GCB)
Island operation (no
regulation is
performed)
Cooling and stop
sequence
stop sequence
Stop command: either
pressing STOP button in
MAN mode, or automatic
stop in AUT mode
Gen-set not
ready
Fault reset
Disconnecting load
(opening GCB)
GCB open command:
pressing GCB button in MAN
mode
Stop command?
Yes
No
StopFail alarm
Stop not successful
Stop sequence
continues
