3.19.3 IL-NT-AOUT8

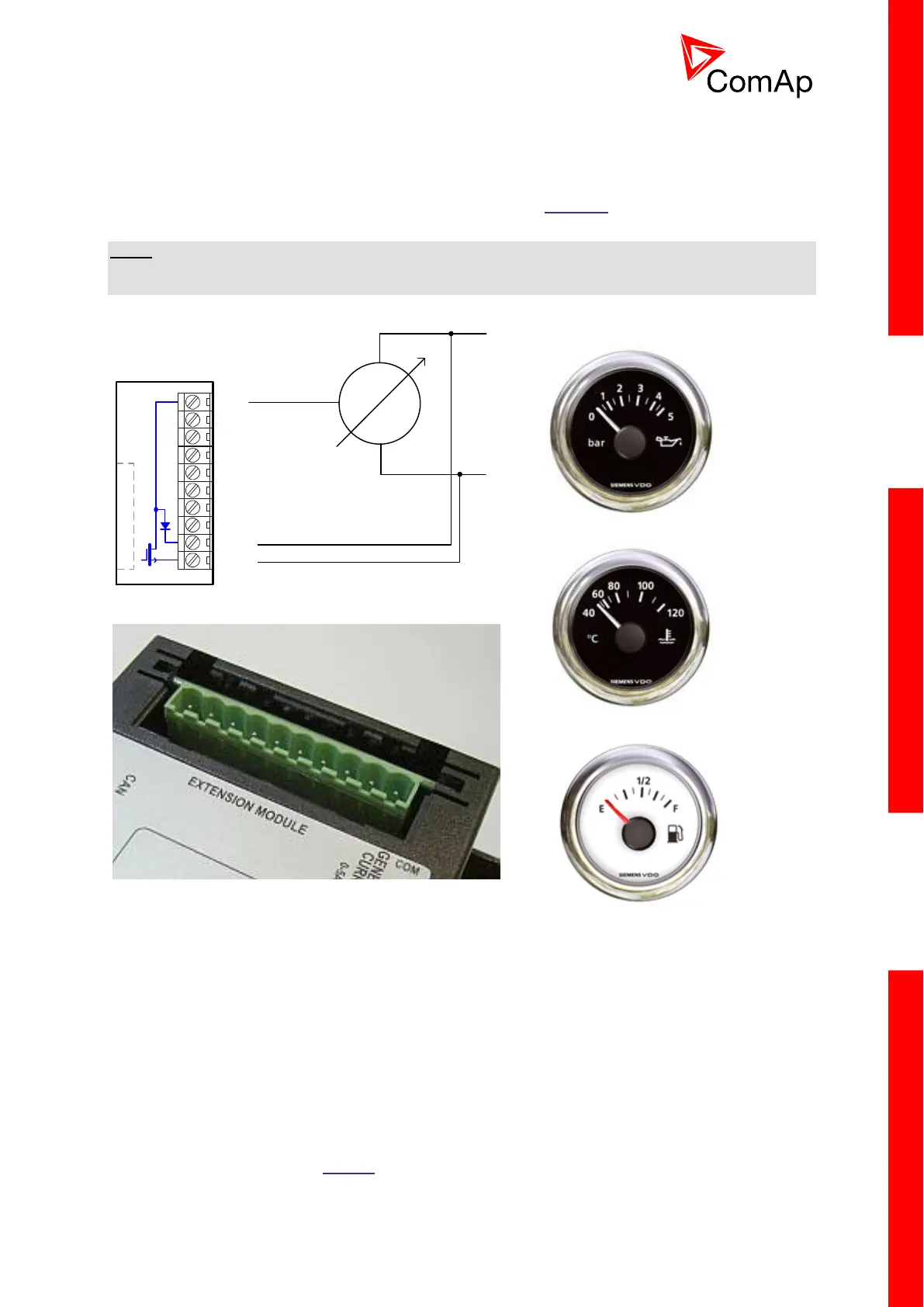

The IL-NT-AOUT8 module is to be directly plugged-in into the slot on the rear side of the controller.
The module contains 8 PWM open collector type outputs. The outputs are specially designed for
driving analog automotive type gauges. Any of the analog values measured or computed in the
controller can be configured to each output and it is possible to configure a different conversion
characteristic (curve) for each output.
NOTE:
The module is compatible with gauges originally designed for resistive sensors, i.e. they have board
voltage compensation. These gauges have 3 terminals: +BATT, SENSOR, GND.
GND
AO8
GND
+12/24V
AO1
AO6
AO5
AO4
AO3
AO2
AO7
AO8
Automotive
type gauge
+ BATT
- BATT
Examples of automotive gauges that can be used with the module:
 VDO Oil pressure gauge 0–10 Bar, p.n. 350-010-007
 VDO Coolant temperature gauge 40–120 °C, p.n. 310-010-002
 VDO Fuel level 0-1/1, p.n. 301-010-001
3.19.4 IL-NT BIO8
Hybrid binary input/output module
IL-NT BIO8 is an optional plug-in card. Through this card the controller can accommodate up to 8
binary inputs or outputs. In the LiteEdit PC configuration tool (version 4.4 and higher) it is possible to
easily choose if a particular I/O will be binary input or output.
