Dell PowerConnect 3548 User Manual

124 Configuring System Information

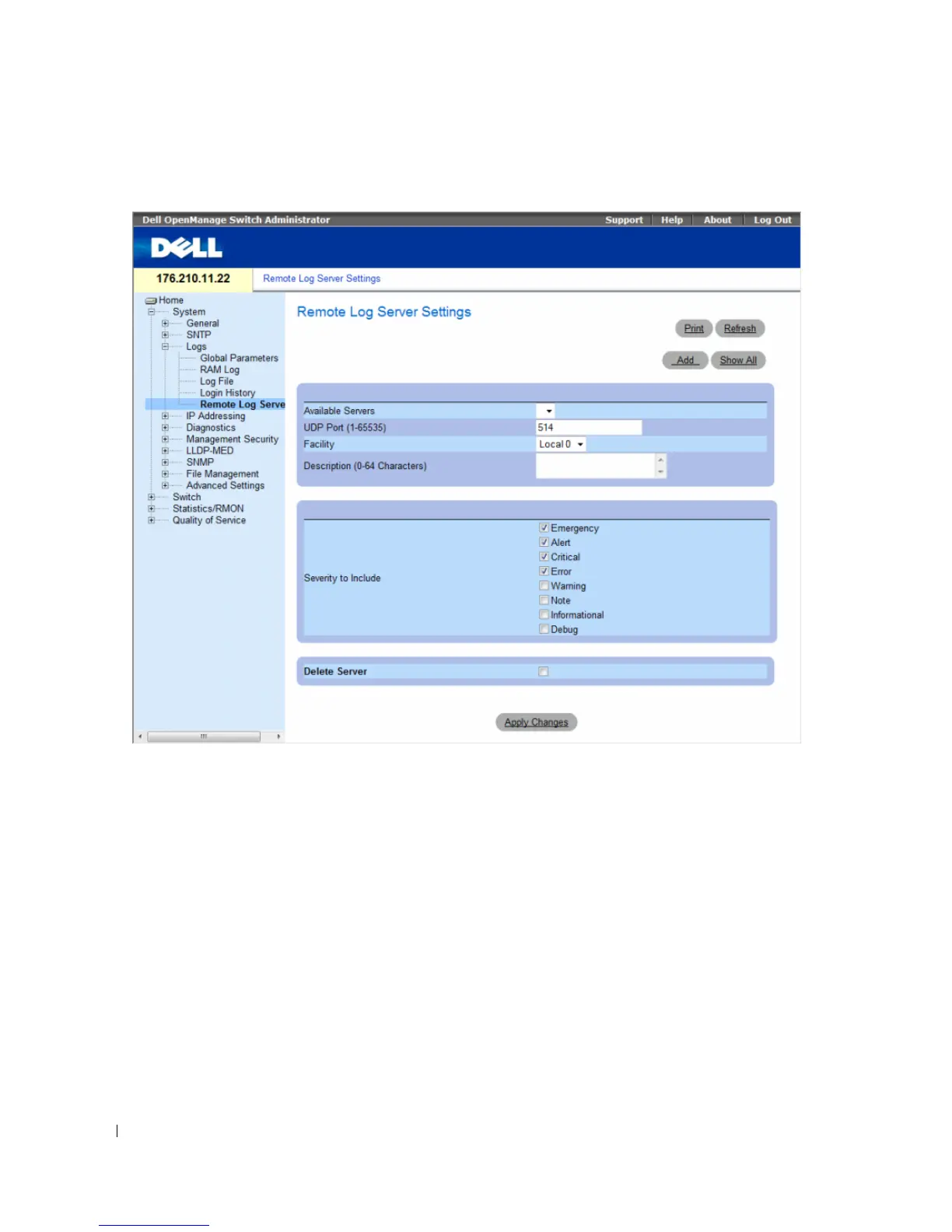

Figure 6-23. Remote Log Server Settings
The Remote Log Server Settings page contains the following fields:
• Available Servers — Contains a list of servers to which logs can be sent.
•
UDP Port (1-65535) — The UDP port to which the logs are sent for the selected server. The possible
range is 1 - 65535. The default value is 514.
•
Facility — Defines a user-defined application from which system logs are sent to the remote server.
Only one facility can be assigned to a single server. If a second facility level is assigned, the first facility
level is overridden. All applications defined for a device utilize the same facility on a server. The field
default is Local 7. The possible field values are:
–
Local 0 to Local 7.
• Description (0-64 Characters) — The user-defined server description.

Dell PowerConnect 3548 Specifications

General

MAC address table	8000 entries
Maximum data transfer rate	0.1 Gbit/s
Supported data transfer rates	10/100 Mbps
10G support	-
Number of VLANs	256
Flow control support	Yes
Networking standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad
Dimensions (WxDxH)	440 x 257 x 43.2 mm
Networking features	Gigabit Ethernet, Fast Ethernet
Authentication method	RADIUS, TACACS+
Connectivity technology	Wired
Switch type	Managed
Switch layer	L2
Data link protocols	Ethernet
Supported network protocols	HTTP, HTTPS/SSL, SSH
Power connector	DC-in jack
SFP/SFP+ slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	48
Product color	Black
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Storage relative humidity (H-H)	10 - 95 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	8000 g
