450 Configuring Quality of Service
Mapping DSCP Values to Queues
The DSCP to Queue page provides fields for defining egress queue to specific DSCP fields. To open the
DSCP to Queue page, click Quality of Service→ QoS Mapping→ DSCP to Queue in the tree view.

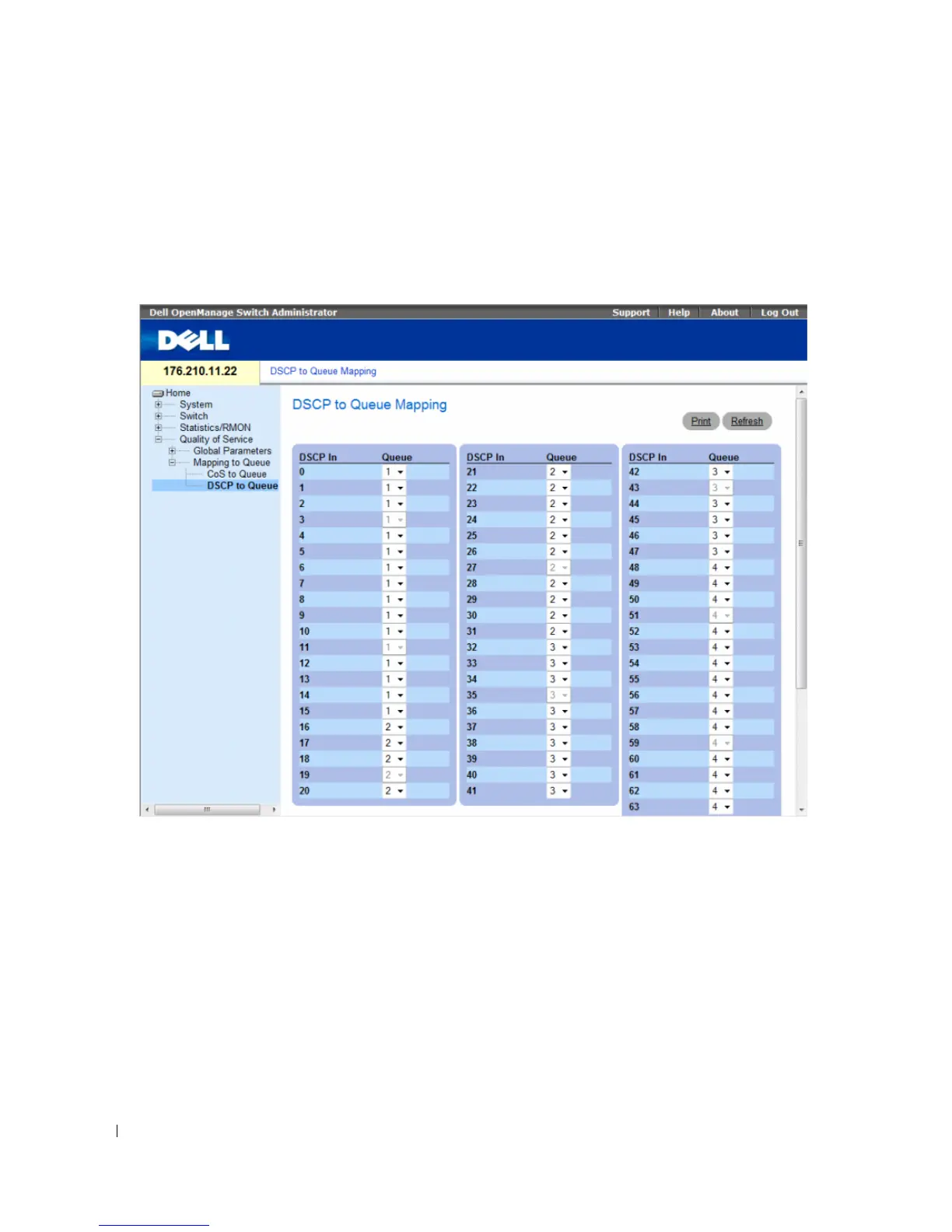

Figure 9-6. DSCP to Queue
The DSCP to Queue page contains the following fields:
• DSCP In — The values of the DSCP field within the incoming packet.
•
Queue — The queue to which packets with the specific DSCP value is assigned. The values are 1-4,
where 1 is the lowest value and 4 is the highest.
•
Restore Defaults — Restores the device factory defaults for mapping CoS values to an egress queue.
