Configuring Switch Information 377
Defining Voice VLAN Port Settings
The Voice VLAN Port Settings Page contains fields for adding ports or LAGs to voice VLAN.
To open the Voice VLAN Port Setting page, click Switch→ Voice VLAN → Port Setting in the tree view.

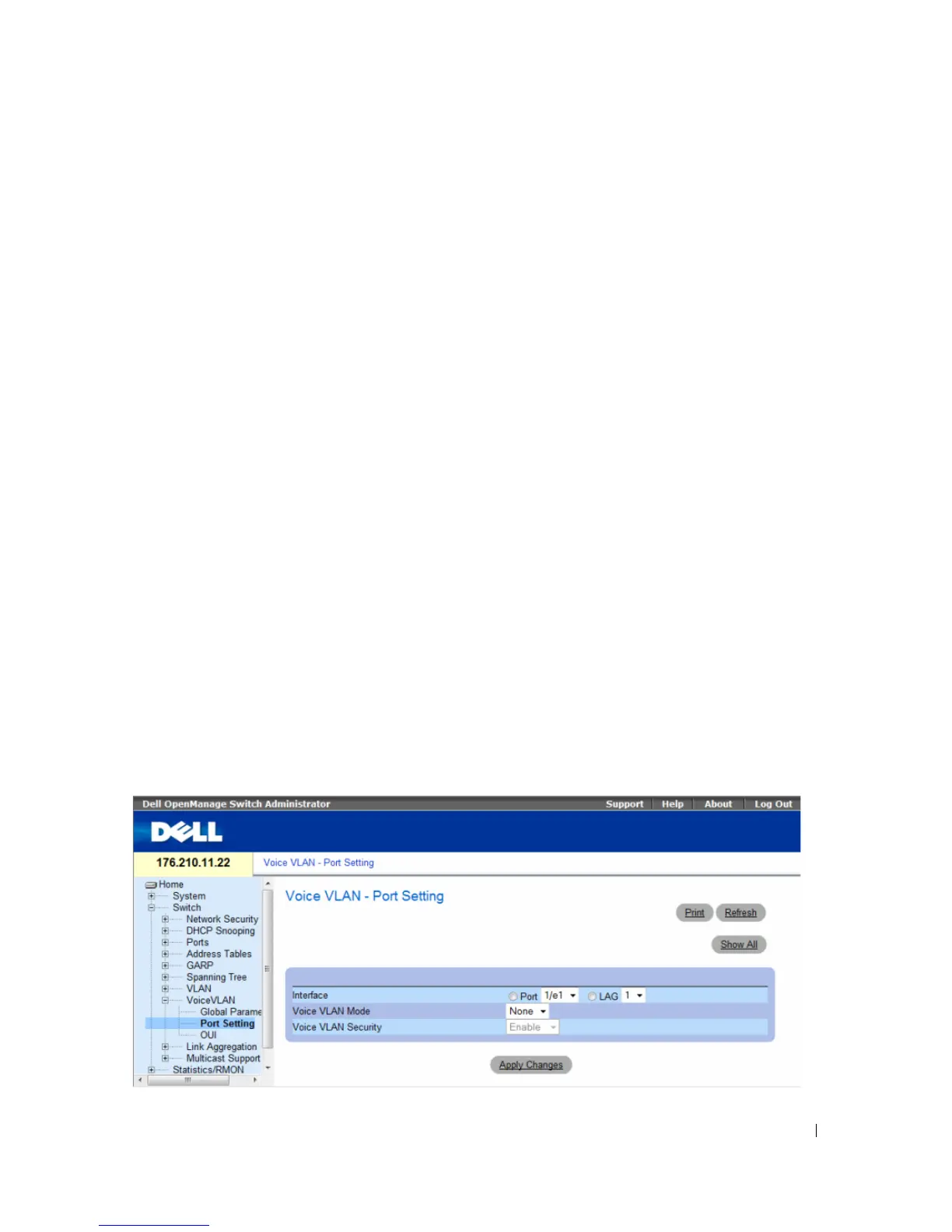

Figure 7-63. Voice VLAN Port Setting
00:0F:E2 Huawei-3COM
Voice VLAN VLAN ID: 8
CoS: 6
Remark: Yes
Interface Enabled Secure Activated
------ ------ ------ ------
1/e1 Yes Yes Yes
1/e2 Yes Yes Yes
1/e3 Yes Yes Yes
1/e4 Yes Yes Yes
1/e5 No No -
1/e6 No No -
1/e7 No No -
1/e8 No No -
1/e9 No No -

Dell PowerConnect 3548 Specifications

General

MAC address table	8000 entries
Maximum data transfer rate	0.1 Gbit/s
Supported data transfer rates	10/100 Mbps
10G support	-
Number of VLANs	256
Flow control support	Yes
Networking standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad
Dimensions (WxDxH)	440 x 257 x 43.2 mm
Networking features	Gigabit Ethernet, Fast Ethernet
Authentication method	RADIUS, TACACS+
Connectivity technology	Wired
Switch type	Managed
Switch layer	L2
Data link protocols	Ethernet
Supported network protocols	HTTP, HTTPS/SSL, SSH
Power connector	DC-in jack
SFP/SFP+ slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	48
Product color	Black
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Storage relative humidity (H-H)	10 - 95 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	8000 g
