Dell PowerConnect 3548 User Manual

Configuring System Information 137
Defining IPv6 Interfaces
The system supports IPv6 hosts. The IPv6 Interface page contains fields for defining IPv6 interfaces.
To open the IPv6 Interface page, click System
→ IP Addressing→ IPv6 Interface in the tree view.

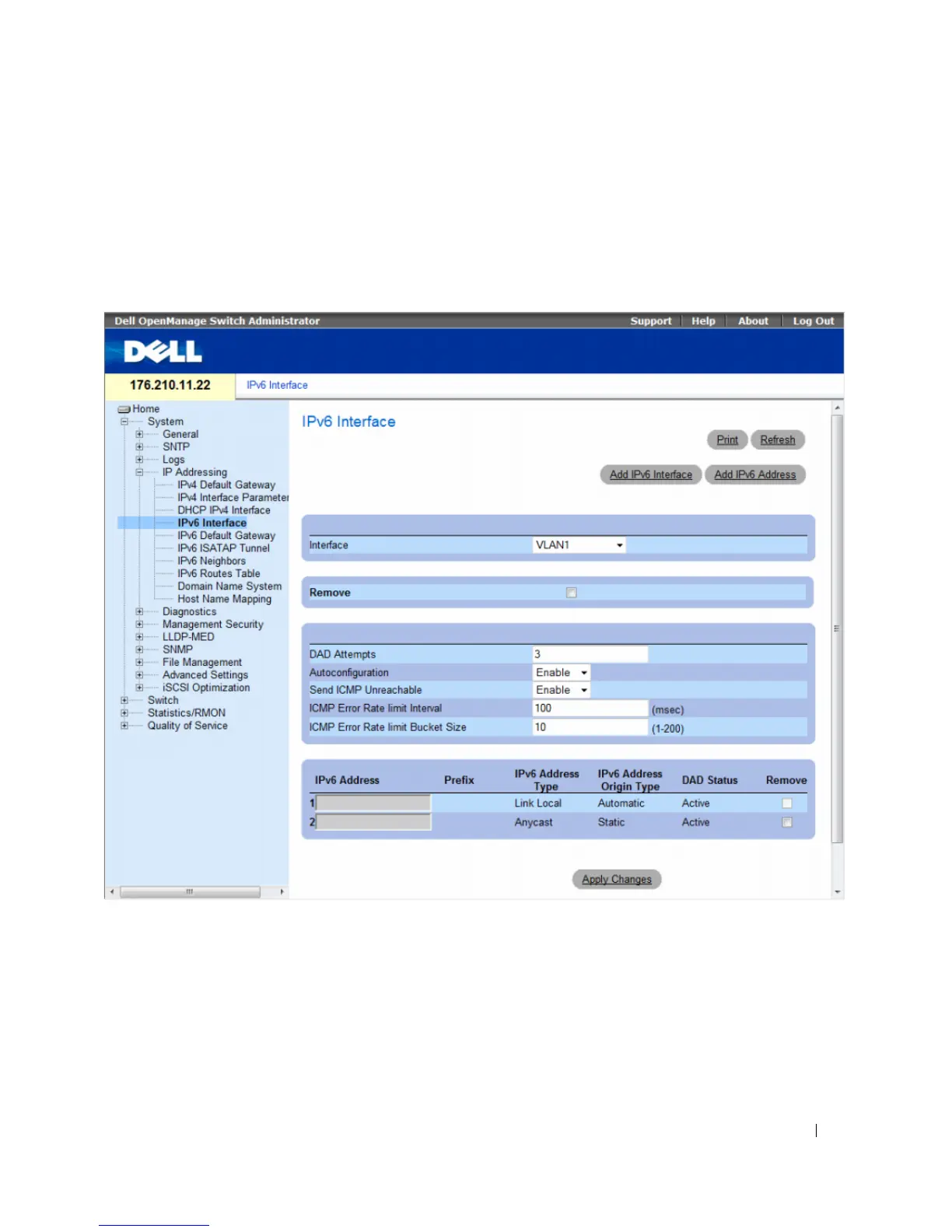

Figure 6-33. IPv6 Interface
• Interface — The IPv6 interface that has been selected for configuration.
•
Remove — When selected, removes the IPv6 attributes of the interface.
•
DAD Attempts — Defines the number of consecutive neighbor solicitation messages that are sent on
an interface while Duplicate Address Detection (DAD) is performed on unicast IPv6 addresses on this
interface. New addresses remain in a tentative state while duplicate address detection is performed.
A field value of 0, disables duplicate address detection processing on the specified interface. A field
value of 1, indicates a single transmission without follow up transmissions. Range is 0-600, default is 1.

Dell PowerConnect 3548 Specifications

General

MAC address table	8000 entries
Maximum data transfer rate	0.1 Gbit/s
Supported data transfer rates	10/100 Mbps
10G support	-
Number of VLANs	256
Flow control support	Yes
Networking standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad
Dimensions (WxDxH)	440 x 257 x 43.2 mm
Networking features	Gigabit Ethernet, Fast Ethernet
Authentication method	RADIUS, TACACS+
Connectivity technology	Wired
Switch type	Managed
Switch layer	L2
Data link protocols	Ethernet
Supported network protocols	HTTP, HTTPS/SSL, SSH
Power connector	DC-in jack
SFP/SFP+ slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	48
Product color	Black
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Storage relative humidity (H-H)	10 - 95 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	8000 g
