Dell PowerConnect 3548 User Manual

Configuring System Information 227
Defining SNMP Access Control
The Access Control page provides information for creating SNMP groups, and assigning SNMP access
control privileges to SNMP groups. Groups allow network managers to assign access rights to specific
device features, or features aspects.
To open the
Access Control Group page, click System → SNMP → Access Control in the tree view.

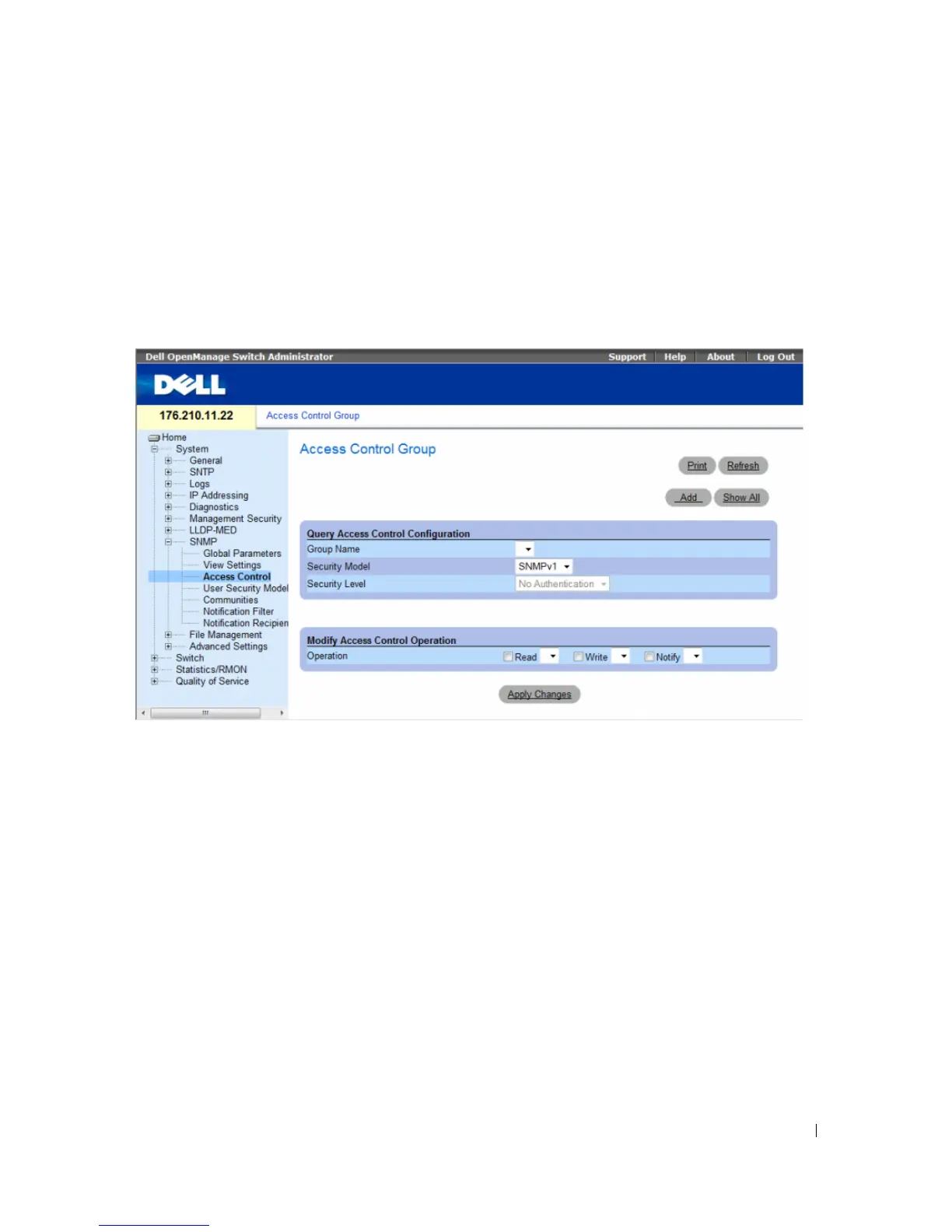

Figure 6-91. Access Control Group
The Access Control Group contains the following fields:
• Group Name — The user-defined group to whom access control rules are applied. The field range is up
to 30 characters.
•
Security Model — Defines the SNMP version attached to the group. The possible field values are:
–
SNMPv1 — SNMPv1 is defined for the group.
–
SNMPv2 — SNMPv2 is defined for the group.
–
SNMPv3 — SNMPv3 is defined for the group.

Dell PowerConnect 3548 Specifications

General

MAC address table	8000 entries
Maximum data transfer rate	0.1 Gbit/s
Supported data transfer rates	10/100 Mbps
10G support	-
Number of VLANs	256
Flow control support	Yes
Networking standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad
Dimensions (WxDxH)	440 x 257 x 43.2 mm
Networking features	Gigabit Ethernet, Fast Ethernet
Authentication method	RADIUS, TACACS+
Connectivity technology	Wired
Switch type	Managed
Switch layer	L2
Data link protocols	Ethernet
Supported network protocols	HTTP, HTTPS/SSL, SSH
Power connector	DC-in jack
SFP/SFP+ slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	48
Product color	Black
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Storage relative humidity (H-H)	10 - 95 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	8000 g
