Dell PowerConnect 3548 User Manual

Configuring System Information 165
Running Cable Diagnostics
The Diagnostics page contains links to pages for performing virtual cable tests on copper and fiber
optic cables. To open the Diagnostics page, click System→ Diagnostics in the tree view.
This section contians the following topics:
• "Viewing Copper Cable Diagnostics" on page 165
• "Viewing Optical Transceiver Diagnostics" on page 167
Viewing Copper Cable Diagnostics
The Integrated Cable Test for Copper Cables page contains fields for performing tests on copper cables.
Cable testing provides information about where errors occurred in the cable, the last time a cable test
was performed, and the type of cable error which occurred. The tests use Time Domain Reflectometry
(TDR) technology to test the quality and characteristics of a copper cable attached to a port. Cables up
to 120 meters long can be tested. Cables are tested when the ports are in the down state, with the
exception of the Approximated Cable Length test.
To open the Integrated Cable Test for Copper Cables page, click System → Diagnostics → Integrated
Cable Test in the tree view.

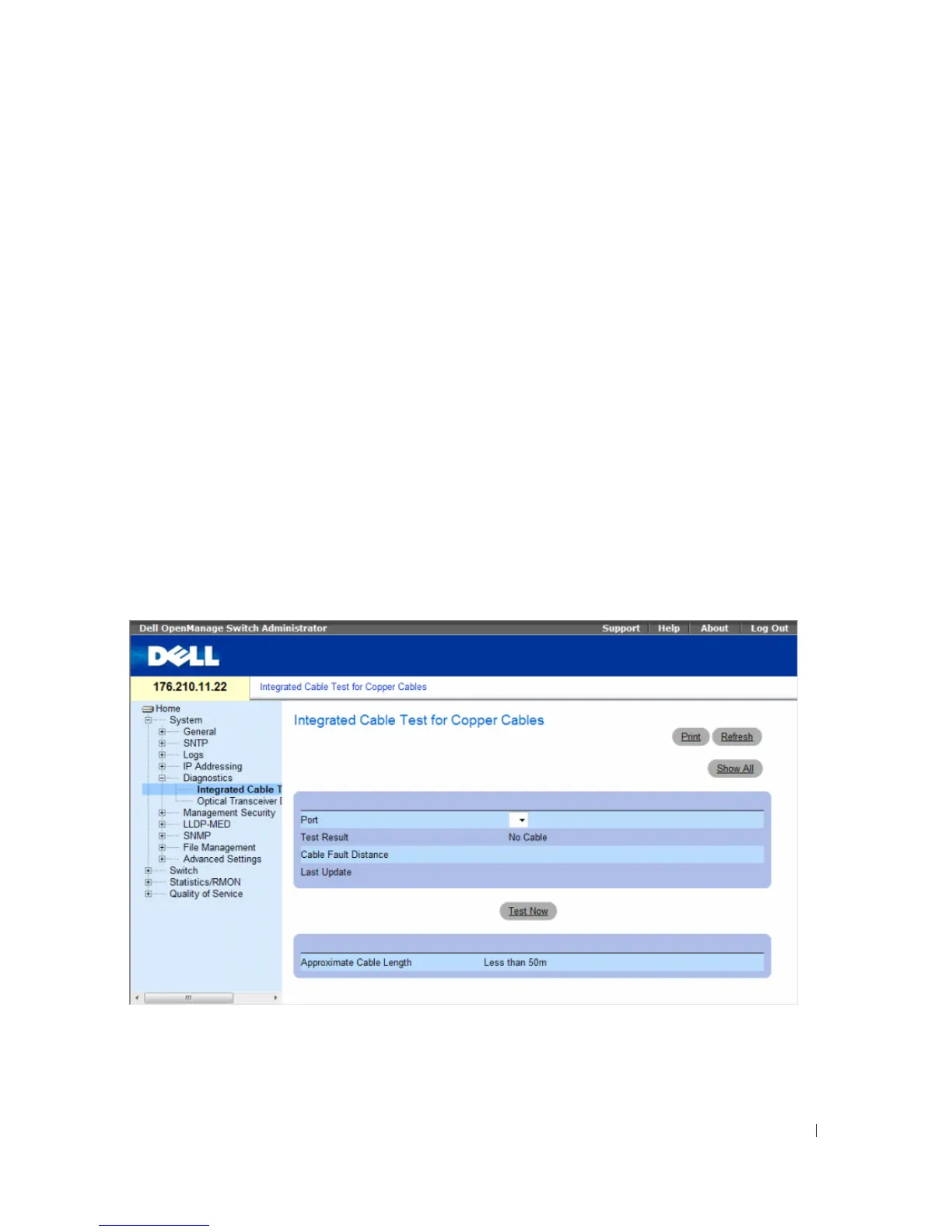

Figure 6-51. Integrated Cable Test for Copper Cables

Dell PowerConnect 3548 Specifications

General

MAC address table	8000 entries
Maximum data transfer rate	0.1 Gbit/s
Supported data transfer rates	10/100 Mbps
10G support	-
Number of VLANs	256
Flow control support	Yes
Networking standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad
Dimensions (WxDxH)	440 x 257 x 43.2 mm
Networking features	Gigabit Ethernet, Fast Ethernet
Authentication method	RADIUS, TACACS+
Connectivity technology	Wired
Switch type	Managed
Switch layer	L2
Data link protocols	Ethernet
Supported network protocols	HTTP, HTTPS/SSL, SSH
Power connector	DC-in jack
SFP/SFP+ slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	48
Product color	Black
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Storage relative humidity (H-H)	10 - 95 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	8000 g
