The Integrated Cable Test for Copper Cables page contains the following fields:
• Port — The port to which the cable is connected.
•
Test Result — The cable test results. The possible field values are:
–
No Cable — There is no cable connected to the port.
–
Open Cable — The cable is connected on only one side.
–
Short Cable — A short has occurred in the cable.
–
OK — The cable passed the test.
•
Cable Fault Distance — The distance from the port where the cable error occurred.
•
Last Update — The last time the port was tested.
•
Approximate Cable Length — The approximate cable length. This test can only be performed when
the port is up and operating at 1 Gbps.
Performing a Cable Test
1 Ensure that both ends of the copper cable are connected to a device.
2 Open the Integrated Cable Test for Copper Cables page.
3 Select an interface to test.
4 Click Test Now .
The copper cable test is performed, and the results are displayed on the
Integrated Cable Test for
Copper Cables
page.
Displaying Virtual Cable Test Results Table
This screen displays the results of tests that have been previously run, but does not actually perform the
test on all ports now. The cable length returned by the Integrated Cable Test (VCT) is an approximation
in the ranges of up to 50 meters, 50m-80m, 80m-110m, 110m-120m, or more than 120m. The deviation
may be up to 20 meters, and cable length measurement does not operate for 10 Mbps links.
1
Open the Integrated Cable Test for Copper Cables page.
2 Click Show All .
The
Integrated Cable Test Results Table page opens.

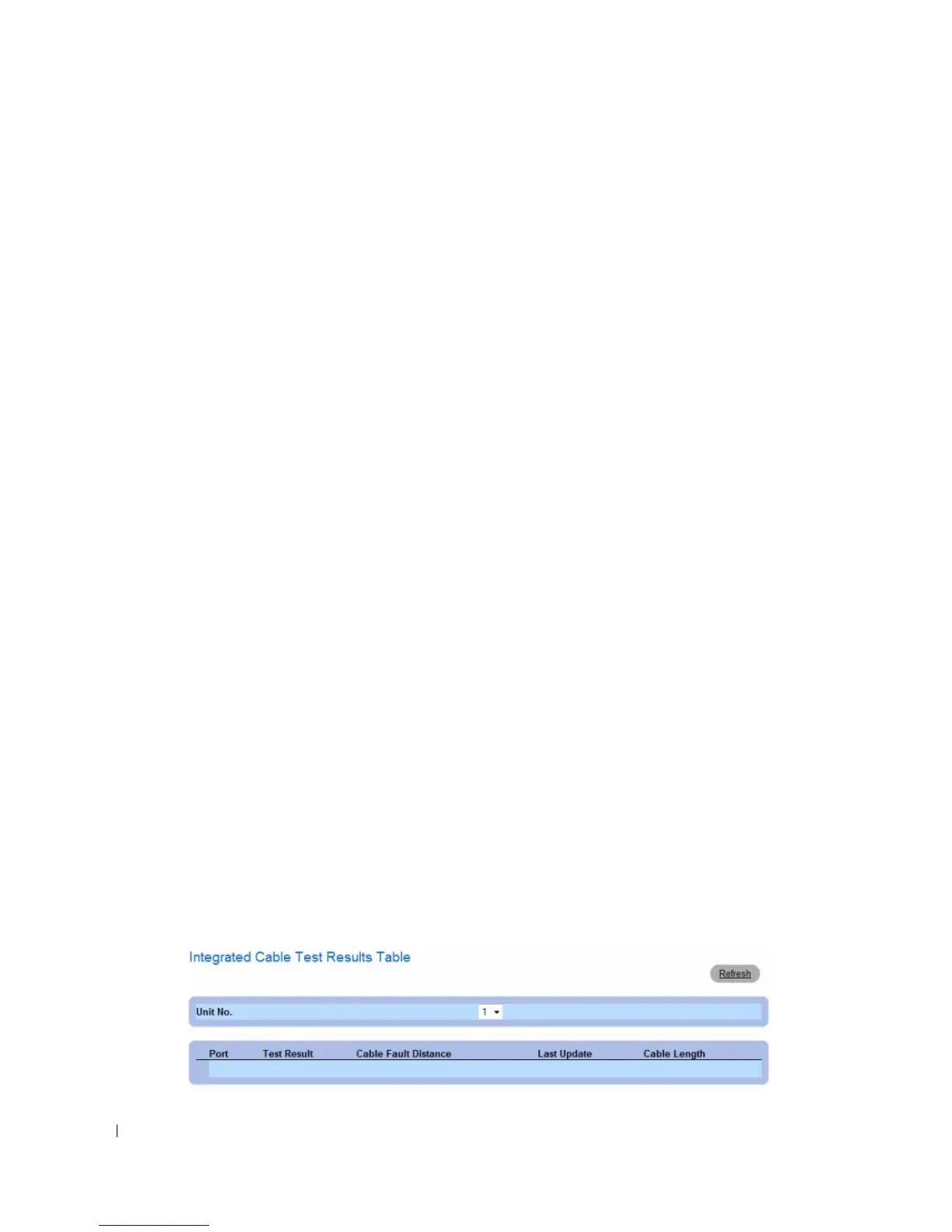

Figure 6-52. Integrated Cable Test Results Table

Dell PowerConnect 3548 Specifications

General

MAC address table	8000 entries
Maximum data transfer rate	0.1 Gbit/s
Supported data transfer rates	10/100 Mbps
10G support	-
Number of VLANs	256
Flow control support	Yes
Networking standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad
Dimensions (WxDxH)	440 x 257 x 43.2 mm
Networking features	Gigabit Ethernet, Fast Ethernet
Authentication method	RADIUS, TACACS+
Connectivity technology	Wired
Switch type	Managed
Switch layer	L2
Data link protocols	Ethernet
Supported network protocols	HTTP, HTTPS/SSL, SSH
Power connector	DC-in jack
SFP/SFP+ slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	48
Product color	Black
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Storage relative humidity (H-H)	10 - 95 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	8000 g
