Dell PowerConnect 3548 User Manual

148 Configuring System Information
Defining IPv6 Neighbors
The IPv6 Neighbors Page contains information for defining IPv6 Neighbors which is similar to the
functionality of the IPv4 Address Resolution Protocol (ARP). IPv6 Neighbors enables detecting Link Local
addresses within the same subnet, and includes a database for maintaining reachability information
about the active neighbors paths.
The device supports a total of up to 256 neighbors obtained either statically or dynamically.
When removing an IPv6 interface, all neighbors learned statically and dynamically are removed.
To open the IPv6 Neighbors page, click System
→ IP Addressing→ IPv6 Neighbors in the tree view.

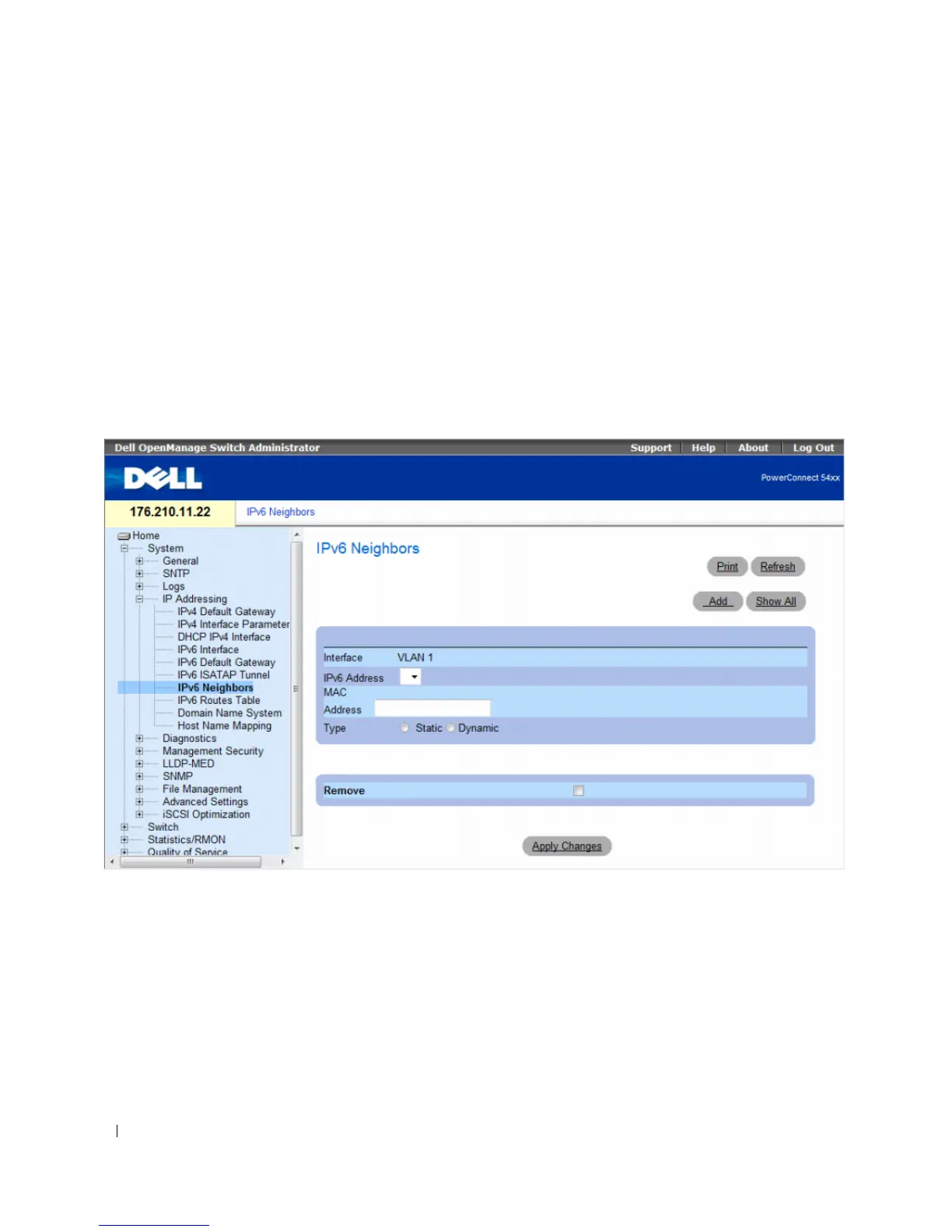

Figure 6-39. IPv6 Neighbors
• Interface — Displays the interface on which IPv6 Interface is defined. Interfaces include Ports, LAGs,
or VLANs.
•
IPv6 Address — Defines the currently configured neighbor IPv6 address.
•
MAC Address — Displays the MAC address assigned to the interface.

Dell PowerConnect 3548 Specifications

General

MAC address table	8000 entries
Maximum data transfer rate	0.1 Gbit/s
Supported data transfer rates	10/100 Mbps
10G support	-
Number of VLANs	256
Flow control support	Yes
Networking standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad
Dimensions (WxDxH)	440 x 257 x 43.2 mm
Networking features	Gigabit Ethernet, Fast Ethernet
Authentication method	RADIUS, TACACS+
Connectivity technology	Wired
Switch type	Managed
Switch layer	L2
Data link protocols	Ethernet
Supported network protocols	HTTP, HTTPS/SSL, SSH
Power connector	DC-in jack
SFP/SFP+ slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	48
Product color	Black
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Storage relative humidity (H-H)	10 - 95 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	8000 g
