218 Configuring System Information
Removing a Port From the Table
1 Open the Neighbors Information page.
2 Check the Remove checkbox of each port to be removed.
3 Click Apply Changes . The ports are removed.
Clearing the Table
1 Open the Neighbors Information page.
2 Click Clear Neighbors Table . The table is cleared.
Viewing the Details of the LLDP MED Information Advertised by a Neighbor Device
1 Open the Neighbors Information page.
2 Click the Details button next to the desired entry. The Details Neighbors Information page appears:

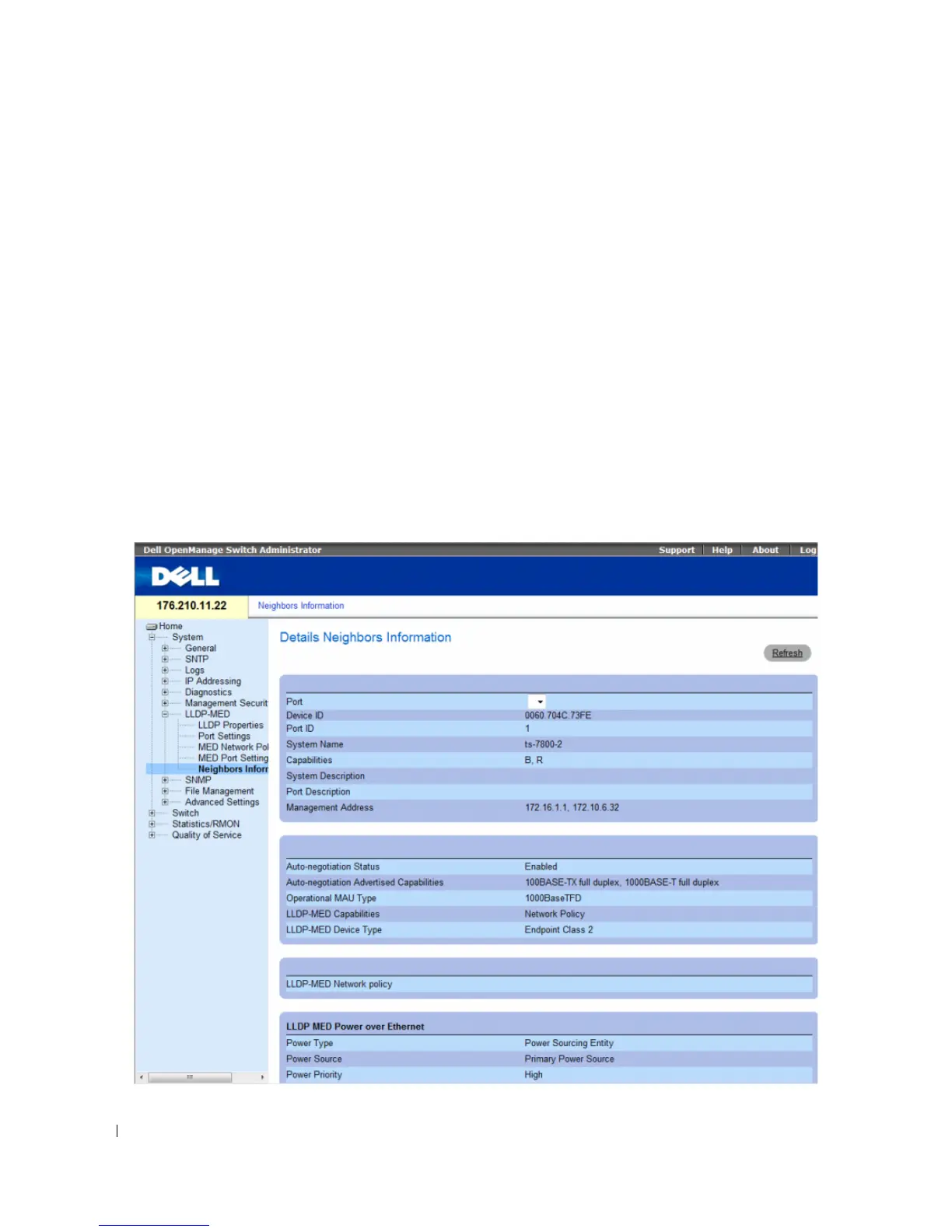

Figure 6-86. Details Neighbors Information

Dell PowerConnect 3548 Specifications

General

MAC address table	8000 entries
Maximum data transfer rate	0.1 Gbit/s
Supported data transfer rates	10/100 Mbps
10G support	-
Number of VLANs	256
Flow control support	Yes
Networking standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad
Dimensions (WxDxH)	440 x 257 x 43.2 mm
Networking features	Gigabit Ethernet, Fast Ethernet
Authentication method	RADIUS, TACACS+
Connectivity technology	Wired
Switch type	Managed
Switch layer	L2
Data link protocols	Ethernet
Supported network protocols	HTTP, HTTPS/SSL, SSH
Power connector	DC-in jack
SFP/SFP+ slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	48
Product color	Black
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Storage relative humidity (H-H)	10 - 95 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	8000 g
