Configuring Switch Information 275
Displaying the Port Security Table
1 Open the Port Security page.
2 Click Show All.
The Port Security Table opens.
Locked Ports are defined in the Port Security Table.

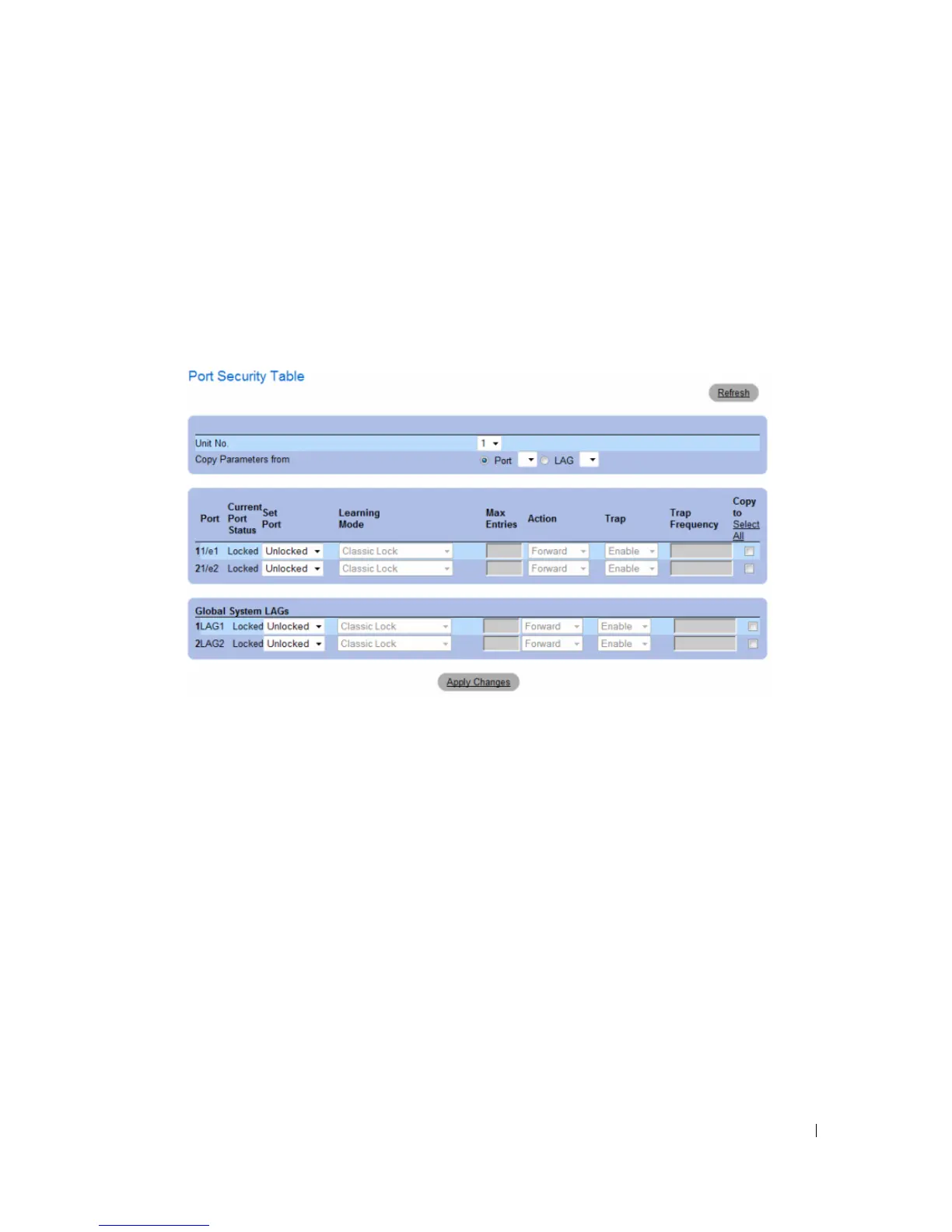

Figure 7-8. Port Security Table
The Port Security Table contains the additional following fields:
• Unit No. — Specifies the stacking unit for which locked port information is displayed.
•
Copy Parameters from — The port from which parameters will be copied and assigned to the selected
unit number.

Dell PowerConnect 3548 Specifications

General

MAC address table	8000 entries
Maximum data transfer rate	0.1 Gbit/s
Supported data transfer rates	10/100 Mbps
10G support	-
Number of VLANs	256
Flow control support	Yes
Networking standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad
Dimensions (WxDxH)	440 x 257 x 43.2 mm
Networking features	Gigabit Ethernet, Fast Ethernet
Authentication method	RADIUS, TACACS+
Connectivity technology	Wired
Switch type	Managed
Switch layer	L2
Data link protocols	Ethernet
Supported network protocols	HTTP, HTTPS/SSL, SSH
Power connector	DC-in jack
SFP/SFP+ slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	48
Product color	Black
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Storage relative humidity (H-H)	10 - 95 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	8000 g
