284 Configuring Switch Information
• CoS — Indicates the CoS values by which the packets are filtered.
•
Cos Mask — Indicates the CoS Mask by which the packets are filtered.
•
Ethertype — Indicates the Ethertype packet by which the packets are filtered.
•
Action — Indicates the ACL forwarding action. Possible field values are:
–
Permit — Forwards packets which meet the ACL criteria.
–
Deny — Drops packets which meet the ACL criteria.
–
Shutdown — Drops packet that meet the ACL criteria, and disables the port to which the packet
was addressed.
Adding ACEs to IP based ACLs
1 Open the Network Security - MAC Based ACL page.
2 Select an ACL.
3 Edit the relevant fields.
4 Click Apply Changes .
Adding MAC based ACLs
1 Open the MAC Based ACL page.:
2 Click Add .
The
Network Security - MAC Based ACL page opens.

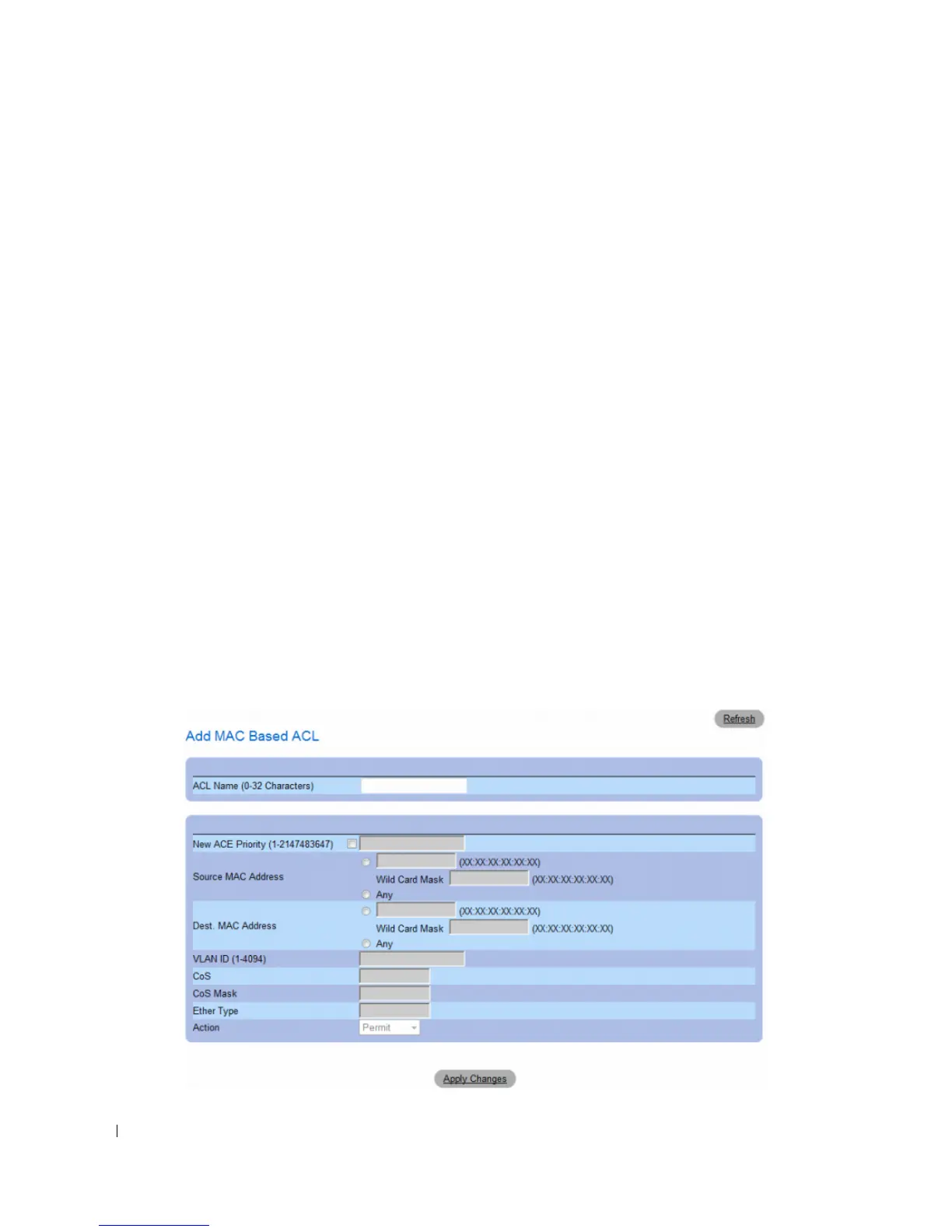

Figure 7-12. Add Mac Based ACL

Dell PowerConnect 3548 Specifications

General

MAC address table	8000 entries
Maximum data transfer rate	0.1 Gbit/s
Supported data transfer rates	10/100 Mbps
10G support	-
Number of VLANs	256
Flow control support	Yes
Networking standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad
Dimensions (WxDxH)	440 x 257 x 43.2 mm
Networking features	Gigabit Ethernet, Fast Ethernet
Authentication method	RADIUS, TACACS+
Connectivity technology	Wired
Switch type	Managed
Switch layer	L2
Data link protocols	Ethernet
Supported network protocols	HTTP, HTTPS/SSL, SSH
Power connector	DC-in jack
SFP/SFP+ slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	48
Product color	Black
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Storage relative humidity (H-H)	10 - 95 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	8000 g
