Dell PowerConnect 3548 User Manual

34 Hardware Description
The following table describes the system LED indications.

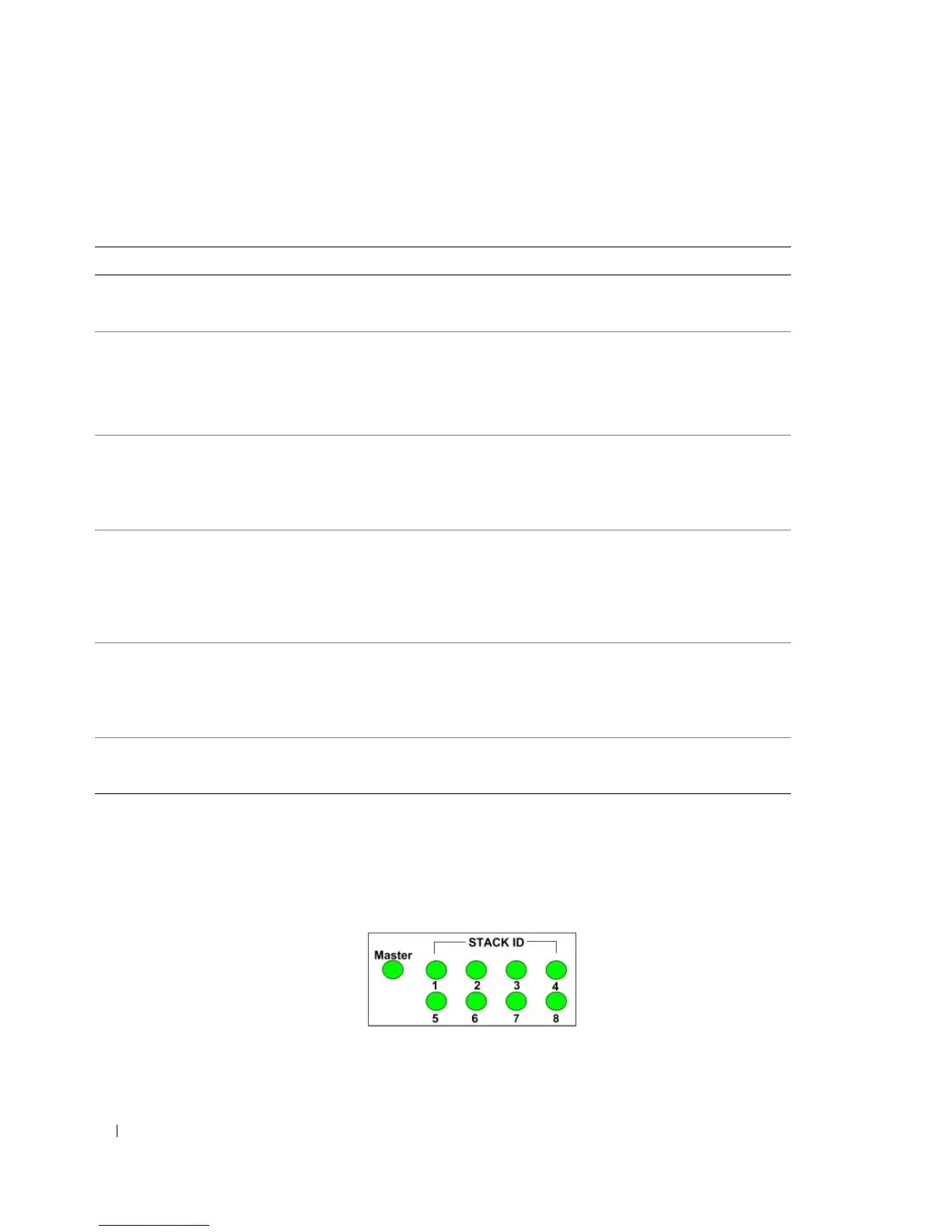

The Stacking LEDs indicate the unit position in the stack. The following figure illustrates the LEDs on
the front panel.
Figure 2-10. Stacking LEDs
Table 2-5. System LED Indicators
LED Color Description
Power Supply (PWR) Green Static The switch is turned on.
OFF The switch is turned off.
Redundant Power Supply (RPS)
(models: 3524 and 3548 )
Green Static The RPS is currently operating.
Red Static The RPS failed.
OFF The redundant power supply is not plugged in.
Redundant Power Supply (RPS)
(models: 3524P and 3548P )
Green Static The RPS is currently operating.
OFF The redundant power supply has failed or is not
plugged in.
Diagnostics (DIAG) Green Flashing The system diagnostic test is currently in progress.
Green Static The system diagnostic test passed successfully.
Red Static The system diagnostic test failed.
OFF The system is operating normally.
Temperature (TEMP) Red Static The device has crossed the permitted temperature
range.
OFF The device is operating within the permitted
temperature range.
Fan (FAN) Green Static All device fans are operating normally.
Red Static One or more of the device fans is not operating.

Dell PowerConnect 3548 Specifications

General

MAC address table	8000 entries
Maximum data transfer rate	0.1 Gbit/s
Supported data transfer rates	10/100 Mbps
10G support	-
Number of VLANs	256
Flow control support	Yes
Networking standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad
Dimensions (WxDxH)	440 x 257 x 43.2 mm
Networking features	Gigabit Ethernet, Fast Ethernet
Authentication method	RADIUS, TACACS+
Connectivity technology	Wired
Switch type	Managed
Switch layer	L2
Data link protocols	Ethernet
Supported network protocols	HTTP, HTTPS/SSL, SSH
Power connector	DC-in jack
SFP/SFP+ slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	48
Product color	Black
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Storage relative humidity (H-H)	10 - 95 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	8000 g
