48 Installing the PowerConnect 3524/P and PowerConnect 3548/P
3
Set the data rate to 9600 baud.
4
Set the data format to 8 data bits, 1 stop bit, and no parity.
5
Set flow control to
non
e.
6
Under Properties, select VT100 for Emulation mode.
7
Select Terminal keys for Function, Arrow, and Ctrl keys. Ensure that the setting is for Terminal keys
(
not
Windows keys).
CAUTION: When using HyperTerminal with Microsoft
®
Windows
®
2000,ensure that you have Windows 2000 Service
Pack 2 or later installed. With Windows 2000 Service Pack 2, the arrow keys function properly in HyperTerminal’s
VT100 emulation. Go to www.microsoft.com for information on Windows 2000 service packs.
8
Connect the female connector of the RS-232 crossover cable directly to the device Console port on the
Master unit/stand-alone device, and tighten the captive retaining screws. The PowerConnect 35xx
Series Systems Console port is on the rear panel.

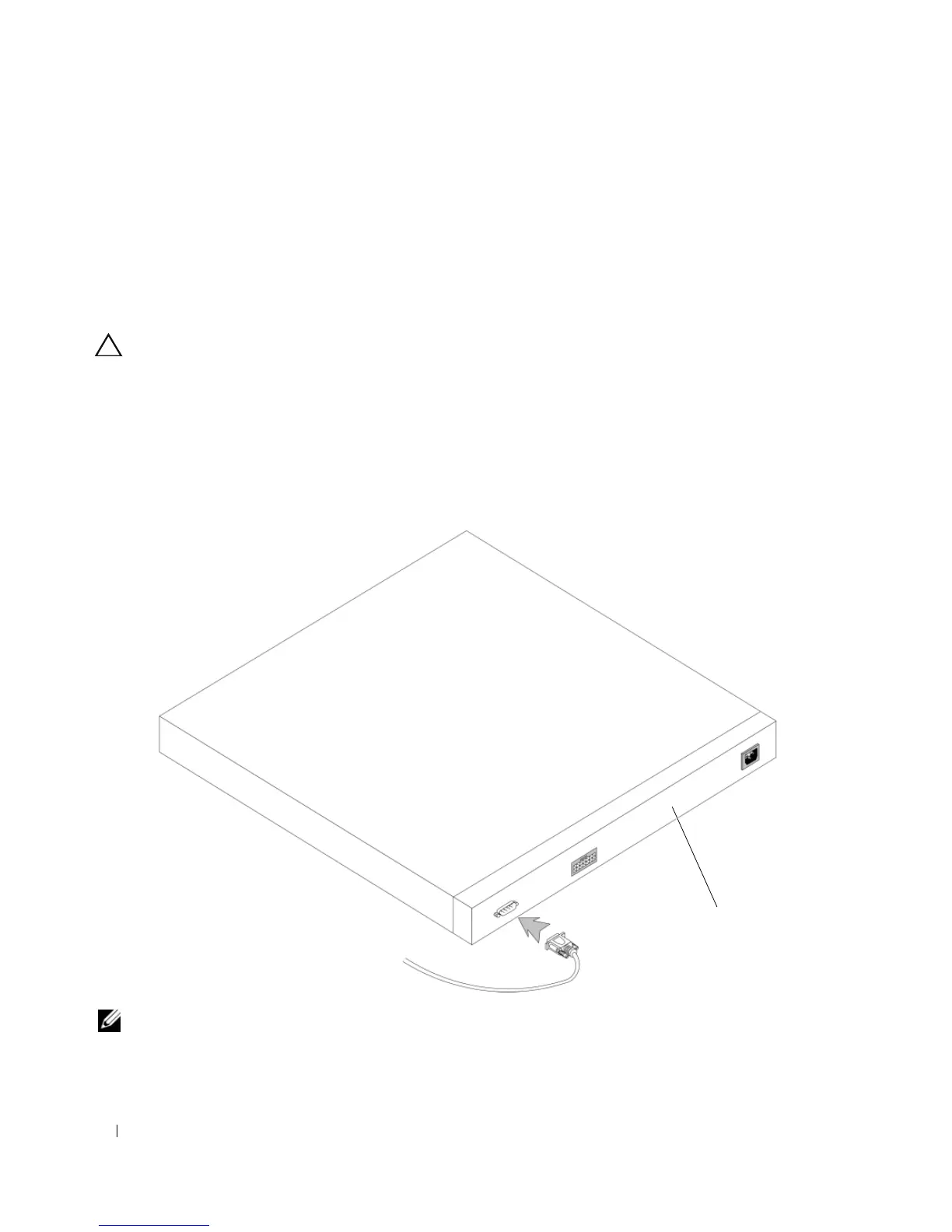

Figure 3-7. Connecting to PowerConnect 35xx Series Systems Console Port
NOTE: A console can be connected to the Console port on any unit in the stack, but stack management is
performed only from the stack master (unit ID 1 or 2).
Back Panel
To VT100
Terminal
To Next Page
