Dell PowerConnect 8024 User Manual

126 Setting Basic Network Information
Configuring Basic Network Information (Web)
This section provides information about the OpenManage Switch
Administrator pages for configuring and monitoring basic network
information on the PowerConnect 8000/8100-series switch. For details about
the fields on a page, click at the top of the page.
Out-of-Band Interface
Use the Out of Band Interface page to assign the Out of Band Interface IP
address and subnet mask or to enable/disable the DHCP client for address
information assignment. DHCP is enabled by default on the OOB interface.
To display the Out of Band Interface page, click System
→ IP Addressing →
Out of Band Interface in the navigation panel.

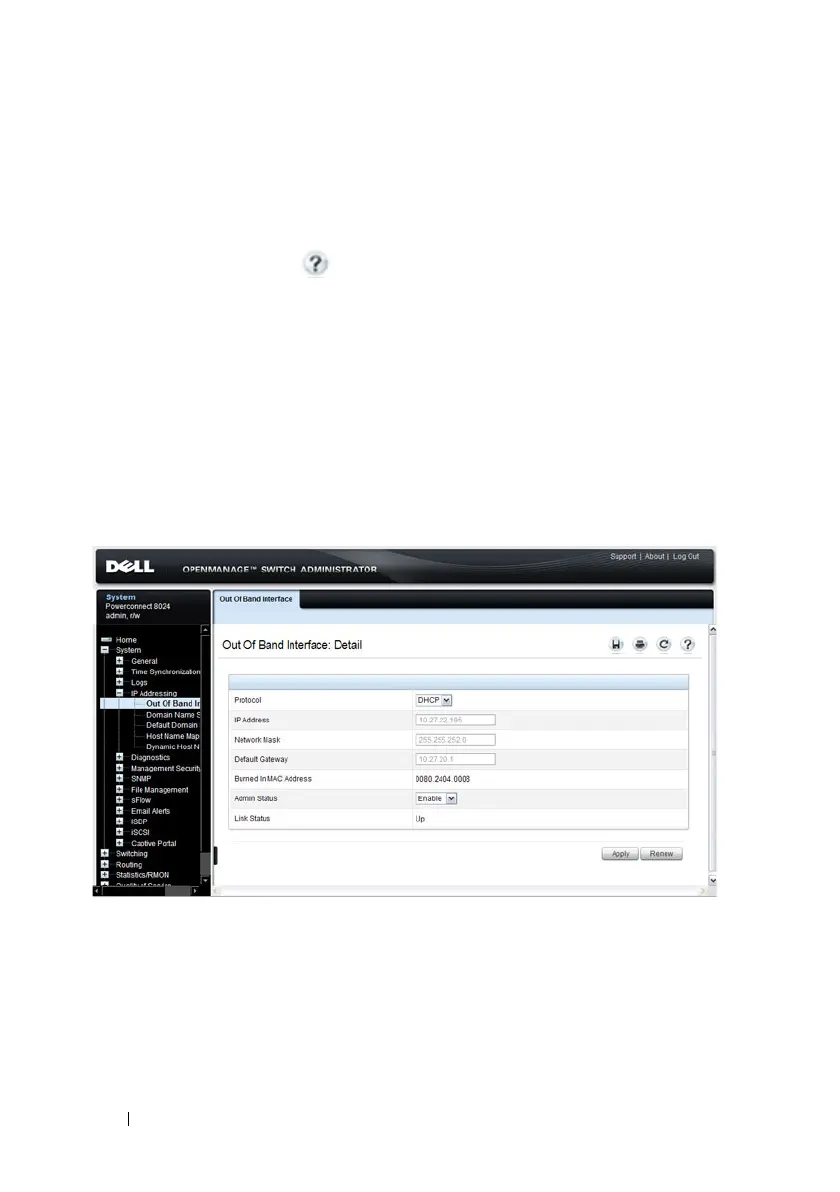

Figure 7-1. Out of Band Interface
To enable the DHCP client and allow a DHCP server on your network to
automatically assign the network information to the OOB interface, select
DHCP from the Protocol menu. If you statically assign the network
information, make sure the Protocol menu is set to None.

Dell PowerConnect 8024 Specifications

General

Switching Capacity	480 Gbps
Stackable	Yes
Device Type	Switch
Enclosure Type	Rack-mountable
Power Redundancy	Optional
Width	17.3 in
Height	1.7 in
Jumbo Frame Support	Yes
Ports	24 x 10 Gigabit SFP+
Management	Web-based GUI, Command Line Interface (CLI), SNMP
VLAN Support	Yes
Power Supply	Internal
Routing Protocol	Static routing
Features	Quality of Service (QoS), VLAN support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
Operating Temperature	0 to 45 °C
Storage Temperature	-20 to 70 °C
Relative Humidity	10% to 90% (non-condensing)
MAC Address Table Size	32, 000 entries
