Configuring L2 Multicast Features 737
Copying GARP Timer Settings From One Port to Others
To copy GARP timer settings:
1
Select the Copy Parameters From check box, and select the port or LAG
with the settings to apply to other ports or LAGs.
2 In the Ports or LAGs list, select the check box(es) in the Copy To column
that will have the same settings as the port selected in the
Copy
Parameters From
field.
3 Click Apply to copy the settings.
GMRP Parameters
Use the GMRP Parameters page to configure the administrative mode of
GMRP on the switch and on each port or LAG.
To display the GMRP Parameters page, click Switching
→ GARP → GMRP
Parameters in the navigation panel.

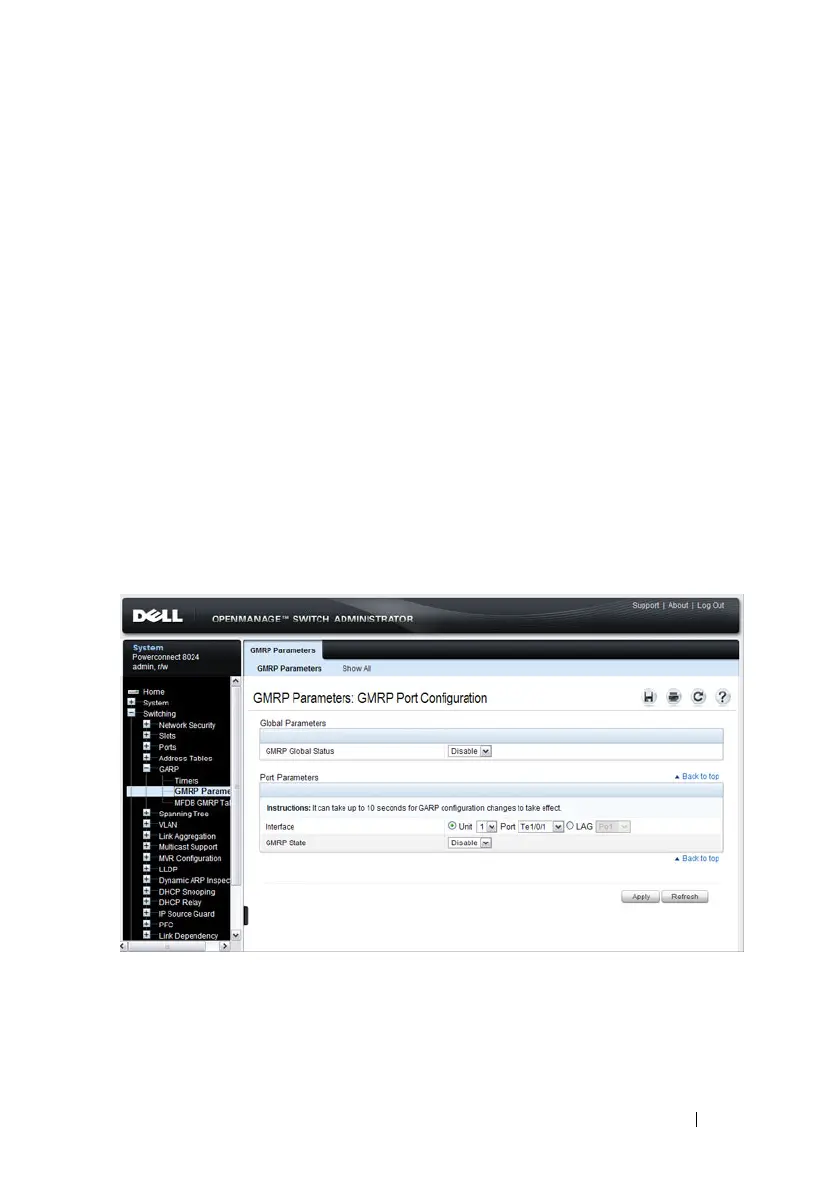

Figure 26-32. GMRP Parameters
Configuring GMRP Parameters on Multiple Ports
To configure GMRP settings:
1
Open the GMRP Parameters page.

Dell PowerConnect 8024 Specifications

General

Switching Capacity	480 Gbps
Stackable	Yes
Device Type	Switch
Enclosure Type	Rack-mountable
Power Redundancy	Optional
Width	17.3 in
Height	1.7 in
Jumbo Frame Support	Yes
Ports	24 x 10 Gigabit SFP+
Management	Web-based GUI, Command Line Interface (CLI), SNMP
VLAN Support	Yes
Power Supply	Internal
Routing Protocol	Static routing
Features	Quality of Service (QoS), VLAN support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
Operating Temperature	0 to 45 °C
Storage Temperature	-20 to 70 °C
Relative Humidity	10% to 90% (non-condensing)
MAC Address Table Size	32, 000 entries
