Dell PowerConnect 8024 User Manual

210 Monitoring and Logging System Information
Monitoring System Information and Configuring
Logging (Web)
This section provides information about the OpenManage Switch
Administrator pages to use to monitor system information and configure
logging on the PowerConnect 8000/8100-series switch. For details about the
fields on a page, click at the top of the page.
Device Information
The Device Information page displays after you successfully log on to the
switch by using the Dell OpenManage Switch Administrator. This page is a
virtual representation of the switch front panel. Use the Device Information
page to view information about the port status or system status. Click on a
port to access the Port Configuration page for the selected port.
To display the Device Information page, click Home in the navigation panel.

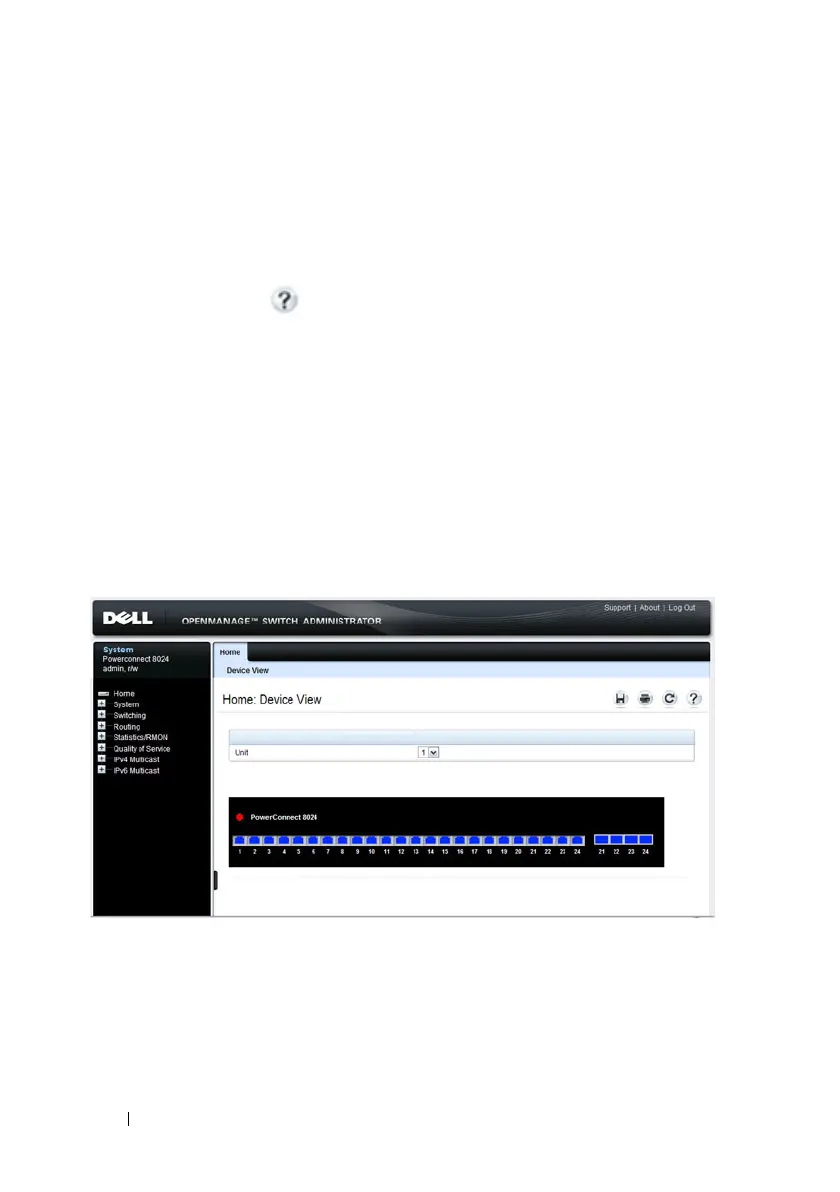

Figure 11-1. Device Information
For more information about the device view features, see "Understanding the
Device View" on page 108.

Dell PowerConnect 8024 Specifications

General

Switching Capacity	480 Gbps
Stackable	Yes
Device Type	Switch
Enclosure Type	Rack-mountable
Power Redundancy	Optional
Width	17.3 in
Height	1.7 in
Jumbo Frame Support	Yes
Ports	24 x 10 Gigabit SFP+
Management	Web-based GUI, Command Line Interface (CLI), SNMP
VLAN Support	Yes
Power Supply	Internal
Routing Protocol	Static routing
Features	Quality of Service (QoS), VLAN support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
Operating Temperature	0 to 45 °C
Storage Temperature	-20 to 70 °C
Relative Humidity	10% to 90% (non-condensing)
MAC Address Table Size	32, 000 entries
