708 Configuring L2 Multicast Features
Bridge Multicast Group
Use the Bridge Multicast Group page to create new multicast service groups
or to modify ports and LAGs assigned to existing multicast service groups.
Attached interfaces display in the Port and LAG tables and reflect the manner
in which each is joined to the Multicast group.
To display the Bridge Multicast Group page, click Switching
→ Multicast
Support
→ Bridge Multicast Group in the navigation menu.

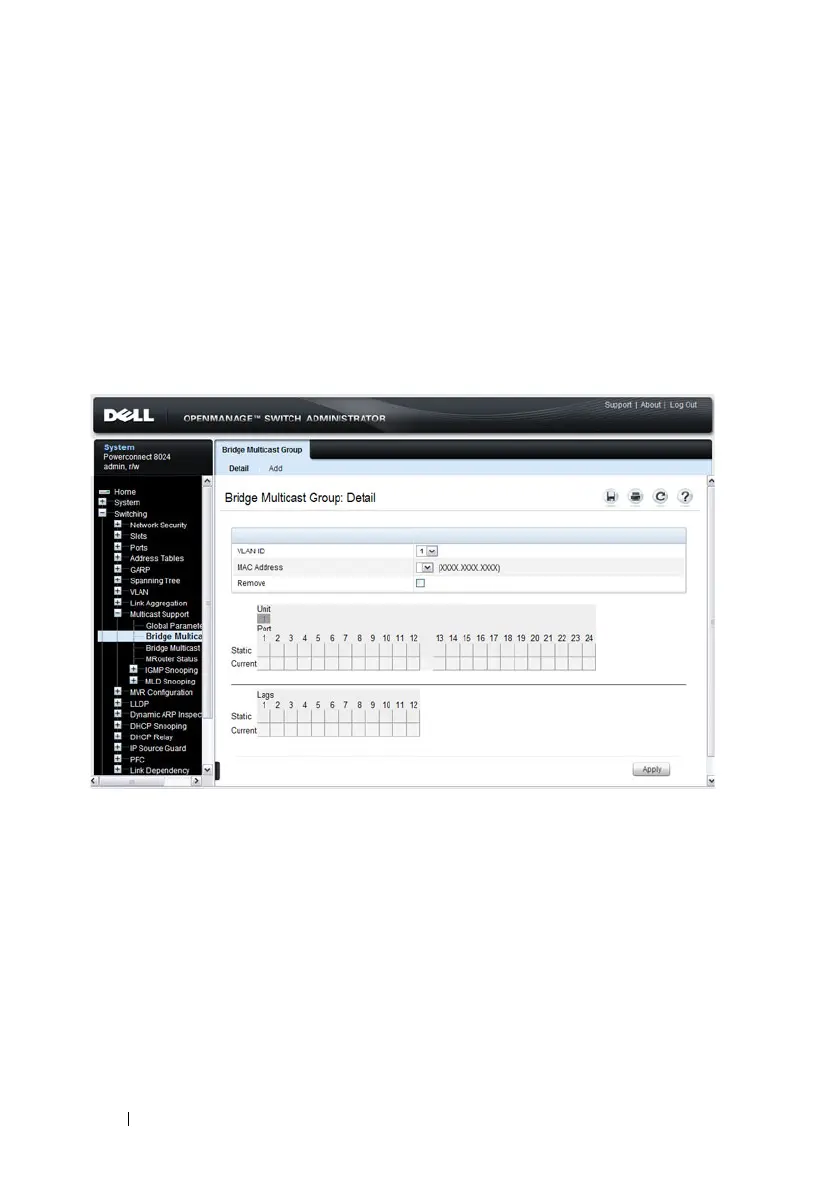

Figure 26-2. Bridge Multicast Group
Understanding the Port and LAG Member Tables
The Bridge Multicast Group tables display which Ports and LAGs are
members of the multicast group, and whether they’re static (S), dynamic (D),
or forbidden (F). The tables have two rows: Static and Current. Only the
Static row is accessible from this page. The Current row is updated when the
Static row is changed and
Apply is clicked.
The Bridge Multicast Group page contains two editable tables:
• Unit and Ports — Displays and assigns multicast group membership to
ports. To assign membership, click in
Static for a specific port. Each click
toggles between S, F, and blank. See Table 26-2 for definitions.
