Dell PowerConnect 8024 User Manual

462 Configuring Port Characteristics
Link Dependency Summary
Use the Link Dependency Summary page to view all link dependencies on
the system and to access the Link Dependency Configuration page. You can
create a maximum of 16 dependency groups. The page displays the groups
whether they have been configured or not.
To display the Link Dependency Summary page, click Switching
→ Link
Dependency
→ Link Dependency Summary in the navigation panel.

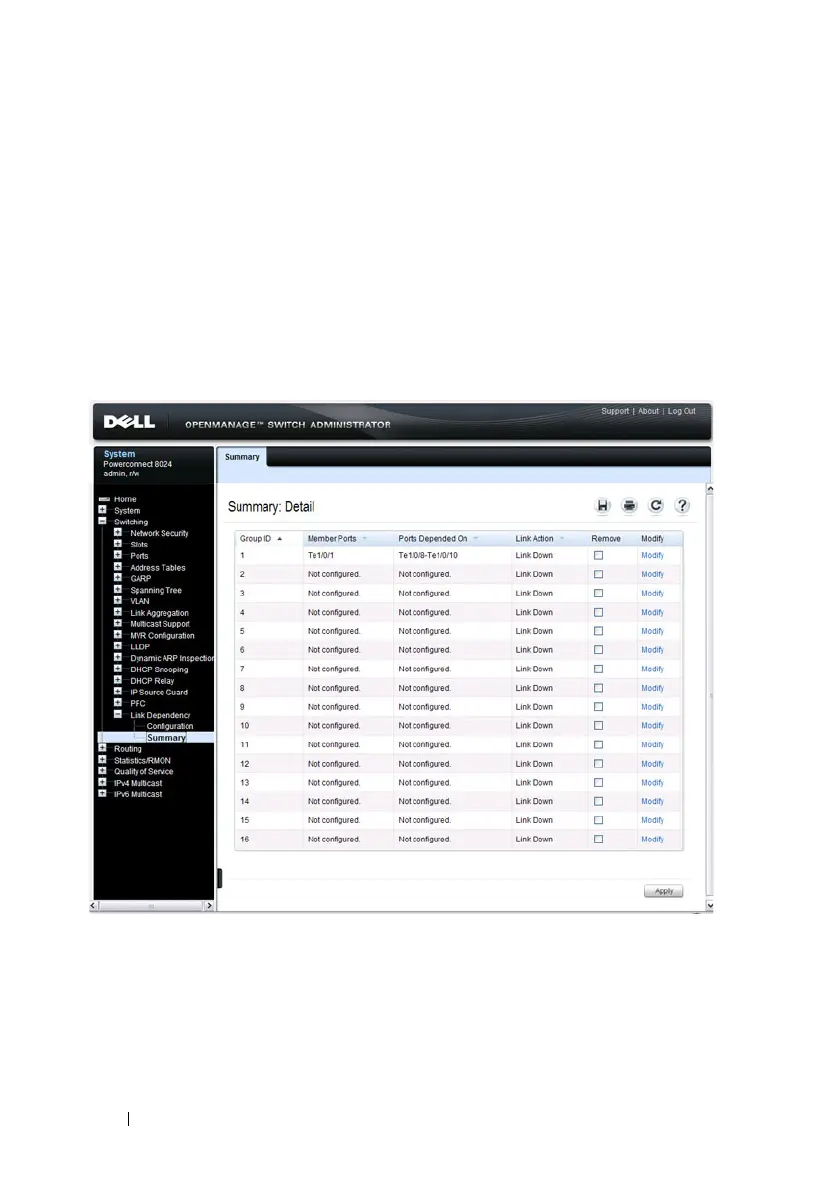

Figure 19-6. Link Dependency Summary
To configure a group, click the Modify link associated with the ID of the
group to configure. Clicking the Modify link takes you to the Link
Dependency Configuration page. The Group ID is automatically selected
based on the link that was clicked.

Dell PowerConnect 8024 Specifications

General

Switching Capacity	480 Gbps
Stackable	Yes
Device Type	Switch
Enclosure Type	Rack-mountable
Power Redundancy	Optional
Width	17.3 in
Height	1.7 in
Jumbo Frame Support	Yes
Ports	24 x 10 Gigabit SFP+
Management	Web-based GUI, Command Line Interface (CLI), SNMP
VLAN Support	Yes
Power Supply	Internal
Routing Protocol	Static routing
Features	Quality of Service (QoS), VLAN support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
Operating Temperature	0 to 45 °C
Storage Temperature	-20 to 70 °C
Relative Humidity	10% to 90% (non-condensing)
MAC Address Table Size	32, 000 entries
