Dell PowerConnect 8024 User Manual

Configuring IP Routing 909
Configured Routes
Use the Configured Routes page to display the routes that have been
manually configured.
To display the page, click Routing
→ Router → Configured Routes in the
navigation panel.

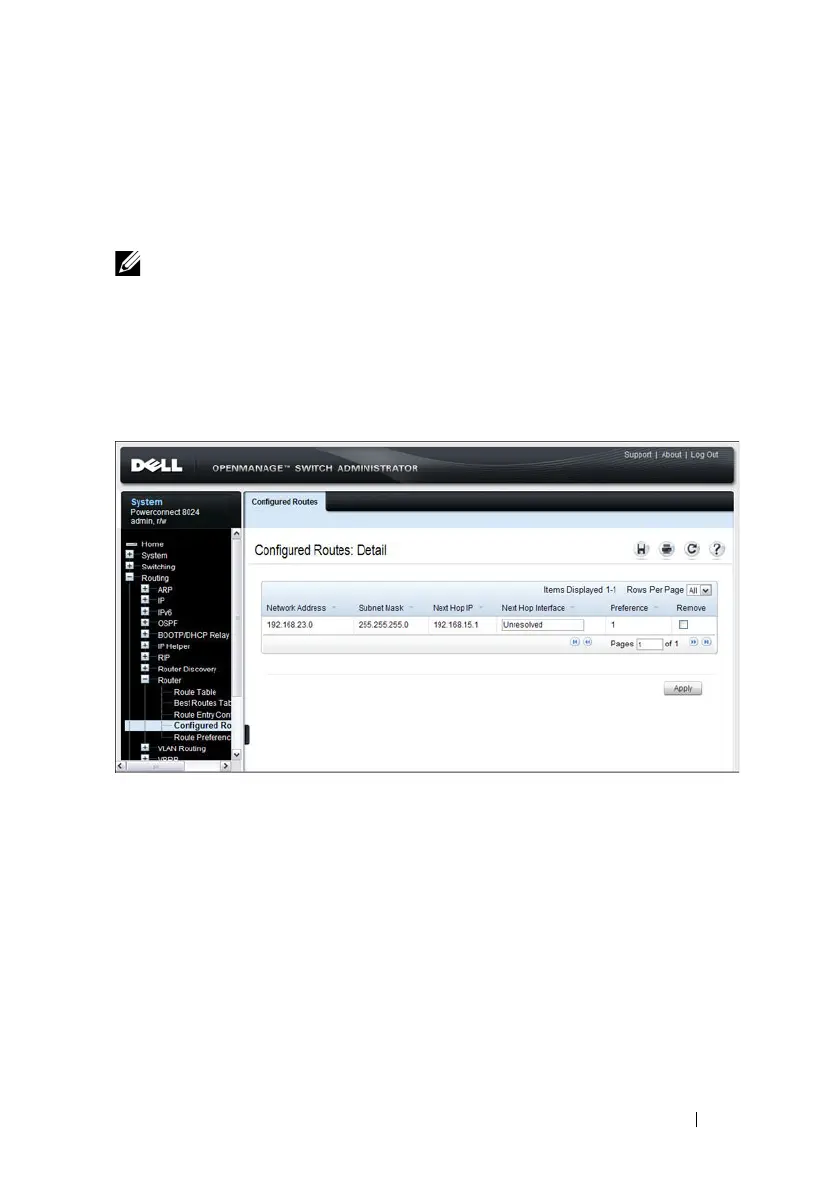

Figure 33-11. Configured Routes
To remove a configured route, select the check box in the Remove column of
the route to delete, and click Apply.
NOTE: For a static reject route, the next hop interface value is Null0. Packets to
the network address specified in static reject routes are intentionally dropped.

Dell PowerConnect 8024 Specifications

General

Switching Capacity	480 Gbps
Stackable	Yes
Device Type	Switch
Enclosure Type	Rack-mountable
Power Redundancy	Optional
Width	17.3 in
Height	1.7 in
Jumbo Frame Support	Yes
Ports	24 x 10 Gigabit SFP+
Management	Web-based GUI, Command Line Interface (CLI), SNMP
VLAN Support	Yes
Power Supply	Internal
Routing Protocol	Static routing
Features	Quality of Service (QoS), VLAN support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
Operating Temperature	0 to 45 °C
Storage Temperature	-20 to 70 °C
Relative Humidity	10% to 90% (non-condensing)
MAC Address Table Size	32, 000 entries
