416 Configuring Captive Portal

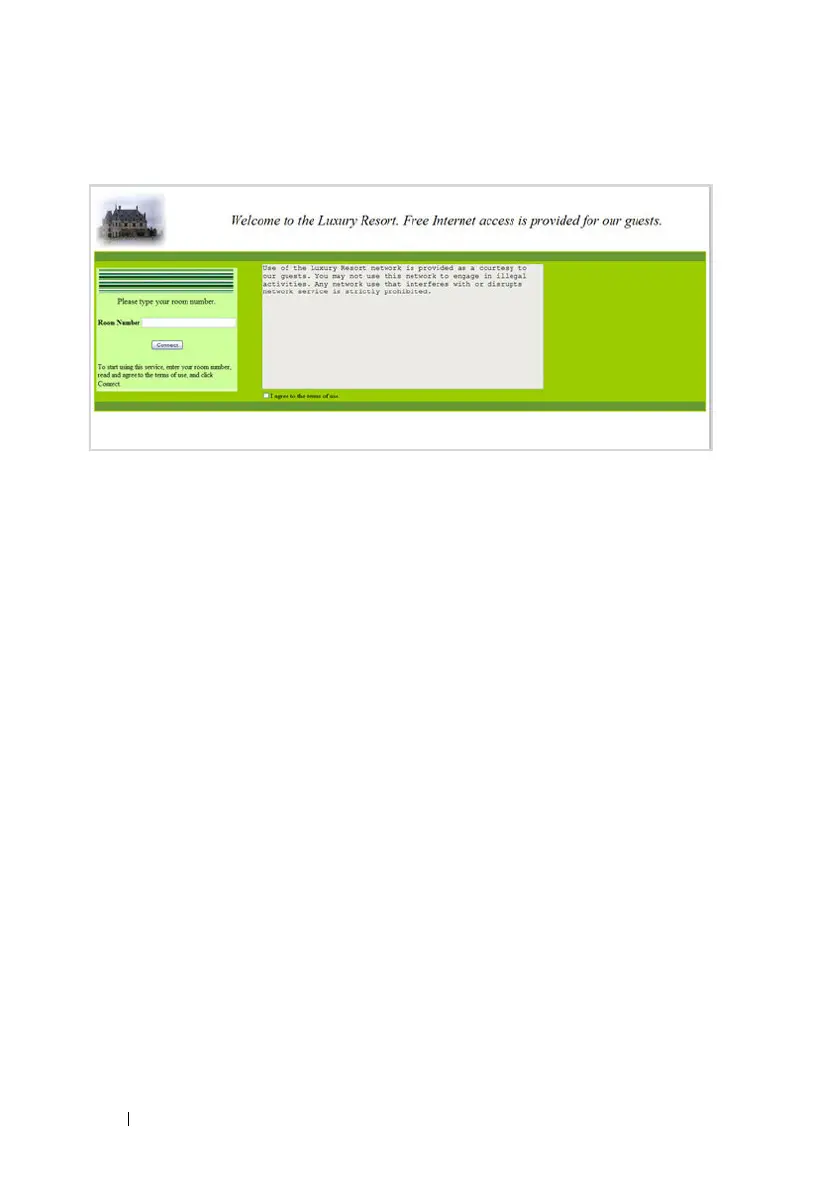

Figure 18-2. Customized Captive Portal Welcome Screen
How Does Captive Portal Work?
When a port is enabled for Captive Portal, all the traffic coming onto the port
from the unverified clients are dropped except for the ARP, DHCP, DNS and
NETBIOS packets. These packets are allowed to be forwarded by the switch
so that the unverified clients can get an IP address and are able to resolve the
hostname or domain names. Data traffic from verified clients goes through as
expected. If an unverified client opens a web browser and tries to connect to
the network, the Captive Portal redirects all the HTTP/HTTPS traffic from
the unverified clients to the authenticating server on the switch. A Captive
Portal web page is sent back to the unverified client. If the verification mode
for the Captive Portal associated with the port is Guest, the client can be
verified without providing authentication information. If the verification
mode is Local or RADIUS, the client must provide credentials that are
compared against the information in the Local or RADIUS client database.
After the user successfully provides the required information, the Captive
Portal feature grants access to the network.

Dell PowerConnect 8024 Specifications

General

Switching Capacity	480 Gbps
Stackable	Yes
Device Type	Switch
Enclosure Type	Rack-mountable
Power Redundancy	Optional
Width	17.3 in
Height	1.7 in
Jumbo Frame Support	Yes
Ports	24 x 10 Gigabit SFP+
Management	Web-based GUI, Command Line Interface (CLI), SNMP
VLAN Support	Yes
Power Supply	Internal
Routing Protocol	Static routing
Features	Quality of Service (QoS), VLAN support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
Operating Temperature	0 to 45 °C
Storage Temperature	-20 to 70 °C
Relative Humidity	10% to 90% (non-condensing)
MAC Address Table Size	32, 000 entries
