Dell PowerConnect 8024 User Manual

524 Configuring Access Control Lists
MAC ACL Configuration
Use the MAC ACL Configuration page to define a MAC-based ACL.
To display the MAC ACL Configuration page, click Switching
→ Network
Security
→ Access Control Lists → MAC Access Control Lists →
Configuration in the navigation panel.

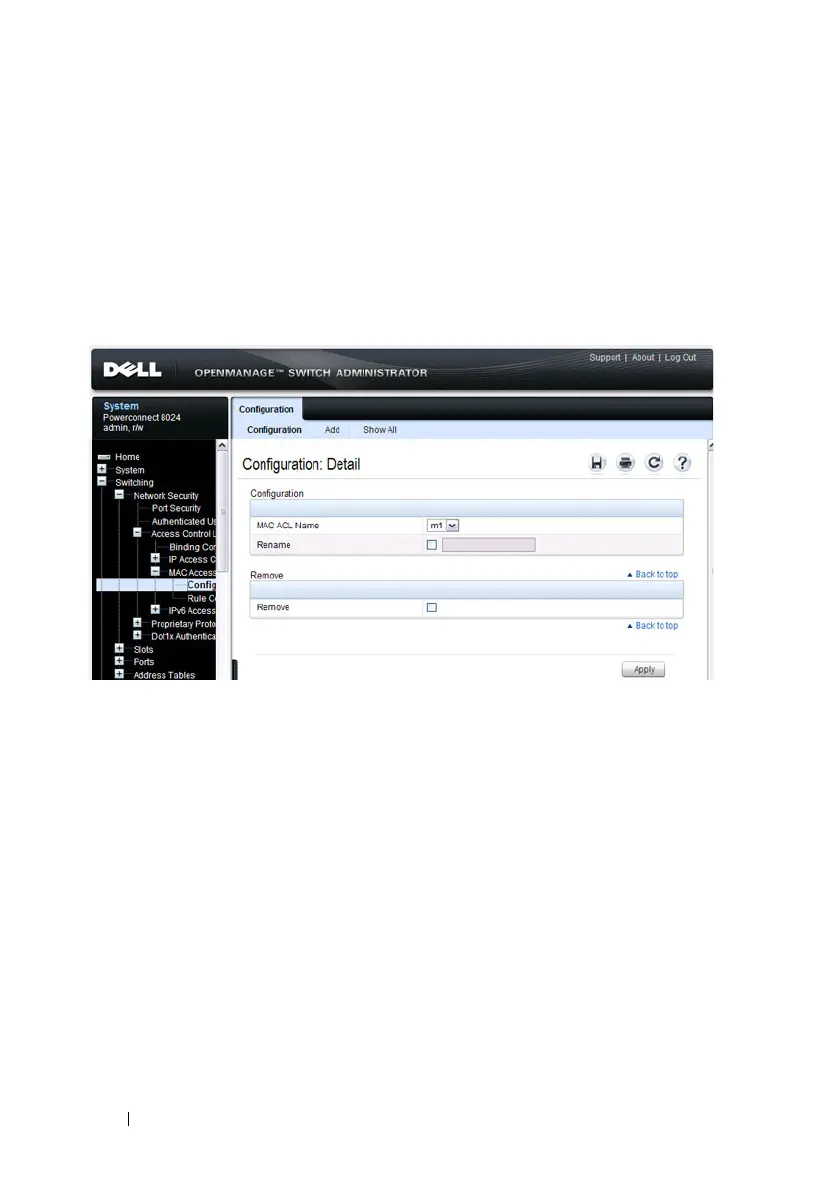

Figure 21-5. MAC ACL Configuration
Adding a MAC ACL
To ad d a MAC ACL:
1
Open the MAC ACL Configuration page.
2 Click Add to display the Add MAC ACL page.
3 Specify an ACL name.

Dell PowerConnect 8024 Specifications

General

Switching Capacity	480 Gbps
Stackable	Yes
Device Type	Switch
Enclosure Type	Rack-mountable
Power Redundancy	Optional
Width	17.3 in
Height	1.7 in
Jumbo Frame Support	Yes
Ports	24 x 10 Gigabit SFP+
Management	Web-based GUI, Command Line Interface (CLI), SNMP
VLAN Support	Yes
Power Supply	Internal
Routing Protocol	Static routing
Features	Quality of Service (QoS), VLAN support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
Operating Temperature	0 to 45 °C
Storage Temperature	-20 to 70 °C
Relative Humidity	10% to 90% (non-condensing)
MAC Address Table Size	32, 000 entries
