964 Configuring OSPF and OSPFv3
OSPF Neighbor Configuration
Use the Neighbor Configuration page to display the OSPF neighbor
configuration for a selected neighbor ID. When a particular neighbor ID is
specified, detailed information about a neighbor is given. The information
below is only displayed if OSPF is enabled and the interface has a neighbor.
The IP address is the IP address of the neighbor.
To display the page, click Routing
→ OSPF → Neighbor Configuration in
the navigation panel.

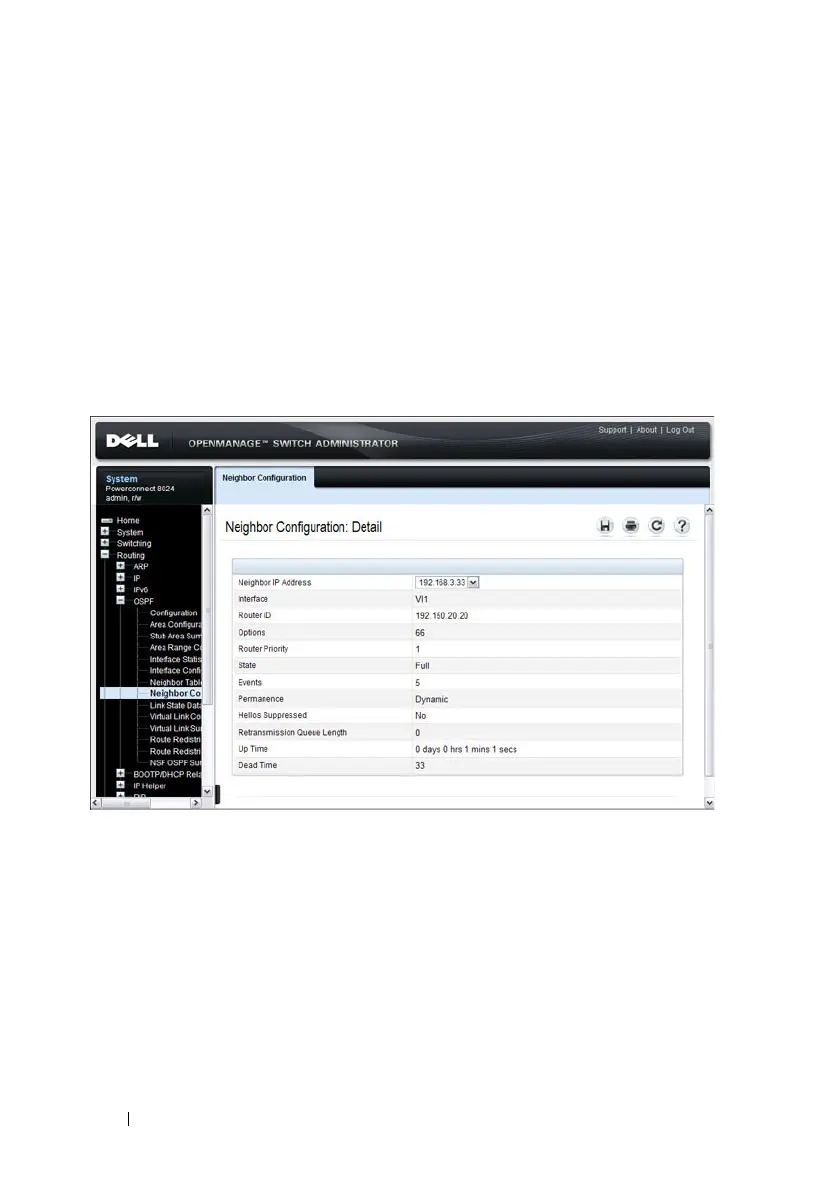

Figure 35-10. OSPF Neighbor Configuration

Dell PowerConnect 8024 Specifications

General

Switching Capacity	480 Gbps
Stackable	Yes
Device Type	Switch
Enclosure Type	Rack-mountable
Power Redundancy	Optional
Width	17.3 in
Height	1.7 in
Jumbo Frame Support	Yes
Ports	24 x 10 Gigabit SFP+
Management	Web-based GUI, Command Line Interface (CLI), SNMP
VLAN Support	Yes
Power Supply	Internal
Routing Protocol	Static routing
Features	Quality of Service (QoS), VLAN support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
Operating Temperature	0 to 45 °C
Storage Temperature	-20 to 70 °C
Relative Humidity	10% to 90% (non-condensing)
MAC Address Table Size	32, 000 entries
