Dell PowerConnect 8024 User Manual

Configuring OSPF and OSPFv3 979
OSPFv3 Neighbors
Use the Neighbors page to display the OSPF neighbor configuration for a
selected neighbor ID. When a particular neighbor ID is specified, detailed
information about that neighbor is given. Neighbor information only displays
if OSPF is enabled and the interface has a neighbor. The IP address is the IP
address of the neighbor.
To display the page, click IPv6
→ OSPFv3 → Neighbors in the navigation
panel.

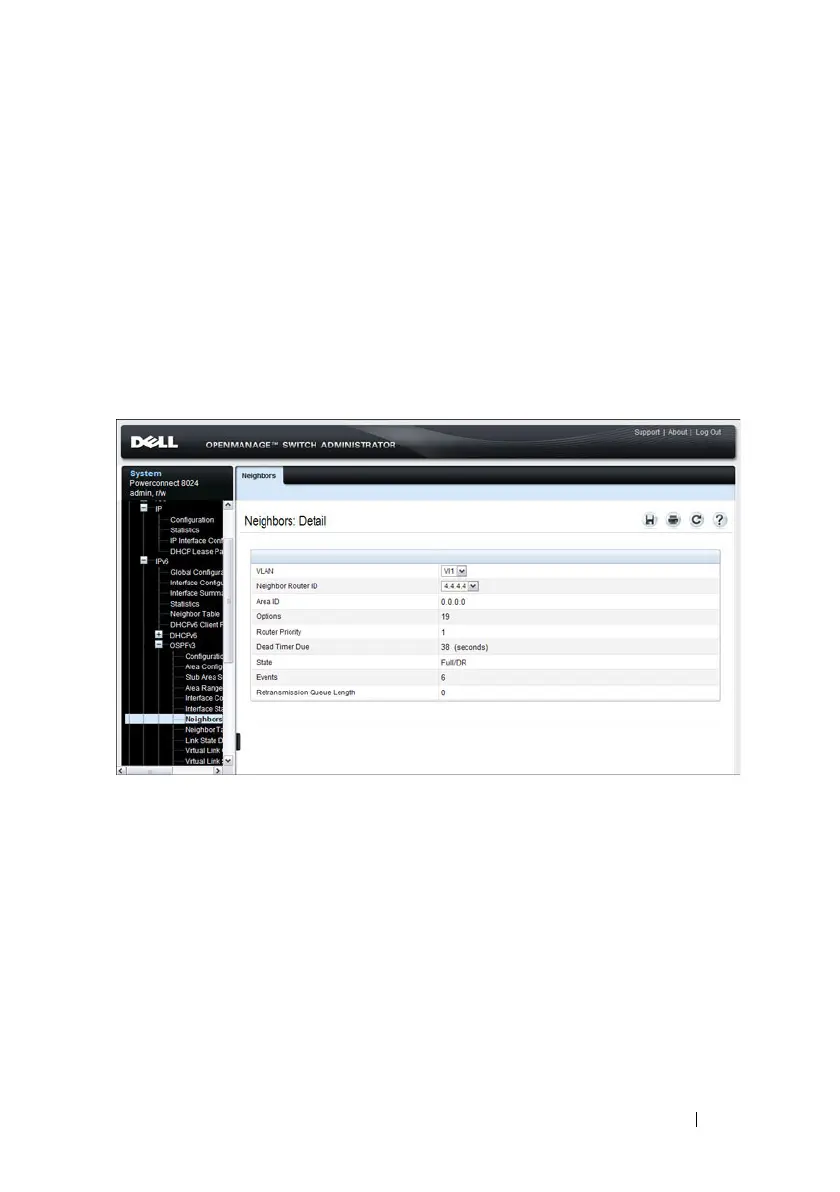

Figure 35-26. OSPFv3 Neighbors

Dell PowerConnect 8024 Specifications

General

Switching Capacity	480 Gbps
Stackable	Yes
Device Type	Switch
Enclosure Type	Rack-mountable
Power Redundancy	Optional
Width	17.3 in
Height	1.7 in
Jumbo Frame Support	Yes
Ports	24 x 10 Gigabit SFP+
Management	Web-based GUI, Command Line Interface (CLI), SNMP
VLAN Support	Yes
Power Supply	Internal
Routing Protocol	Static routing
Features	Quality of Service (QoS), VLAN support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
Operating Temperature	0 to 45 °C
Storage Temperature	-20 to 70 °C
Relative Humidity	10% to 90% (non-condensing)
MAC Address Table Size	32, 000 entries
