Dell PowerConnect 8024 User Manual

434 Configuring Captive Portal
Captive Portal Activation and Activity Status
The Captive Portal Activation and Activity Status page provides information
about each Captive Portal configured on the switch.
The Captive Portal Activation and Activity Status page has a drop-down
menu that contains all captive portals configured on the switch. When you
select a captive portal, the activation and activity status for that portal
displays.
To display the Activation and Activity Status page, click System
→ Captive
Portal
→ Status → Activation and Activity Status.

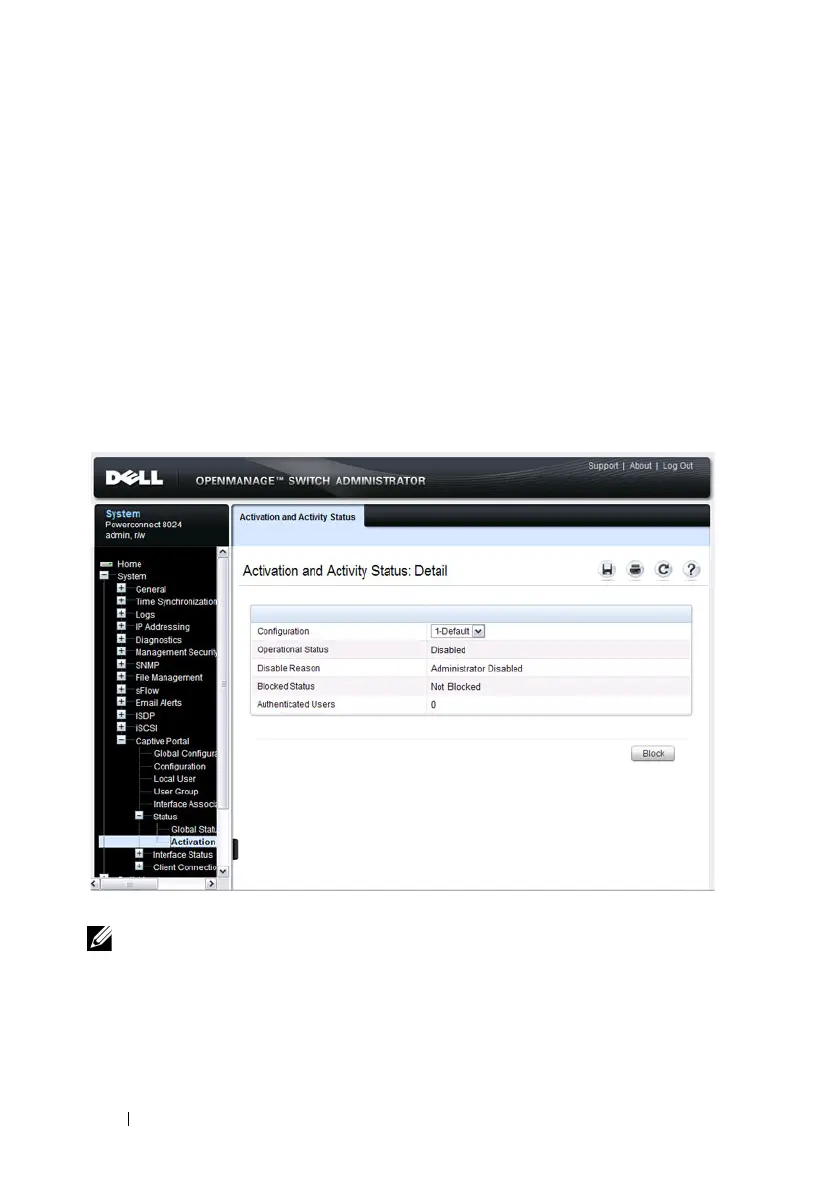

Figure 18-20. Captive Portal Activation and Activity Status
NOTE: Use the Block and Unblock buttons to control the blocked status. If the
Captive Portal is blocked, users cannot gain access to the network through the
Captive Portal. Use this function to temporarily protect the network during
unexpected events, such as denial of service attacks.

Dell PowerConnect 8024 Specifications

General

Switching Capacity	480 Gbps
Stackable	Yes
Device Type	Switch
Enclosure Type	Rack-mountable
Power Redundancy	Optional
Width	17.3 in
Height	1.7 in
Jumbo Frame Support	Yes
Ports	24 x 10 Gigabit SFP+
Management	Web-based GUI, Command Line Interface (CLI), SNMP
VLAN Support	Yes
Power Supply	Internal
Routing Protocol	Static routing
Features	Quality of Service (QoS), VLAN support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
Operating Temperature	0 to 45 °C
Storage Temperature	-20 to 70 °C
Relative Humidity	10% to 90% (non-condensing)
MAC Address Table Size	32, 000 entries
