Dell PowerConnect 8024 User Manual

582 Configuring VLANs
Adding a Protocol Group
To add a protocol group:
1
Open the Protocol Group page.
2
Click Add to display the Add Protocol Group page.
3 Create a name for the group and associate a VLAN with the group.

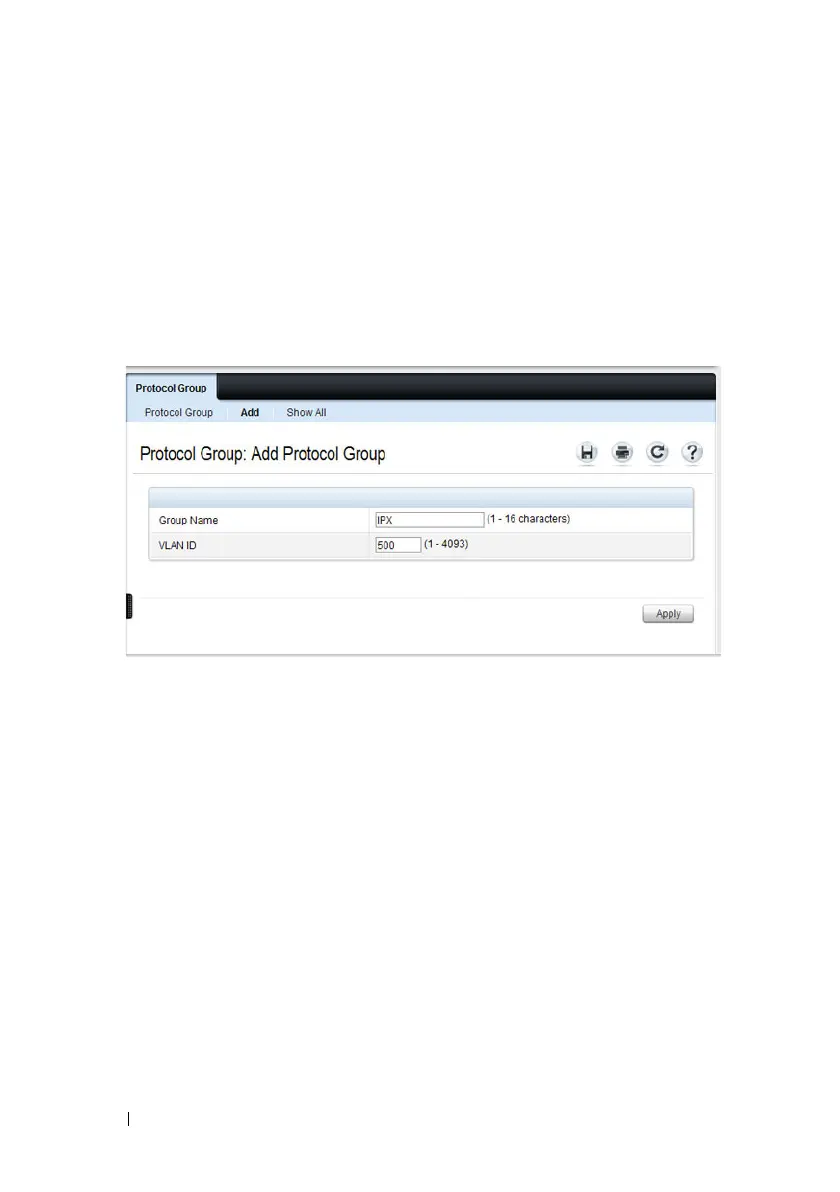

Figure 22-19. Add Protocol Group
4 Click Apply .
5 Click Protocol Group to return to the main Protocol Group page.
6 From the Group ID field, select the group to configure.
7 In the Protocol Settings table, select the protocol and interfaces to
associate with the protocol-based VLAN.
In Figure 22-20, the Protocol Group 1 (named IPX) is associated with the
IPX protocol and ports 14–16. Ports 20-22 are selected in
Available Ports
list. After clicking the right arrow, they will be added to the
Selected Ports
list.

Dell PowerConnect 8024 Specifications

General

Switching Capacity	480 Gbps
Stackable	Yes
Device Type	Switch
Enclosure Type	Rack-mountable
Power Redundancy	Optional
Width	17.3 in
Height	1.7 in
Jumbo Frame Support	Yes
Ports	24 x 10 Gigabit SFP+
Management	Web-based GUI, Command Line Interface (CLI), SNMP
VLAN Support	Yes
Power Supply	Internal
Routing Protocol	Static routing
Features	Quality of Service (QoS), VLAN support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
Operating Temperature	0 to 45 °C
Storage Temperature	-20 to 70 °C
Relative Humidity	10% to 90% (non-condensing)
MAC Address Table Size	32, 000 entries
