Dell PowerConnect 8024 User Manual

970 Configuring OSPF and OSPFv3
NSF OSPF Configuration
Use the NSF OSPF Configuration page to configure the non-stop forwarding
(NSF) support mode and to view NSF summary information for the OSPF
feature. NSF is a feature used in switch stacks to maintain switching and
routing functions in the event of a stack unit failure. For information about
NSF, see "What is Nonstop Forwarding?" on page 150 in the Managing a
Switch Stack chapter.
To display the page, click Routing
→ OSPF → NSF OSPF Configuration in
the navigation panel.

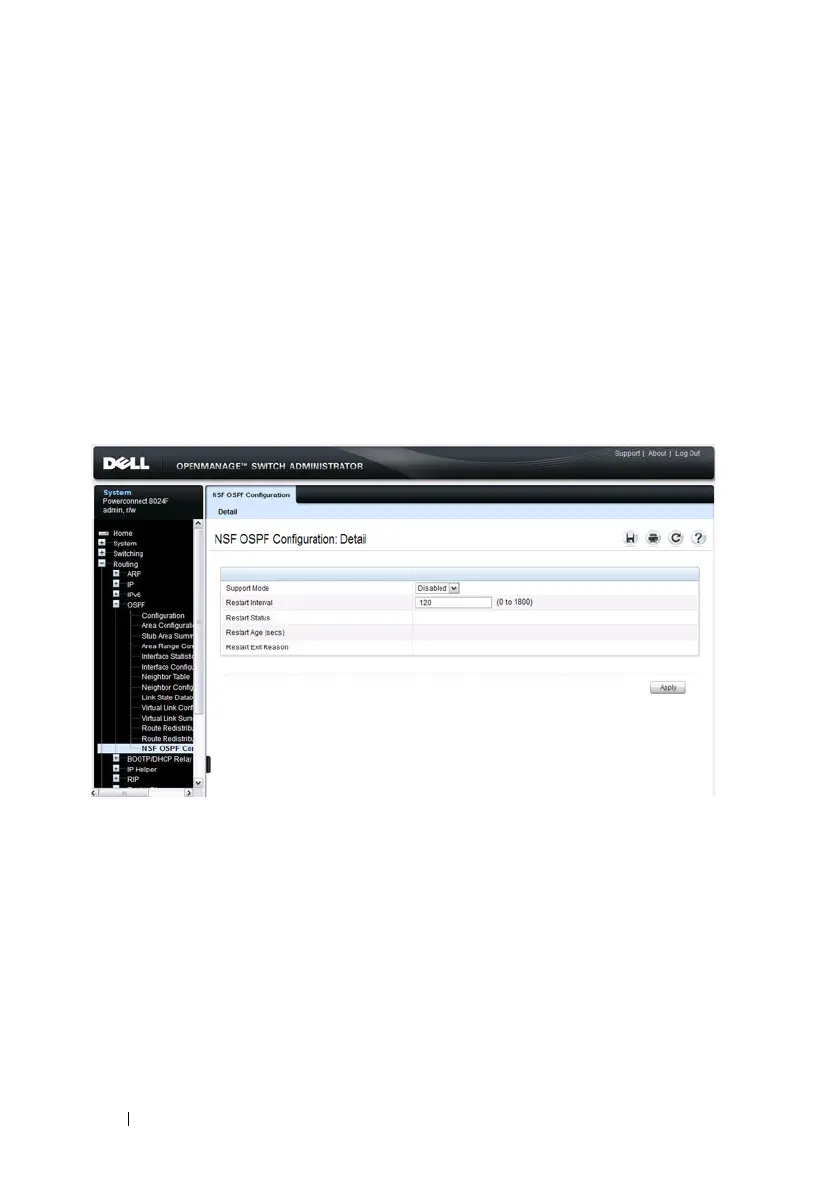

Figure 35-17. NSF OSPF Configuration

Dell PowerConnect 8024 Specifications

General

Switching Capacity	480 Gbps
Stackable	Yes
Device Type	Switch
Enclosure Type	Rack-mountable
Power Redundancy	Optional
Width	17.3 in
Height	1.7 in
Jumbo Frame Support	Yes
Ports	24 x 10 Gigabit SFP+
Management	Web-based GUI, Command Line Interface (CLI), SNMP
VLAN Support	Yes
Power Supply	Internal
Routing Protocol	Static routing
Features	Quality of Service (QoS), VLAN support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
Operating Temperature	0 to 45 °C
Storage Temperature	-20 to 70 °C
Relative Humidity	10% to 90% (non-condensing)
MAC Address Table Size	32, 000 entries
