Dell PowerConnect 8024 User Manual

158 Managing a Switch Stack
Stack Firmware Synchronization
Use the Stack Firmware Synchronization page to control whether the
firmware image on a new stack member can be automatically upgraded or
downgraded to match the firmware image of the stack master.
To display the Stack Firmware Synchronization page, click System
→ Stack
Management
→ Stack Firmware Synchronization in the navigation panel.

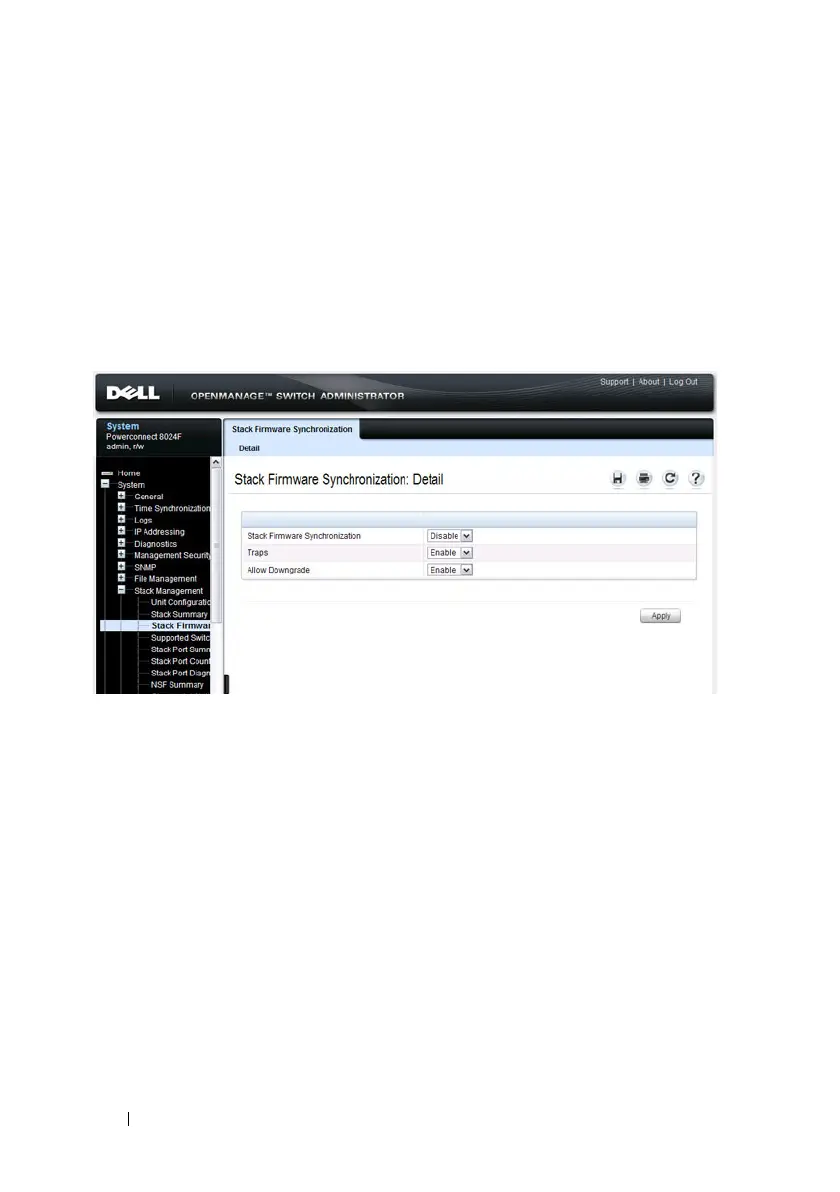

Figure 9-5. Stack Firmware Synchronization

Dell PowerConnect 8024 Specifications

General

Switching Capacity	480 Gbps
Stackable	Yes
Device Type	Switch
Enclosure Type	Rack-mountable
Power Redundancy	Optional
Width	17.3 in
Height	1.7 in
Jumbo Frame Support	Yes
Ports	24 x 10 Gigabit SFP+
Management	Web-based GUI, Command Line Interface (CLI), SNMP
VLAN Support	Yes
Power Supply	Internal
Routing Protocol	Static routing
Features	Quality of Service (QoS), VLAN support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
Operating Temperature	0 to 45 °C
Storage Temperature	-20 to 70 °C
Relative Humidity	10% to 90% (non-condensing)
MAC Address Table Size	32, 000 entries
