Dell PowerConnect 8024 User Manual

Setting Basic Network Information 127
IP Interface Configuration (Default VLAN IP Address)
Use the IP Interface Configuration page to assign the Default VLAN IP
address and Subnet Mask, the Default Gateway IP address, and to assign the
boot protocol.
To display the IP Interface Configuration page, click Routing
→ IP →
IP Interface Configuration in the navigation panel.

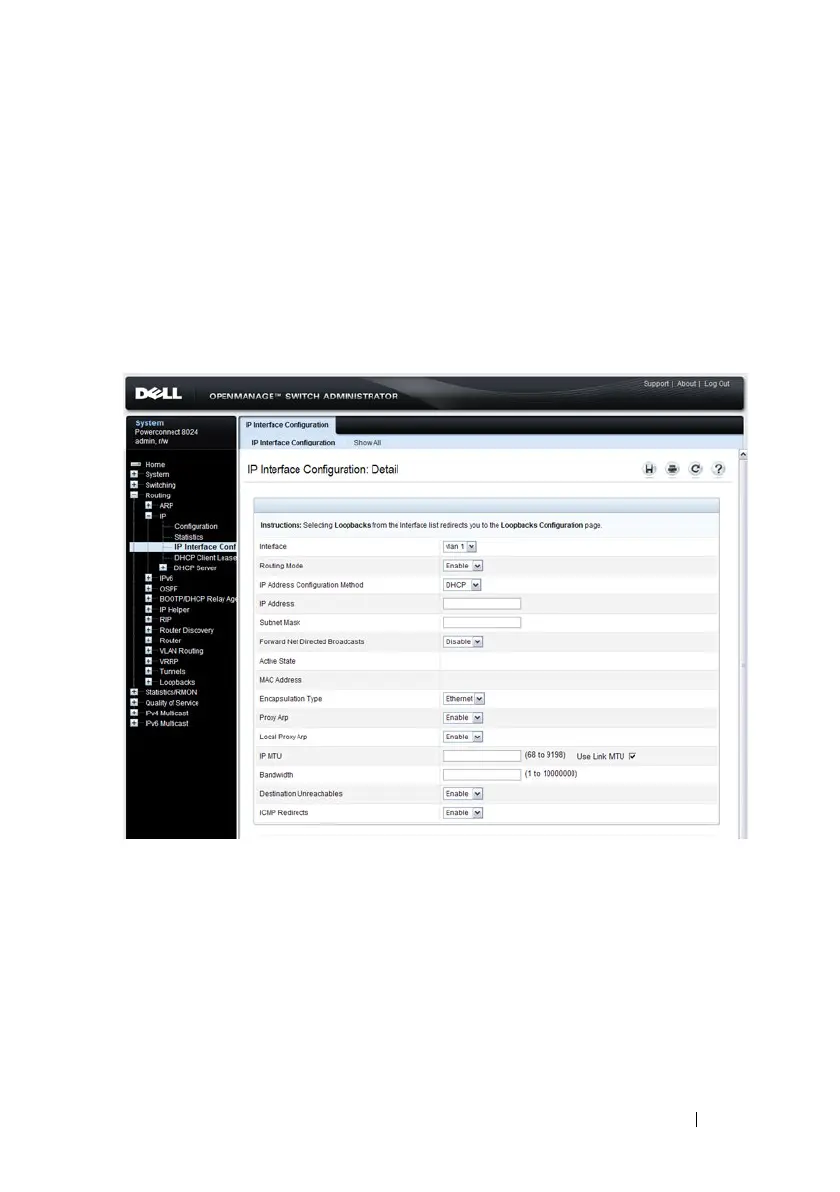

Figure 7-2. IP Interface Configuration (Default VLAN)
Assigning Network Information to the Default VLAN
To assign an IP Address and subnet mask to the default VLAN:
1
From the Interface menu, select VLAN 1.
2 From the Routing Mode field, select Enable .
3 From the IP Address Configuration Method field specify whether to
assign a static IP address (Manual) or use DHCP for automatic address
assignment.

Dell PowerConnect 8024 Specifications

General

Switching Capacity	480 Gbps
Stackable	Yes
Device Type	Switch
Enclosure Type	Rack-mountable
Power Redundancy	Optional
Width	17.3 in
Height	1.7 in
Jumbo Frame Support	Yes
Ports	24 x 10 Gigabit SFP+
Management	Web-based GUI, Command Line Interface (CLI), SNMP
VLAN Support	Yes
Power Supply	Internal
Routing Protocol	Static routing
Features	Quality of Service (QoS), VLAN support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
Operating Temperature	0 to 45 °C
Storage Temperature	-20 to 70 °C
Relative Humidity	10% to 90% (non-condensing)
MAC Address Table Size	32, 000 entries
