508 Configuring Port and System Security
Port Security
Use the Port Security page to enable MAC locking on a per-port basis. When
a port is locked, you can limit the number of source MAC addresses that are
allowed to transmit traffic on the port.
To display the Port Security page, click Switching
→ Network Security →
Port Security in the navigation panel.

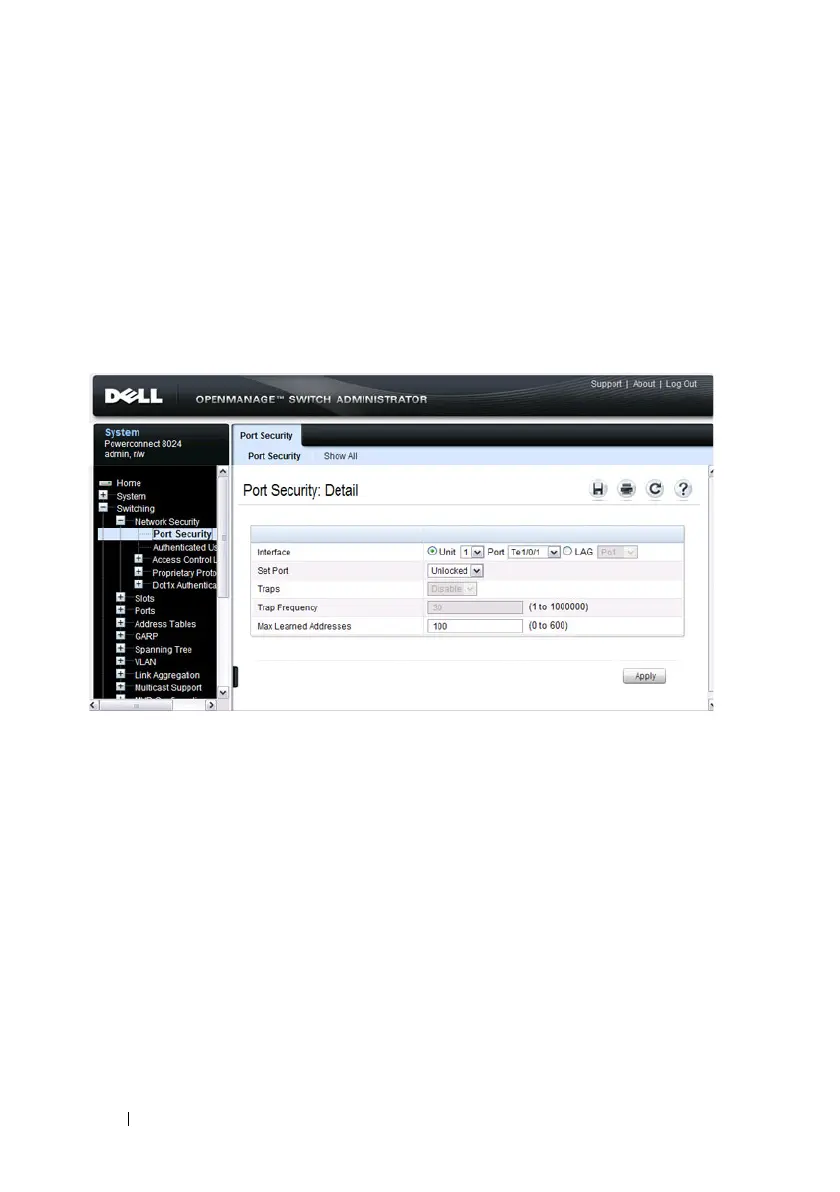

Figure 20-11. Network Security Port Security
Configuring Port Security Settings on Multiple Ports
To configure port security on multiple ports:
1
Open the Port Security page.
2 Click Show All to display the Port Security Ta bl e page.
3 In the Ports list, select the check box in the Edit column for the port to
configure.
4 Select the desired settings for all ports that are selected for editing.

Dell PowerConnect 8024 Specifications

General

Switching Capacity	480 Gbps
Stackable	Yes
Device Type	Switch
Enclosure Type	Rack-mountable
Power Redundancy	Optional
Width	17.3 in
Height	1.7 in
Jumbo Frame Support	Yes
Ports	24 x 10 Gigabit SFP+
Management	Web-based GUI, Command Line Interface (CLI), SNMP
VLAN Support	Yes
Power Supply	Internal
Routing Protocol	Static routing
Features	Quality of Service (QoS), VLAN support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
Operating Temperature	0 to 45 °C
Storage Temperature	-20 to 70 °C
Relative Humidity	10% to 90% (non-condensing)
MAC Address Table Size	32, 000 entries
