Talker
™
Performance Setup
The GNX4’s built-in Talker effect creates a talk box effect. To create this effect you must plug a
microphone into the GNX4’s mic input and select one of the five Talker types in the Whammy
™
/IPS/Talk
module of a preset. Then as you play your guitar talk into the microphone to emulate the talk box effect.

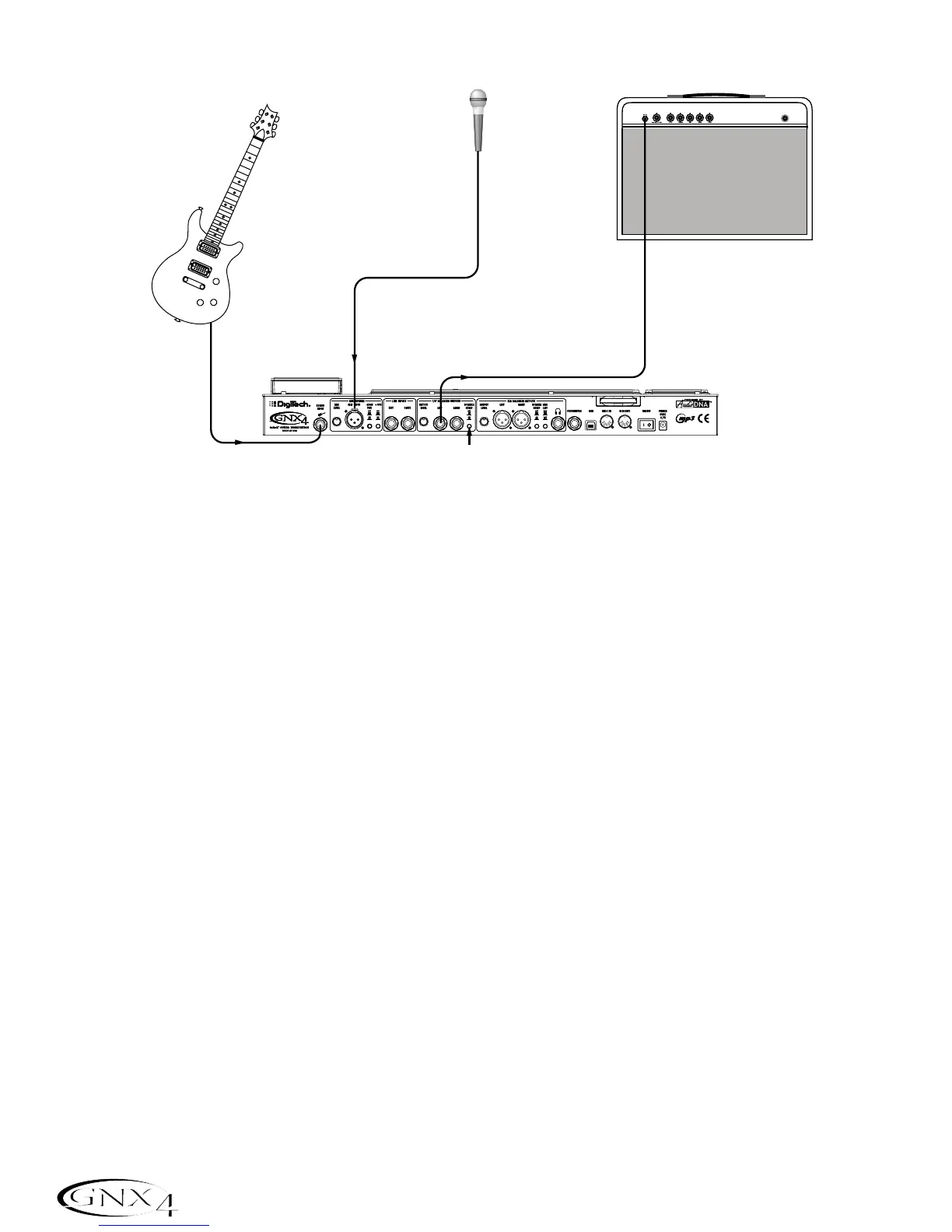

The Talker can be used with any output setup, but for this diagram it will be shown in conjunction with a
mono amp rig.
1.Connect your guitar to the GNX4’s Guitar Input.
2.Connect a single mono instrument cable from the Left 1/4” Line Output of the GNX4 to the
instrument input or the effect return on your amplifier and switch the 1/4” Balanced Outputs Speaker
Compensation to the OFF position.
3.Connect a microphone to the GNX4’s Mic Input using an XLR cable.
4.Select one of the five Talker types in the Whammy/IPS/Talk module of a preset.
5.Press the GNX4’s OUTPUT SETUP button and select “
MONO 1/4“ as the output mode using the
DATA WHEEL.
6.Use the Mic Level control knob located next to the Mic Input on the GNX4’s rear panel to adjust the
microphone output level. To adjust your microphone input level for optimal use see Optimizing the
Mic Input Level on page 13.
